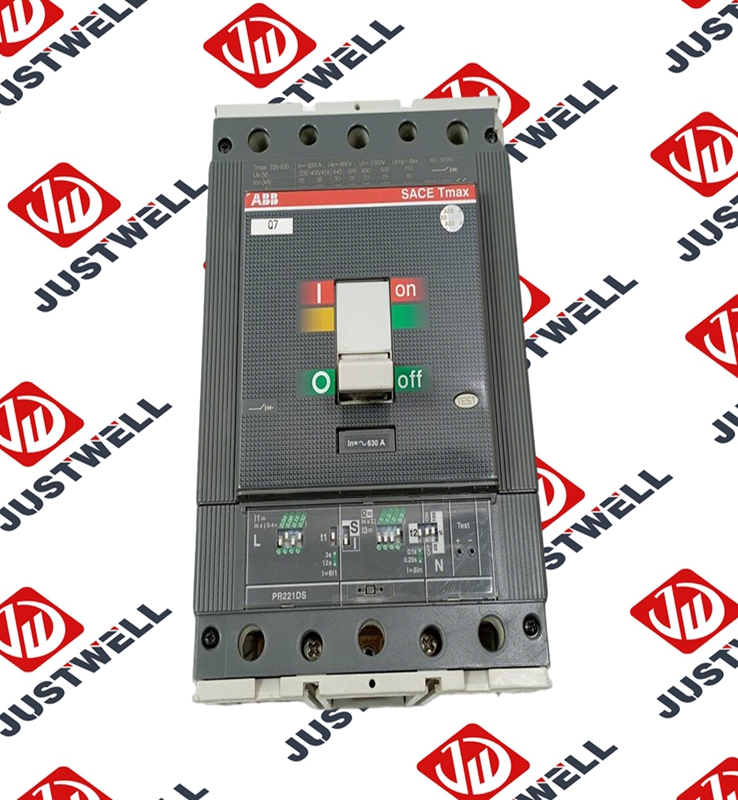

TMAX T5N630 ABB Bailey Analog Input Module
Brand：ABB Model number：TMAX T5N630

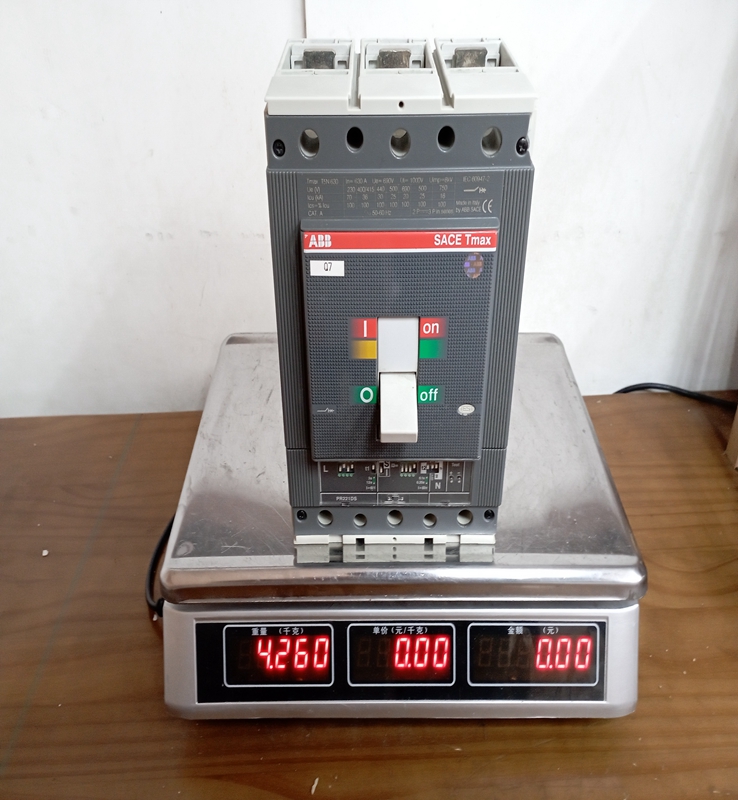

Country of origin: Sweden Product weight：0.55KG
HS code：8517623990
Product Details：
Product Dimensions：
The designation T5N 630 breaks down the product as follows:
T5: Indicates the frame size of the MCCB, a mid-range size within the Tmax family.
N: Denotes the Normal short-circuit breaking performance level.
630: Specifies the maximum Rated Current ($I_n$) of the circuit breaker, which is $630 \text{ A}$.
The T5N 630 is typically supplied as a Fixed type circuit breaker with Front Terminals for easy wiring installation and connection. It is available in both three-pole and four-pole versions for use in three-phase or three-phase plus neutral systems.
Protection is typically provided by either an advanced Electronic Trip Unit (e.g., PR221DS-LS/I, PR222MP) or a simpler Thermal-Magnetic Trip Unit (e.g., TMA). The electronic release options allow for adjustable protection settings, including long-time (overload), short-time (short circuit with delay), and instantaneous (high-level short circuit) functions.
Product Type: Moulded Case Circuit Breaker (MCCB)
Frame Size: T5
Performance Level: N (Normal breaking capacity)
Rated Current ($I_n$): $630 \text{ A}$
Number of Poles: Available as 3-pole or 4-pole
Rated Operational Voltage ($U_e$): Typically up to $690 \text{ V AC}$
Rated Insulation Voltage ($U_i$): $1000 \text{ V}$
Rated Impulse Withstand Voltage ($U_{imp}$): $8 \text{ kV}$
Rated Ultimate Short-Circuit Breaking Capacity ($I_{cu}$): $36 \text{ kA}$ at $400 \text{ V AC}$ (Note: Varies with voltage, typically $70 \text{ kA}$ at $220 \text{ V AC}$ and $20 \text{ kA}$ at $690 \text{ V AC}$)
Mounting Type: Fixed (F)
Terminal Connection: Front Terminals (F)
Standards Compliance: IEC 60947-2
Dimensions: Approximately $205 \text{ mm (H)} \times 140 \text{ mm (W)} \times 103.5 \text{ mm (D)}$ (3-pole version)
High Breaking Capacity: The 'N' version offers a substantial short-circuit breaking capacity ($I_{cu}$), ensuring the protection of downstream components and the safety of the electrical installation under fault conditions.
Current Limiting Design: Tmax MCCBs are engineered to be current-limiting, which means they interrupt a short circuit quickly enough to significantly reduce the peak current and the specific let-through energy ($I^2t$), thereby minimizing damage to cables and equipment.
Advanced Protection Flexibility: When equipped with an electronic trip unit, the T5N 630 offers highly customizable and precise protection settings (L-S-I, etc.) to optimize selectivity and coordination within the power distribution system.
Double Insulation and Safety: ABB Tmax breakers feature double insulation between the live power parts and the front of the device, increasing safety for operators during normal use.
Compact Size: The T5 frame size maintains a relatively compact footprint for its current rating, optimizing space utilization within switchboards and panels.
Trip Unit Calibration: If using an electronic trip unit, ensure it is correctly programmed and tested to match the specific application requirements, cable sizes, and coordination scheme.
Torque Specifications: Always tighten the terminal screws to the manufacturer-specified torque values. Improper torquing can lead to loose connections, excessive heat, and potential failure.
Accessory Compatibility: Only use genuine ABB accessories (like auxiliary contacts, shunt trips, or motor operators) that are explicitly rated and approved for the T5 frame size.
Installation Environment: The breaker must be installed within a suitable panel or enclosure that provides the necessary IP rating to protect it from dust, moisture, and environmental contaminants, as required by local codes.
DC Applications: While the T5N 630 is rated for both AC and DC, specific de-rating and wiring rules (e.g., poles in series) apply to DC circuits, which must be strictly followed.
The ABB TMAX T5N 630 is widely used in high-current applications across various sectors to provide reliable overload and short-circuit protection.
Main Distribution Panels: Used as the main incoming breaker or as major distribution feeders in large commercial buildings, industrial plants, and utility substations.
Sub-Distribution Boards: Protecting heavy loads or complex sub-circuits, such as large motor control centers (MCCs) or groups of machinery.
Motor Protection: Utilizing specific motor protection trip units to safeguard high-horsepower three-phase motors.
Switchgear Assemblies: Incorporated into switchgear for reliable power distribution and sectionalizing within a facility's electrical network.
Infrastructure: Used in demanding environments like hospitals, airports, and data centers where high performance and continuous operation are critical.
We have the same series of models in stock. If you don't find the model you need, please contact us and we will provide you with an official quotation！
ABB SDCS-PIN-H11A 3ADT319200R1501
ABB SDCS-PIN-3A 3ADT312200R1
ABB AMC-DC 3ADT309900R1
ABB SDCS-CON-2 3ADT309600R1
ABB SCYC51220
ABB SDCS-CON-2A 3ADT309600R0002
ABB ZCON-12

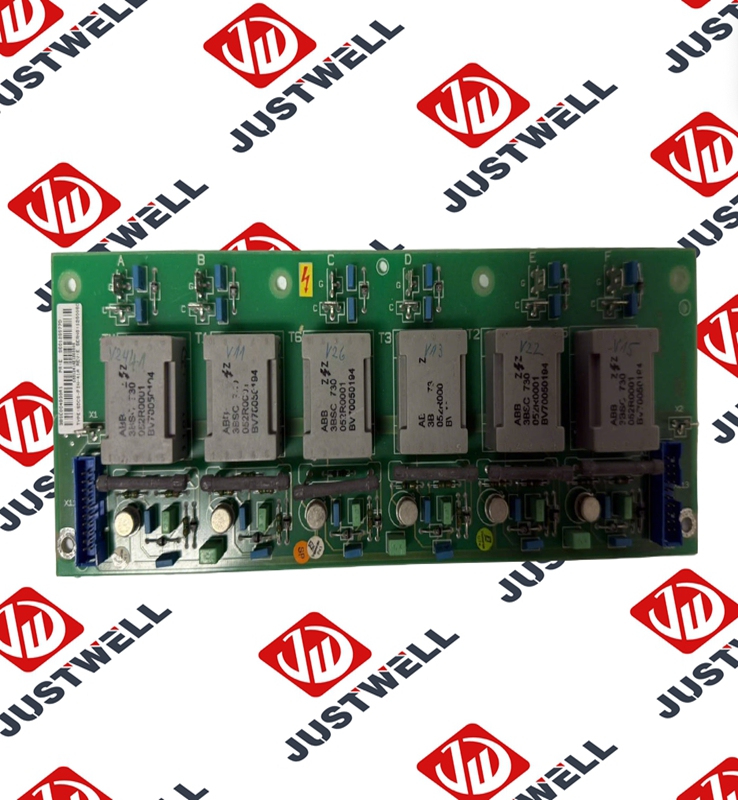

ABB SDCS-PIN-41A 3BSE004939R1
ABB SDCS-COM-81 3ADT314900R1002

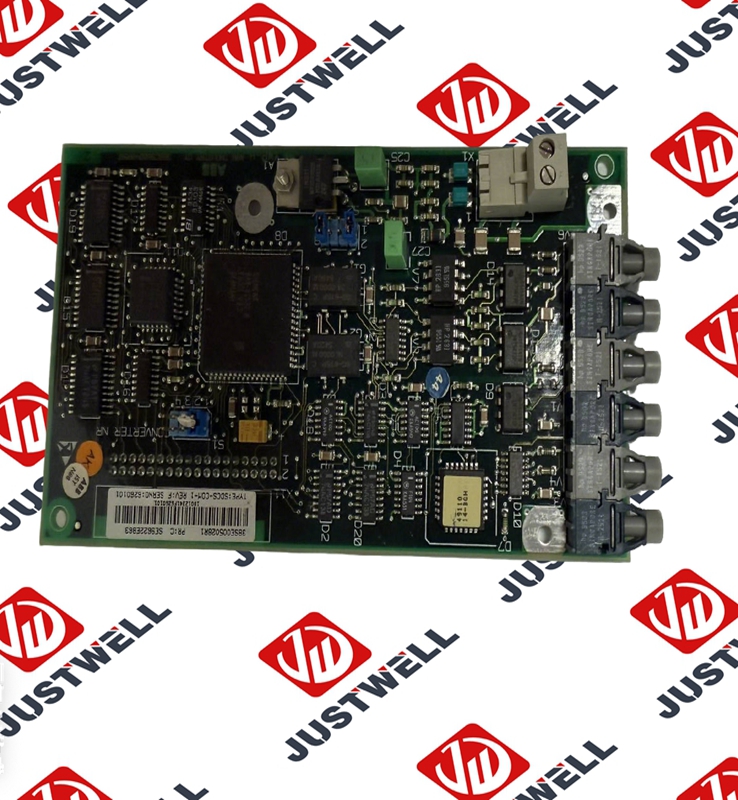

ABB SDCS-COM-1 3BES005028R1
