ADV569 YOKOGAWA

ADV569 Yokogawa Input module

Brand：Yokogawa Model number：ADV569

Country of origin: Japan Product weight：0.55kg

HS code：8538900000

Inquire Now

Product Details：

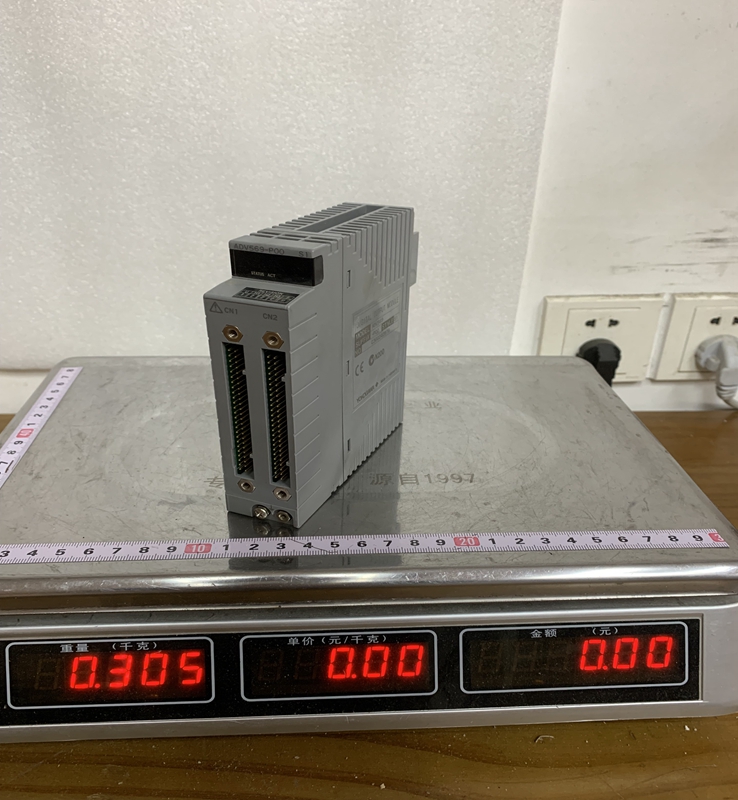

Product Dimensions：

The ADV569 serves as an interface module that outputs discrete binary signals (on/off) to control field equipment such as solenoids, relays, indicator lights, and motor starters. This specific module features a 64-channel output configuration, offering an exceptionally high channel density in a single I/O slot. It operates using a common return system where groups of channels share a power source connection. To ensure the safety of the sensitive processor electronics, the module incorporates robust optical isolation between the internal system logic and the external field circuits. The module interfaces directly with Yokogawa's standard pressure-clamp terminal blocks or specialized high-density signal cables.

Product Parameters

Module Type: Digital Output Module
Number of Channels: 64 channels, isolated in groups (typically 16 channels per common return group)
Output Type: Current sinking type (transistor switch output)
Rated Voltage: $24 \text{ VDC}$ (with an allowable operational voltage range of $20.4 \text{ VDC}$ to $28.8 \text{ VDC}$ )
Maximum Load Current: Approximately $100 \text{ mA}$ per channel under continuous operation, with total group current limits enforced to prevent thermal overload
Output Response Time: Turn-on and turn-off times are typically under $1 \text{ ms}$ , ensuring rapid control sequencing
Withstand Voltage: Provides $1500 \text{ VAC}$ isolation between the field terminals and the internal system circuits
Current Consumption: Typically draws around $500 \text{ mA}$ or less from the system power supply line
System Interface: Compatible with FIO node units (ANB10D, ANB11D, ANT10D, etc.)

Product Advantages

A primary advantage of the ADV569 is its Exceptional Channel Density. Providing 64 outputs in a single module allows plant designers to maximize the utilization of cabinet space, which directly translates to smaller marshaling panels and lower overall installation costs. The High Reliability inherent to Yokogawa's FIO design ensures that the module delivers a long operational life with an extremely low failure rate, making it ideal for continuous, non-stop process industries.

Additionally, the module includes Comprehensive Status Diagnostics. Each channel's logic state is reflected via an onboard LED array, enabling maintenance technicians to instantly verify whether an output command is being transmitted from the system. The Advanced Isolation technology prevents electrical surges or ground loops in the field from propagating back to the main control network, protecting the integrity of the entire DCS core.

Important Considerations and Precautions

When deploying the ADV569, it is critical to observe the Current Sinking Wiring Topology. Because this is a current sinking module, the external power supply positive terminal must be connected to the load, and the module switches the negative side to ground; incorrect wiring will result in a failure to operate or a direct short circuit. Thermal Derating Limits must also be monitored; if all 64 channels are energized simultaneously at high ambient temperatures, the total heat generated inside the module can exceed safe limits. Users should verify the maximum concurrent output ratio based on the ambient temperature charts in the Yokogawa technical manual.

Since this module drives inductive loads like solenoids and heavy-duty relays, Surge Suppression devices (such as flyback diodes) must be installed across each inductive load in the field to prevent high-voltage inductive kicks from destroying the module's output transistors. Finally, always ensure the Field Wiring Power is Disconnected before removing or replacing the terminal block attached to the module to prevent electrical arcing or accidental triggering of downstream machinery.

Product Applications

The Yokogawa ADV569 is widely utilized across large-scale process automation sectors where massive amounts of discrete devices must be coordinated safely.

Oil and Gas Refining: Controlling the status of solenoid valves in automated valve manifold networks and managing process interlocks.
Chemical Production: Driving the discrete indicators, horns, and sirens on operator notification panels and coordinating batch reactor sequence valves.
Power Generation Facilities: Managing the start/stop control sequences for auxiliary pumps, fans, and motorized dampers across the plant utility network.
Water and Wastewater Systems: Actuating chemical dosing pumps and controlling the open/close status of main distribution penstocks and isolation valves.
Pulp and Paper Mills: Coordinating the high-speed discrete actions required in log handling, pulping sequences, and sheet cutting machines.
