ADV557-S50 YOKOGAWA

ADV557-S50 Yokogawa Input module

Brand：Yokogawa Model number：ADV557-S50

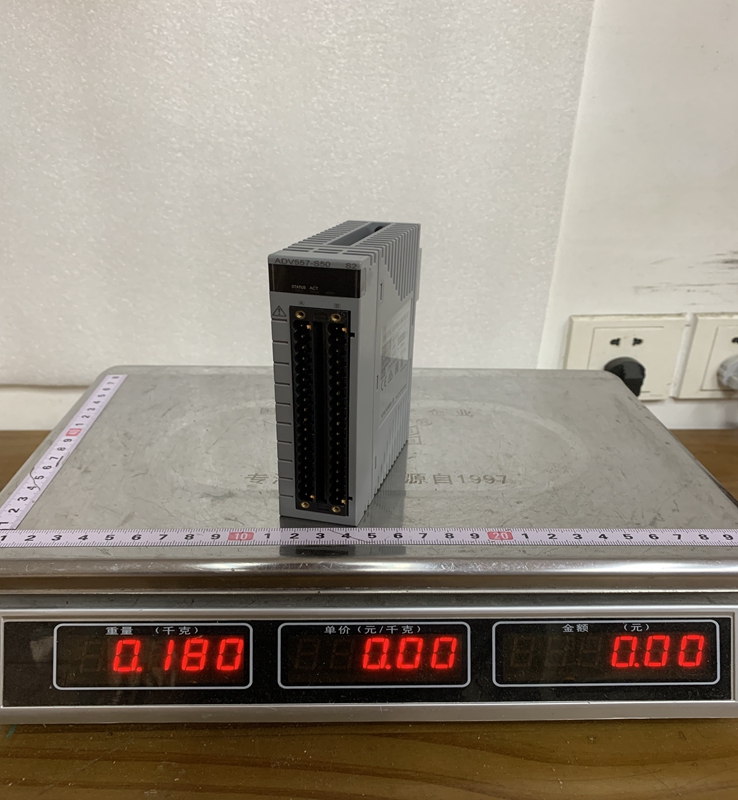

Country of origin: Japan Product weight：0.55kg

HS code：8538900000

Product Details：

Product Dimensions：

The ADV557-S50 is a 64-channel digital input module that acts as a critical communication bridge between field devices and the main control processor of the CENTUM VP system. It interfaces with contacts, switches, and proximity sensors, translating their binary states (on/off) into digital information for the DCS. The module features isolated channels to protect the sensitive internal system electronics from external electrical anomalies. The "S50" suffix denotes a specific hardware configuration, typically indicating standard environmental protection coating (G3 conformal coating) for enhanced resistance against corrosive gasses and harsh industrial atmospheres.

Product Parameters

Module Type: Digital Input Module
Number of Channels: 64 channels, isolated in groups
Input Signal Type: Dry contact or 24 VDC voltage input signals
Rated Input Voltage: 24 VDC
Input Current: Typically 4.1 mA per channel at rated voltage
Isolation Resistance: 100 MOhm minimum at 500 VDC between field side and system side
Withstand Voltage: 1500 VAC between field side and system side for one minute
Conformal Coating: Standard G3 coating for corrosion protection
System Compatibility: Designed for use in standard CENTUM VP I/O nodes and nests

Product Advantages

A major advantage of the ADV557-S50 is its High Channel Density. Providing 64 digital inputs within a single module significantly reduces the total number of I/O slots required in a system cabinet, lowering overall hardware costs and saving valuable control room space. The inclusion of G3 Conformal Coating ensures long-term reliability by preventing corrosion on the circuit boards caused by airborne contaminants like hydrogen sulfide or sulfur dioxide, which are common in chemical plants.

The module also features Advanced Status Diagnostics, allowing the CENTUM VP system to continuously monitor the health of the module and instantly detect faults like internal circuit failures or communication timeouts. Furthermore, its Hot-Swappable Design enables maintenance personnel to replace a faulty module without shutting down the entire I/O rack or interrupting the active industrial process.

Important Considerations and Precautions

When installing or configuring the ADV557-S50, Proper Grounding is essential; the I/O nest and the cabinet frame must be connected to a high-quality instrument ground to prevent common-mode noise from disrupting signal accuracy. Because this module manages 64 channels simultaneously, Careful Wiring Routing must be practiced; bundling high-power AC cables next to the low-voltage DC input lines can induce electromagnetic interference, leading to false input triggers.

Ensure that the external Power Supply Voltage does not exceed the specified 24 VDC threshold, as sustained overvoltage can degrade the optical isolators. When replacing a module under live power (hot-swapping), ensure that the Terminal Block is firmly seated and locked into place before initializing the module via the software to prevent communication glitches on the control network.

Product Applications

The Yokogawa ADV557-S50 is widely implemented in massive process industries where thousands of discrete signals must be monitored continuously.

Oil and Gas Refineries: Monitoring the open/closed status of limit switches on safety valves and the operational feedback of large pumps.
Chemical and Petrochemical Plants: Collecting binary signals from pressure switches, level switches, and temperature trips across complex reaction lines.
Power Generation Facilities: Interfacing with boiler interlocking systems, circuit breaker auxiliary contacts, and generator status monitors.
Pulp and Paper Mills: Tracking the state of proximity sensors, emergency stop buttons, and safety gates along automated conveyor lines.
Water and Wastewater Treatment: Managing digital signals from remote pumping stations, valve positioners, and filtration sequence controls.
