GA80U4005ABM YASKAWA

GA80U4005ABM YASKAWA Output I/O module

Brand：YASKAWA Model number：GA80U4005ABM

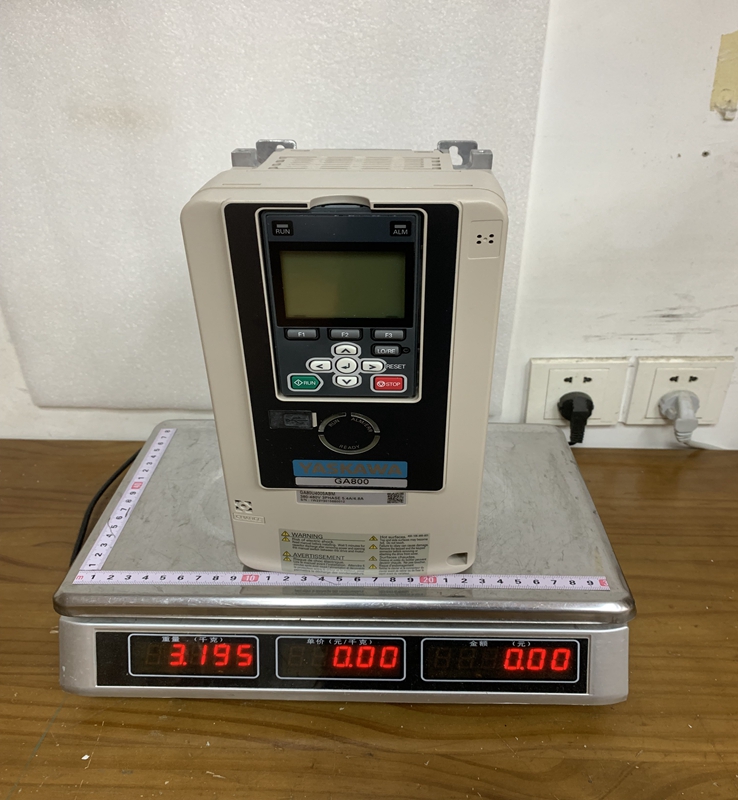

Country of origin: Japan Product weight：0.55kg

HS code：853710119

Inquire Now

Product Details：

Product Dimensions：

The GA80U4005ABM is engineered to deliver precise variable speed control while streamlining system architecture. Operating on a 3-phase 480V power infrastructure, this model provides industrial systems with versatile motor tuning capabilities, featuring both open-loop and closed-loop vector control. It integrates embedded smart functionalities, such as customized logic programming via function blocks and seamless mobile device integration via Bluetooth, which eliminates the frequent need for external peripheral controllers. The unit is optimized for space-efficient control cabinet mounting and delivers highly dynamic power output with minimalist integration overhead.

Product Parameters

Series Designation: Yaskawa GA800 Series
Full Part Number: GA80U4005ABM
Input Phase and Voltage: 3-Phase, $380 \text{ V}$ to $480 \text{ VAC}$ (nominal $460\text{V}$ )
Output Phase and Voltage: 3-Phase, matching input voltage up to maximum $480 \text{ VAC}$
Normal Duty Horsepower (ND): $3 \text{ HP}$ with an output current rating of $5.4 \text{ A}$ (at 110% overload capacity for 60 seconds)
Heavy Duty Horsepower (HD): $2 \text{ HP}$ with an output current rating of $4.8 \text{ A}$ (at 150% overload capacity for 60 seconds)
Enclosure Rating: IP20 / NEMA Type 1 standard enclosure
Motor Control Modes: Advanced Open Loop Vector, Closed Loop Vector, and standard V/Hz Speed Control
Functional Safety: Built-in Safe Torque Off (STO) conforming to SIL3, PLe, and Category 3 standards
Braking Component: Integrated internal brake transistor for immediate dynamic braking capabilities
Physical Dimensions: Height 10.24 inches ( $260 \text{ mm}$ ), Width 5.51 inches ( $140 \text{ mm}$ ), Depth 6.93 inches ( $176 \text{ mm}$ )

Product Advantages

A primary benefit of the GA80U4005ABM is its Tripless Operational Design, utilizing ultra-fast acting motor control loops that stabilize sudden current surges and voltage changes to avoid unnecessary system trips. The Exceptional Motor Versatility allows users to govern induction, permanent magnet, and synchronous reluctance motors with a single VFD platform, standardizing spare part inventories.

Setup efficiency is enhanced through its Intuitive Interaction Options, enabling technicians to utilize high-resolution graphical display wizards on the keypad or program the drive wirelessly via the DriveWizard Mobile application on mobile devices. Furthermore, the inclusion of DriveWorks EZ embedded function blocks allows engineers to create localized control logic directly inside the VFD, saving physical panel space and the cost of an auxiliary small PLC.

Important Considerations and Precautions

When setting up the GA80U4005ABM, selecting the correct Duty Rating Configuration is essential. Operating a $3 \text{ HP}$ load under high starting-torque conditions requires configuring the drive parameters to Normal Duty, but if the application experiences extreme, repetitive overloads, the user must derate the application down to $2 \text{ HP}$ Heavy Duty to prevent over-current protection faults.

Because the unit is rated at IP20 Protection, it must be housed within a clean, dry, climate-conditioned industrial electrical cabinet that prevents conductive dust, corrosive gas, or excessive humidity from contacting the internal electronics. Technicians must strictly follow EMC Shielding Guidelines, ensuring that the specialized VFD power cable shields are solidly grounded at both the motor frame and the drive chassis to contain high-frequency switching noise. Finally, always wait a minimum of five minutes after disconnecting the main AC supply before attempting any physical wiring alterations, allowing the internal DC bus capacitors to fully discharge to safe voltage levels.

Product Applications

The GA80U4005ABM VFD is well-suited for mid-sized machinery requires fast torque response and variable speed capabilities.

Conveyor Systems: Managing high-torque startup constraints on loaded industrial belt assemblies within material distribution centers.
Pumps and Fans: Driving variable-flow centrifugal pumps and commercial exhaust fans to optimize energy efficiency over traditional dampening systems.
Packaging Machines: Synchronizing fast-acting feed rollers, cutting stations, and film tensioning mechanisms.
Textile Equipment: Maintaining highly uniform speed regulation across winding and spinning apparatuses where mechanical jerk must be eliminated.
Mixers and Agitators: Delivering constant torque across changing chemical viscosities during raw material processing phases.
