JGSM-12-01 YASKAWA

JGSM-12-01 YASKAWA Output I/O module

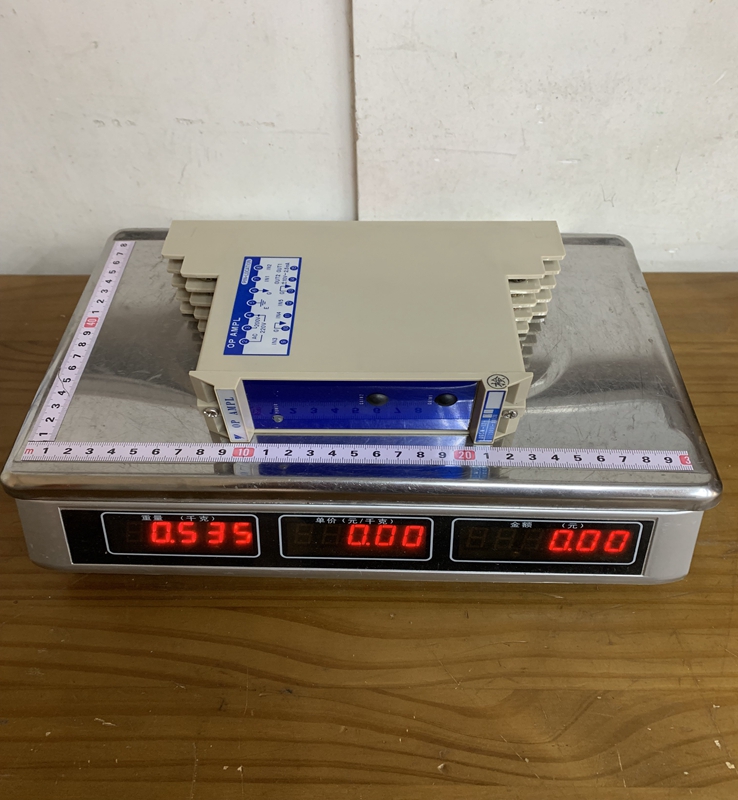

Brand：YASKAWA Model number：JGSM-12-01

Country of origin: Japan Product weight：0.55kg

HS code：853710119

Inquire Now

Product Details：

Product Dimensions：

The ABB Bailey JGSM-12-01 is a specialized module belonging to the Symphony Plus or Infi 90 / Network 90 distributed control system (DCS) families. It functions as a high-performance communication or interface component, typically utilized within the global Bailey Controls architecture acquired by ABB. These modules are engineered to maintain high-speed data integrity and deterministic control in complex industrial processes, serving as a critical link between the control logic and field devices or other networked controllers.

Product Specifications

Module Type: Network Interface or Gateway Communication Module.
Compatibility: Fully compatible with ABB Bailey Infi 90 and Symphony Plus rack systems.
Power Requirements: Designed to operate on standard system cabinet power levels, typically drawing from the backplane +5 VDC or +/- 15 VDC rails.
Data Throughput: Optimized for real-time control network speeds, ensuring low-latency data packets across the Infinet or Cnet communication loops.
Mounting: Standard plug-in form factor designed for a dedicated slot within the module mounting unit (MMU).
Connection Interface: Utilizes a high-density gold-plated edge connector for backplane communication and may feature front-facing ports for diagnostic or auxiliary connections.

Product Advantages

Deterministic Communication: Provides predictable and reliable data delivery, which is essential for maintaining stability in closed-loop control applications.
Hot-Swappable Design: Allows for maintenance and replacement without shutting down the entire control system, significantly reducing plant downtime.
Industrial Durability: Built with high-grade components to resist electrical noise, vibration, and the fluctuating temperatures commonly found in industrial control rooms.
Legacy Support: Offers a bridge for older Network 90 systems to integrate with modern Symphony Plus hardware, protecting the user’s long-term capital investment.

Important Considerations

Configuration Integrity: Before installation, ensure the module jumpers or dip switches are set correctly according to the system's node address map to avoid network conflicts.
Static Protection: Like all electronic control hardware, this module is sensitive to electrostatic discharge (ESD). Handle the unit only by the edges and use grounded wrist straps during installation.
Firmware Versioning: Verify that the module's firmware is compatible with the existing Controller (HCU) or Console software to ensure full functionality of all features.
Ventilation Requirements: Ensure the cabinet cooling fans are operational, as excessive heat buildup can shorten the lifespan of the internal capacitors and microprocessors.

Product Applications

The JGSM-12-01 is found in large-scale industrial environments that require robust, centralized control over thousands of I/O points.

Power Generation: Used in fossil fuel or nuclear power plants for boiler control, turbine monitoring, and balance-of-plant automation.
Oil and Gas: Employed in refineries and offshore platforms to manage process safety and communication between remote terminal units (RTUs).
Chemical Processing: Facilitates precise control over batch reactions and continuous flow processes where data accuracy is critical for safety.
Water and Wastewater: Manages the communication across geographically dispersed treatment facilities and pumping stations.
