SPM-IFC/FB-52423-ZB1A-3/FC-52423-4 SIEMENS

SPM-IFC/FB-52423-ZB1A-3/FC-52423-4 Siemens Basis unit

Brand：SIEMENS Model number：SPM-IFC/FB-52423-ZB1A-3/FC-52423-4

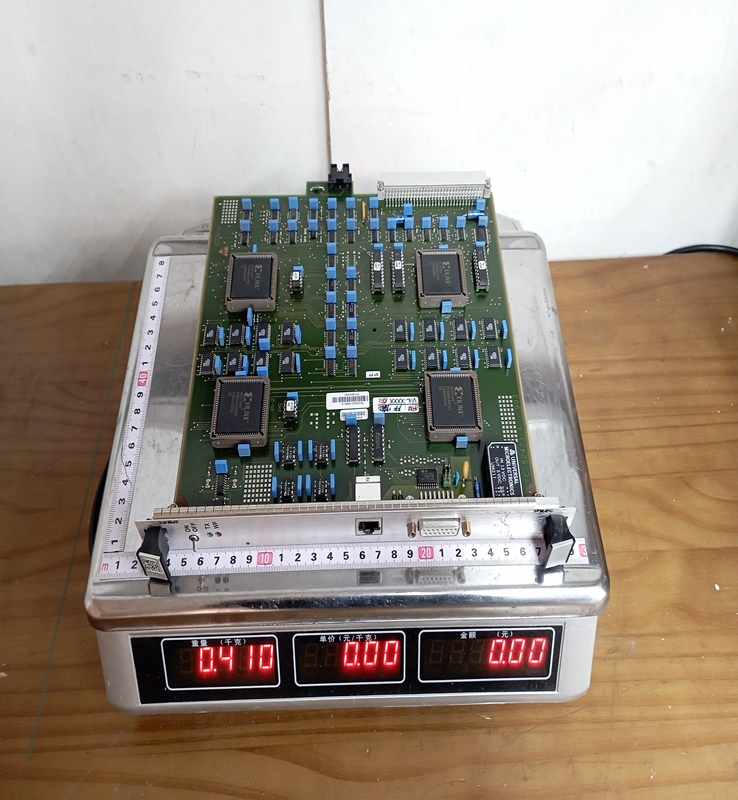

Country of origin: Germany Product weight：0.55kg

HS code：8517623990

Product Details：

Product Dimensions：

This specific component belongs to the Siemens SPM (System Performance Module) series. The alphanumeric designation indicates a multifaceted configuration: "IFC" refers to its role as an Interface Controller, while "FB" and "FC" typically denote functional blocks or field connection capabilities specific to fire safety, security, or complex HVAC control logic. It is engineered to handle real-time signal processing, converting physical inputs from field devices into digital data that the central processing unit can interpret. The module acts as a localized "brain," allowing for distributed intelligence across a facility, which reduces the processing load on the main system controller and improves response times for critical events.

Product Parameters

The technical parameters for the SPM-IFC/FB-52423-ZB1A-3/FC-52423-4 center on high-speed data transmission and environmental resilience.

Operating Voltage: Typically operates on a nominal $24 \text{ VDC}$ power supply, standard for industrial control environments.
Communication Interface: Supports proprietary Siemens bus protocols and is often compatible with standard industrial backplanes for seamless data exchange.
Signal Input/Output: Features multiple channels for digital or analog signals, depending on the specific field block (FB/FC) configuration utilized.
Power Consumption: Optimized for low energy draw, generally consuming less than $5 \text{ Watts}$ during standard operation to minimize heat generation.
Mounting Type: Designed for standard DIN rail mounting or direct integration into specialized Siemens controller chassis.
Operating Temperature: Rated for industrial use, typically ranging from $-5°\text{C}$ to $+55°\text{C}$ ( $23°\text{F}$ to $+131°\text{F}$ ).
Material Composition: Built with high-grade, flame-retardant industrial plastics and gold-plated connectors to prevent oxidation.

Product Advantages

High Integration Density: By combining interface control with specific field blocks, this unit reduces the number of separate components needed in a control cabinet, saving physical space.
Reliability and Redundancy: Siemens builds these modules with high Mean Time Between Failure (MTBF) rates, and the ZB1A-3 designation often implies enhanced diagnostic capabilities for predictive maintenance.
Plug-and-Play Architecture: The module is designed for "hot-swapping" in certain configurations, allowing for replacement without shutting down the entire system, which is crucial for 24/7 operations.
Enhanced Signal Integrity: Advanced shielding within the IFC circuitry minimizes electromagnetic interference (EMI), ensuring that data remains accurate even in "noisy" industrial environments.

Important Considerations and Precautions

Electrostatic Discharge (ESD): This module contains sensitive CMOS components. Technicians must use ESD wrist straps and grounded mats during installation to prevent permanent damage.
Voltage Regulation: While it operates on $24 \text{ VDC}$ , spikes in the power supply can damage the internal logic. The use of a stabilized power supply or surge protector is highly recommended.
Firmware Compatibility: Ensure that the firmware version of the SPM-IFC is compatible with the version of the main system controller. Mismatched versions can lead to communication errors or system instability.
Wiring Integrity: Improperly stripped or loose wires at the FC-52423-4 connection points can cause intermittent signals. Use ferrules and follow the specific torque requirements for terminal screws.
Airflow Management: Although low power, these modules should not be crowded. Maintain the manufacturer-specified clearance around the module to allow for passive cooling.

Product Applications

The SPM-IFC/FB-52423-ZB1A-3/FC-52423-4 is utilized in complex environments requiring high-precision monitoring and automated response.

Building Automation Systems (BAS): Used as a central node for managing large-scale HVAC, lighting, and energy monitoring across high-rise commercial buildings.
Fire and Life Safety: Acts as an interface between fire detectors, smoke dampers, and the main fire alarm control panel to ensure rapid localized response.
Industrial Process Control: Employed in manufacturing plants to coordinate the timing between field sensors and the central PLC (Programmable Logic Controller).
Data Centers: Monitors environmental conditions (temperature, humidity, and airflow) at the rack level to trigger cooling adjustments automatically.
