BORA150/S30824-Q80-X100-7/W30824-Q80-C8 SIEMENS

BORA150/S30824-Q80-X100-7/W30824-Q80-C8 Siemens Basis unit

Brand：SIEMENS Model number：BORA150/S30824-Q80-X100-7/W30824-Q80-C8

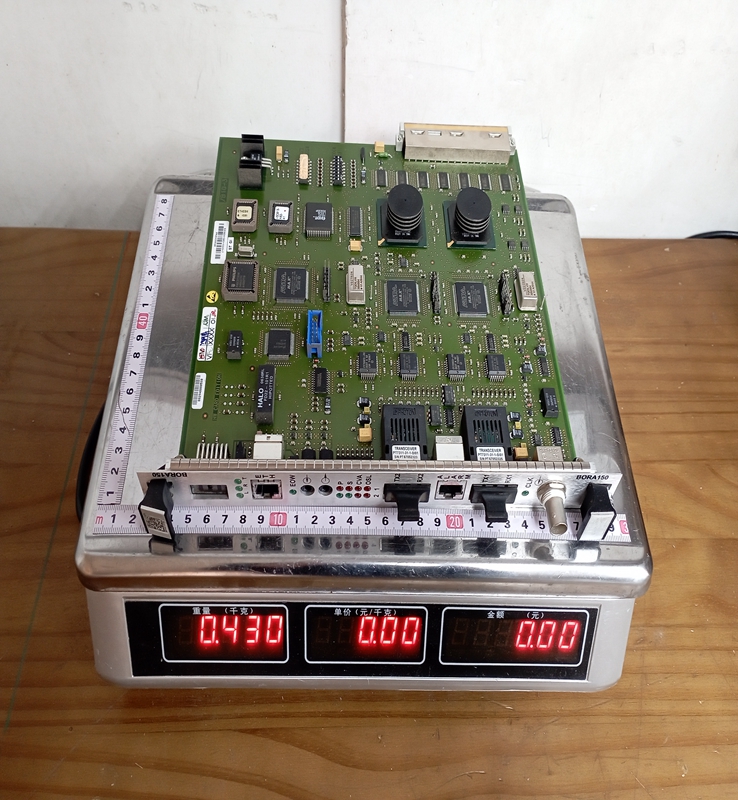

Country of origin: Germany Product weight：0.55kg

HS code：8517623990

Product Details：

Product Dimensions：

The BORA150 (often standing for Basic Optical Relay Adapter or similar interface naming conventions) is a high-performance communication board. The S30824-Q80-X100-7 identifies the specific hardware version of the printed circuit board, while W30824-Q80-C8 often refers to the assembly or sub-component code used in Siemens inventory management. This module is designed to bridge internal system backplanes with external optical or digital communication lines, ensuring high-speed data integrity and synchronization across large-scale PBX (Private Branch Exchange) or network nodes.

Product Parameters

Interface Type: Fiber optic or high-speed digital synchronous interface.
Compatibility: Exclusively designed for Siemens HiPath 4000 or Hicom 300 series platforms.
Transmission Rate: Supports high-speed data throughput, typically optimized for 155 Mbps (equivalent to STM-1/OC-3 levels in SDH/SONET environments).
Power Supply: Drawn directly from the system backplane, usually operating at standard telecom voltages such as $-48 \text{ VDC}$ .
Form Factor: Proprietary Siemens large-format plug-in card for rack-mounted chassis.
Connection Ports: Typically features specialized optical connectors (such as SC or FC) or high-density copper connectors depending on the specific sub-variant.

Product Advantages

High Reliability: Engineered for carrier-grade environments where "five nines" ( $99.999\%$ ) uptime is required for critical voice and data traffic.
Seamless Integration: Being an OEM part for the HiPath/Hicom series, it offers plug-and-play compatibility without the need for complex third-party protocol conversion.
Signal Integrity: Advanced error correction and optical processing capabilities minimize data loss over long-distance links between network nodes.
Scalability: Allows enterprise networks to expand their communication capacity by linking multiple cabinets or sites through high-speed trunking.

Important Considerations and Precautions

Electrostatic Discharge (ESD): This module contains highly sensitive CMOS components. Technicians must use grounded wrist straps during installation or removal to avoid permanent hardware damage.
Hot-Swapping: While some Siemens racks support hot-swapping, it is critical to verify the specific system software version and hardware configuration before removing the card while the system is powered.
Fiber Optic Safety: If the module uses laser outputs, never look directly into the optical ports or fiber ends while the module is active to prevent eye injury.
Compatibility Check: Ensure the firmware version of the main system processor is compatible with the S30824-Q80-X100-7 revision to avoid initialization failures.
Discontinued Support: As these are legacy components, users should be aware that factory support may be limited, and sourcing should be done through verified industrial automation or telecom hardware specialists.

Product Applications

Enterprise Telephony: Acts as a backbone link in large corporate offices using Siemens HiPath systems to connect different floors or buildings.
Industrial Networking: Employed in utility environments (power plants, transport hubs) that require ruggedized, proprietary communication links for internal coordination.
Public Switching: Used in regional telecommunications exchanges for trunking and switching voice traffic between local and long-distance networks.
Data Backhaul: Provides a reliable path for multiplexed data streams within a private telecommunications infrastructure.
