1405DO95300S SCHNEIDER

1405DO95300S SCHNEIDER Input module

Brand：SCHNEIDER Model number：1405DO95300S

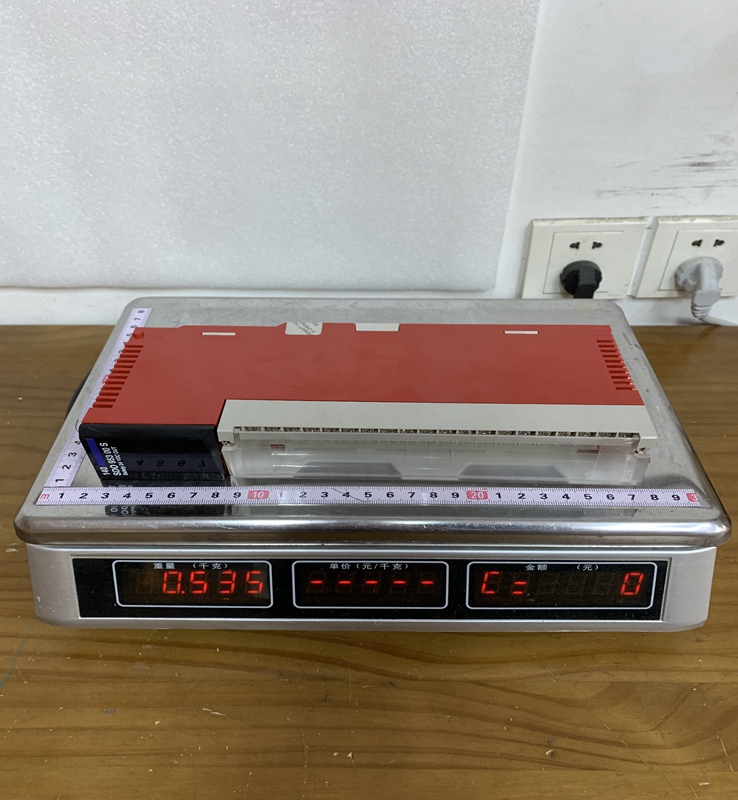

Country of origin: France Product weight：0.55kg

HS code：853710119

Inquire Now

Product Details：

Product Dimensions：

The 140SDO95300 is a 24-channel discrete output module that utilizes source logic. It is specifically designed to handle 115 VAC loads, making it a staple in North American industrial environments and other regions where AC control power is standard. As part of the Quantum family, it features a modular design that slides into a standard backplane, allowing for hot-swapping and easy maintenance. The module includes an array of front-facing LED indicators that provide real-time status updates for each individual output channel, as well as the overall health of the module.

Product Parameters

Number of Outputs: 24 channels arranged in groups.
Output Voltage: $115 \text{ VAC}$ nominal (typically operating between $93 \text{ VAC}$ and $132 \text{ VAC}$ ).
Discrete Output Type: Triac-based switching for AC loads.
Current per Channel: Maximum $1 \text{ A}$ per channel, though total module current is limited to prevent overheating.
Leakage Current: Less than $2 \text{ mA}$ at $115 \text{ VAC}$ , which is an important consideration for high-impedance loads.
Response Time: Typically less than $1 \text{ ms}$ for Off-to-On and less than $10 \text{ ms}$ for On-to-Off (synchronized with the AC zero-crossing).
Isolation: $1780 \text{ Vrms}$ for 1 minute between the field side and the bus, ensuring the backplane electronics are protected from field-side surges.
Power Dissipation: Approximately $1.5 \text{ W}$ plus $0.4 \text{ W}$ per energized point.

Product Advantages

A primary advantage of the 140SDO95300 is its High Channel Density, providing 24 output points in a single slot, which maximizes the utilization of backplane space. The use of Triac Switching technology ensures silent operation and an extremely long electrical life compared to mechanical relays, as there are no moving parts to wear out.

The module is also known for its Advanced Diagnostics; the front-panel LEDs allow maintenance teams to troubleshoot field wiring issues quickly without needing to connect a laptop. Furthermore, its integration into the Modicon Quantum Platform means it benefits from a mature ecosystem of software and hardware support, ensuring long-term availability of parts and technical expertise.

Important Considerations and Precautions

When installing the 140SDO95300, users must pay close attention to Total Current Loading. While each point can handle $1 \text{ A}$ , the sum of all active outputs must not exceed the module's thermal rating, or the unit may trip or sustain permanent damage. Because this is an AC module using Triacs, it requires a Minimum Load Current to function correctly; if the connected device draws too little current, the Triac may fail to turn off or may provide erratic signals.

It is also critical to ensure Proper Fusing for each output group to protect the module's internal circuitry from field-side short circuits. During maintenance, remember that the 115 VAC present on the terminal block is a safety hazard; always disconnect field power before removing the front connector. Finally, be aware of the Leakage Current; some sensitive LED indicators or small relays may stay "On" even when the module output is "Off" due to the small amount of current that naturally leaks through a Triac.

Product Applications

The Schneider 140SDO95300 is ideal for large-scale industrial processes requiring AC control.

Motor Control Centers (MCC): Driving the coils of $115 \text{ VAC}$ motor starters and contactors in heavy industrial plants.
Infrastructure and Utilities: Controlling valves and pumps in water treatment facilities or power distribution substations.
Manufacturing Lines: Operating solenoids, pneumatic valves, and stack lights on assembly lines.
Material Handling: Managing the diverters and stop-gates in large-scale conveyor systems for logistics and mining.
HVAC Systems: Controlling large industrial fans, dampers, and heating elements in commercial or industrial climate control.

XALD211H29H7 SCHNEIDER

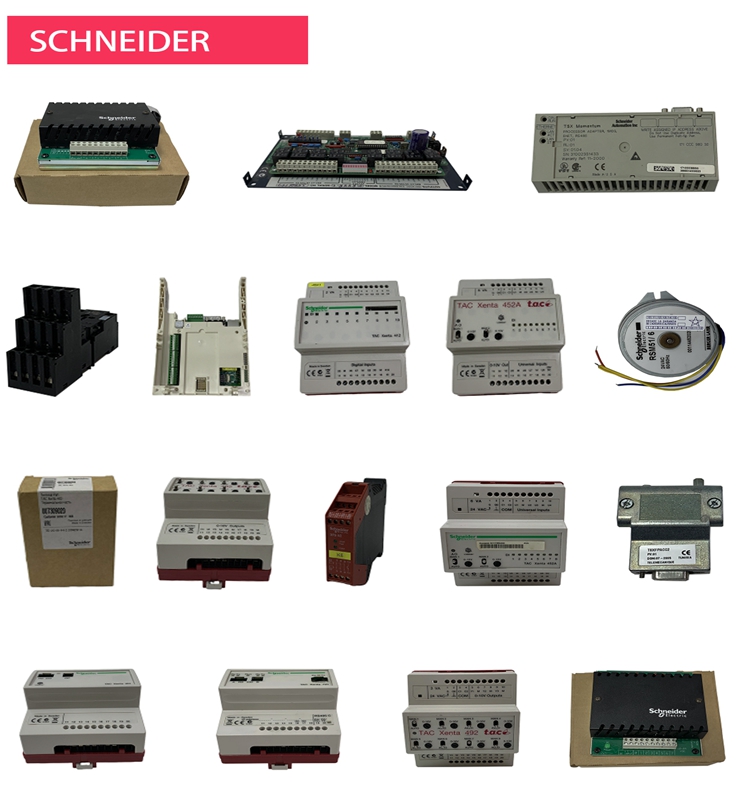

We have the same series of models in stock. If you don't find the model you need, please contact us and we will provide you with an official quotation！
