DDS-TLⅡ RELIANCE

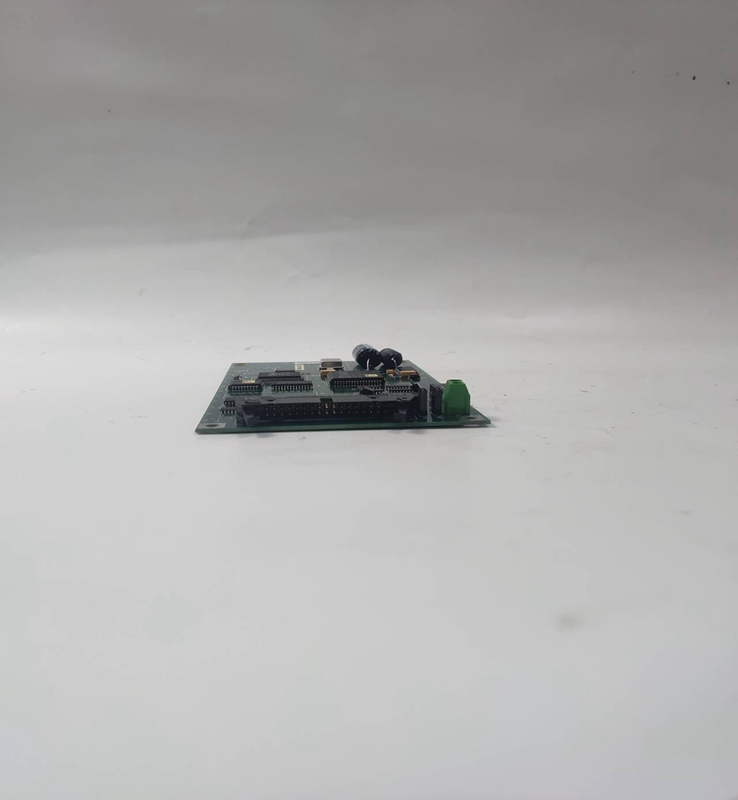

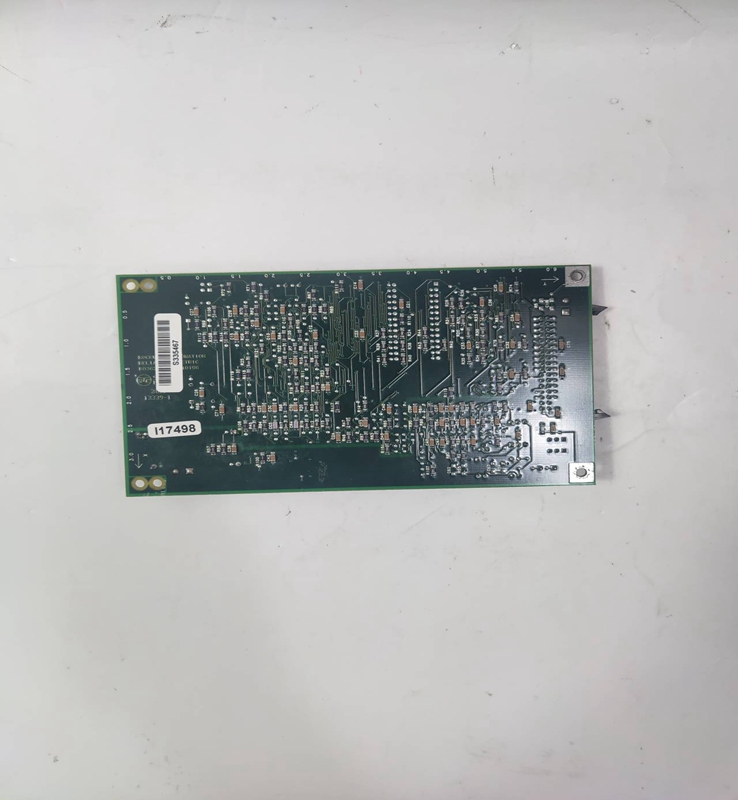

Reliance DDS-TLⅡ Analog Output Modules

Brand：RELIANCE Model number：DDS-TLⅡ

Country of origin: United States Product weight：0.55kg

HS code：9032899099

Product Details：

Product Dimensions：

A Reliance Analog Output Module takes digital data (often a 12-bit or 16-bit word) from the PLC's processor and converts it into a continuous electrical signal, either a voltage (e.g., 0-10V, +/-10V) or a current (e.g., 4-20mA, 0-20mA). These modules are essential for applications requiring proportional control, allowing for fine-tuning of machine operation rather than simple on/off control.

Functionality: The core function is Digital-to-Analog Conversion (DAC). The module receives a numerical value from the PLC's internal memory or logic. Its internal DAC chip then translates this digital value into a corresponding analog voltage or current level. This analog signal is then output to a field device that can interpret and respond to a continuous range of values.
Isolation: A key feature of many Reliance analog output modules, such as the 57C410, is isolation. This means the output channels are electrically isolated from the PLC's logic common and often from each other. This isolation protects the sensitive control electronics from electrical noise, ground loops, and potential voltage spikes from the field devices.
Output Types: Common analog output signals include:

Voltage Outputs: Often ranges like 0-5V, 0-10V, +/-5V, +/-10V. These are used for devices that respond to voltage levels.
Current Outputs: Most commonly 4-20mA, but also 0-20mA. Current signals are preferred for long cable runs or noisy environments because they are less susceptible to voltage drops and electrical interference.

Filters: Many modules incorporate output filters (e.g., 100Hz low-pass filters) to smooth the analog signal and reduce noise before it reaches the field device.

Product Parameters

Specific parameters for Reliance Analog Output Modules vary by model (e.g., 57C410, 45C360), but typical specifications include:

Number of Channels: Commonly 4 or 8 independent analog output channels per module.
Resolution: The precision of the digital-to-analog conversion, typically 12-bit or 16-bit. Higher resolution allows for finer control steps.
Output Signal Range: For voltage, common ranges are 0-10V, +/-10V, 0-5V, +/-5V. For current, 4-20mA or 0-20mA.
Isolation Voltage: The dielectric strength, often 2500V AC RMS, indicating the module's ability to withstand voltage differences between channels or between channels and logic common.
Output Load/Impedance: The maximum load resistance the module can drive for current outputs, or the minimum load impedance for voltage outputs.
Response Time: How quickly the analog output updates after the digital value changes.
Accuracy: The overall error percentage of the output signal relative to the ideal value, including linearity and gain errors.
Power Consumption: The electrical power required by the module.
Operating Temperature: Standard industrial temperature ranges (e.g., -25°C to 70°C).
Compatibility: Designed to fit into specific Reliance PLC racks (e.g., AutoMax Multibus Remote Rack, DCS 5000 rack).

Product Advantages

Precise Control: High resolution (e.g., 12-bit) enables very fine and accurate control over analog devices, essential for maintaining exact setpoints in processes.
Noise Immunity: Isolated outputs and the use of current signals (4-20mA) make these modules highly resistant to electrical noise and ground loop issues in industrial environments.
Robustness: Built to withstand the harsh conditions of industrial settings, including temperature fluctuations, vibration, and electrical interference.
Versatility: Support for both voltage and current outputs, and various ranges, allows for interfacing with a broad spectrum of analog-controlled devices.
System Integration: Designed for seamless integration with Reliance's legacy PLC and DCS platforms, providing a complete automation solution.
Reliability: Known for their long-term reliability and stable performance in demanding applications.

Important Considerations

Legacy Status: Reliance Electric products, including these analog output modules, are considered legacy hardware. While robust, new modules may be difficult to source, and technical support might be limited to third-party repair services. Consider obsolescence planning.
Compatibility: Ensure the module is compatible with your specific Reliance PLC processor and chassis. Check the relevant technical manuals (e.g., D-2715 for some AutoMax modules).
Wiring Practices: Proper shielded cabling, grounding, and wiring techniques are crucial for maintaining signal integrity and minimizing noise on analog lines.
Calibration: Analog output modules may require periodic calibration to maintain accuracy, especially in applications where precision is critical.
Load Matching: Always ensure the connected analog device's input impedance or load requirements match the module's output capabilities.
Field Device Requirements: Understand the specific control signal (voltage or current, range) required by your field devices (e.g., variable frequency drives, proportional valves, positioners).

Product Applications

Reliance Analog Output Modules have been widely used in industries requiring continuous and precise control:

Process Control:

Controlling the speed of pumps and fans in water treatment, chemical processing, and oil & gas facilities via Variable Frequency Drives (VFDs).
Regulating the opening of proportional valves to control fluid flow rates in pipelines or mixing systems.
Adjusting heating elements to maintain precise temperatures in ovens or furnaces.

Motion Control:

Providing speed or torque commands to motor drives in applications requiring variable speed, such as conveyors, winders, or extruders.
Controlling the position of actuators for precise machine movements.

Building Management Systems:

Regulating HVAC systems, including damper positions and fan speeds, for optimal climate control.

Manufacturing and Automation:

Controlling the output of dosing pumps in dispensing systems.
Adjusting parameters in continuous manufacturing processes.
