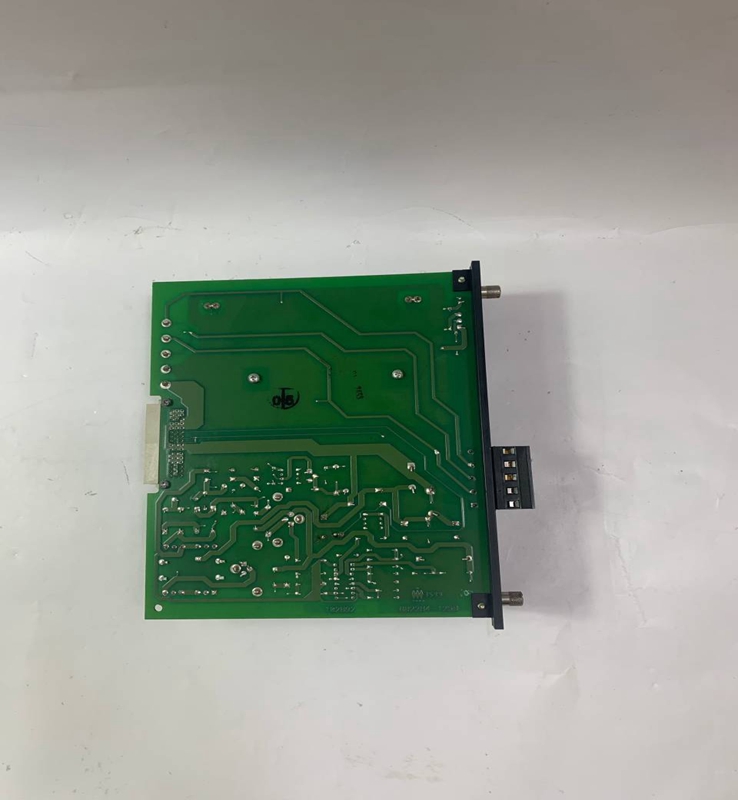

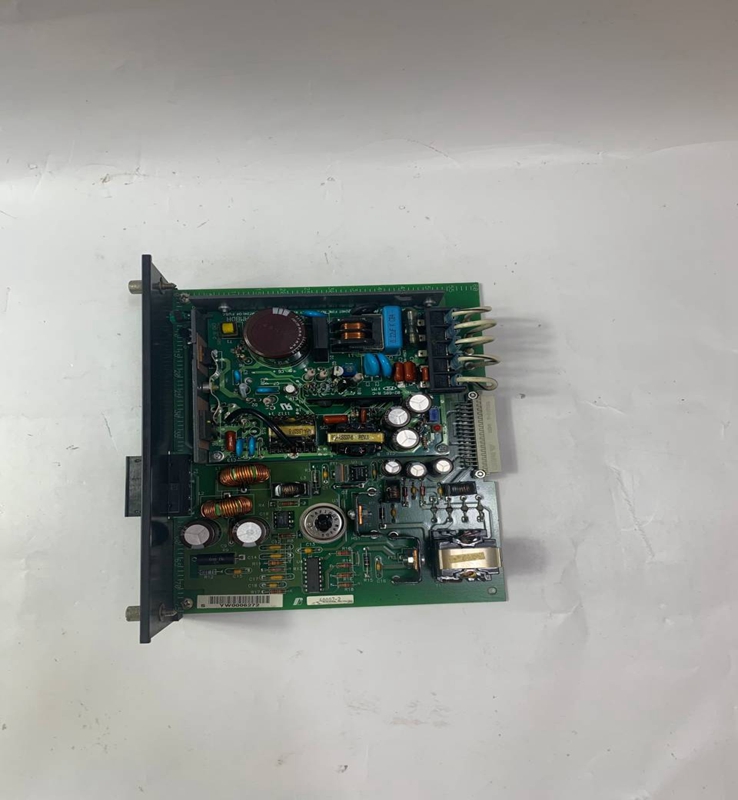

Reliance 805401-3S Digital Input Module

Brand：RELIANCE Model number：805401-3S

Country of origin: United States Product weight：0.55kg

HS code：9032899099

Product Details：

Product Dimensions：

A Reliance Digital Input Module (such as models within the AutoMate or Shark XL series) is an electronic device designed to detect the presence or absence of an electrical signal from field devices and convert that physical signal into a digital signal (ON/OFF, 0/1) that the PLC or control system can interpret. These modules are the "eyes" of the control system, providing feedback from switches, buttons, sensors, and other discrete devices.

Functionality: Digital input modules receive signals from binary sensors (like limit switches, pushbuttons, proximity sensors, level switches, pressure switches). When a field device changes state (e.g., a button is pressed, a sensor detects an object), the module detects the voltage or current change and sends a corresponding digital signal to the controller's processor. They also often provide electrical isolation to protect the sensitive control circuitry from high voltages or noise in the field.
Types: Reliance offered digital input modules designed for different voltage levels and current sourcing/sinking requirements. Common types include:

DC Input Modules: For direct current signals (e.g., 24V DC, 12V DC). These are typically available in sinking (NPN) or sourcing (PNP) configurations, depending on how the current flows from the sensor.
AC Input Modules: For alternating current signals (e.g., 115V AC, 230V AC). These often include internal rectifiers to convert AC to DC for the module's internal logic.
Universal AC/DC Input Modules: Some modules are designed to accept both AC and DC signals within a specified voltage range, offering greater flexibility.

Key Features:

Galvanic Isolation: Essential for protecting the low-voltage control circuitry from electrical noise, voltage spikes, and ground loops originating in the field. This is often achieved using opto-couplers.
LED Status Indicators: Each input channel typically has an LED that illuminates when the corresponding input signal is active, facilitating easy troubleshooting and status monitoring.
Noise Filtering: Built-in filters help to suppress electrical noise, preventing false readings from noisy industrial environments.
High Impedance Inputs: Designed to draw minimal current from the field devices.
Modular Design: These modules are typically designed to plug into a backplane or rack of a PLC system, allowing for flexible configuration and easy replacement.

Product Parameters

Specific parameters will vary based on the exact model number (e.g., Reliance 45C942, 45C946, or modules from the AutoMate 45Cxx series). Key parameters include:

Input Voltage Range: The nominal voltage and acceptable voltage range for activation (e.g., 24V DC nominal, 10-30V DC range; 115V AC nominal, 85-132V AC range).
Input Current: The current drawn by the module when an input is active (e.g., 7mA for a 115VAC input).
Number of Channels: The quantity of discrete input points on a single module (e.g., 8, 16, or 32 channels).
Response Time: How quickly the module detects a change in input state and updates the controller (e.g., 9.5ms for some AC inputs).
Threshold Voltages: The specific "ON" and "OFF" voltage levels that the module recognizes (e.g., for 115V AC, "ON" might be >80V AC, "OFF" might be <60V AC).
Isolation Voltage: The dielectric strength, indicating the level of electrical isolation between the input circuit and the logic circuit (e.g., 2500 V RMS).
Input Impedance: The resistance of the input circuit (e.g., 18.1K Ohms at nominal voltage for 115V AC).
Operating Temperature: The ambient temperature range in which the module can reliably operate (e.g., 0 to 60°C or -25°C to 70°C).
Mounting Type: Typically rack-mounted within a PLC chassis or DIN rail mounted.

Product Advantages

Reliability: Engineered for dependable performance in demanding industrial environments, ensuring consistent signal detection.
Robustness: Built to withstand industrial conditions, including electrical noise, vibration, and temperature fluctuations, leading to long operational life.
Electrical Isolation: Protects sensitive control electronics from damaging voltage surges and noise from field devices, enhancing system integrity.
Easy Diagnostics: Integrated LED indicators provide quick visual confirmation of input status, simplifying troubleshooting and reducing maintenance time.
Modularity: Allows for flexible system design and easy expansion or replacement of input points as needs change.
Compatibility: Designed to seamlessly integrate with Reliance Electric's own PLC and DCS systems (like AutoMate and AutoMax), ensuring consistent performance.

Important Considerations

Voltage and Current Matching: Always verify that the input voltage and current ratings of the module match the signals provided by the field devices. Connecting an incompatible voltage can damage the module.
Input Type (Sinking/Sourcing): For DC inputs, ensure the module's input type (sinking NPN or sourcing PNP) matches the output type of the sensor. Incorrect matching will prevent proper operation.
Wiring Practices: Adhere to strict industrial wiring standards, including proper wire gauge, shielding, and grounding to minimize noise interference and ensure signal integrity.
Environmental Conditions: Install the module within its specified operating temperature, humidity, and vibration limits. Exposure to conditions outside these ranges can affect performance and lifespan.
Legacy Support: As Reliance Electric product lines have evolved under ABB/Baldor, new modules might be scarce. For older systems, consider the availability of spare parts or plan for system upgrades.
ESD Protection: Handle modules with care, as they contain static-sensitive components. Use anti-static precautions during installation and removal.
