30FR7731 RELIANCE

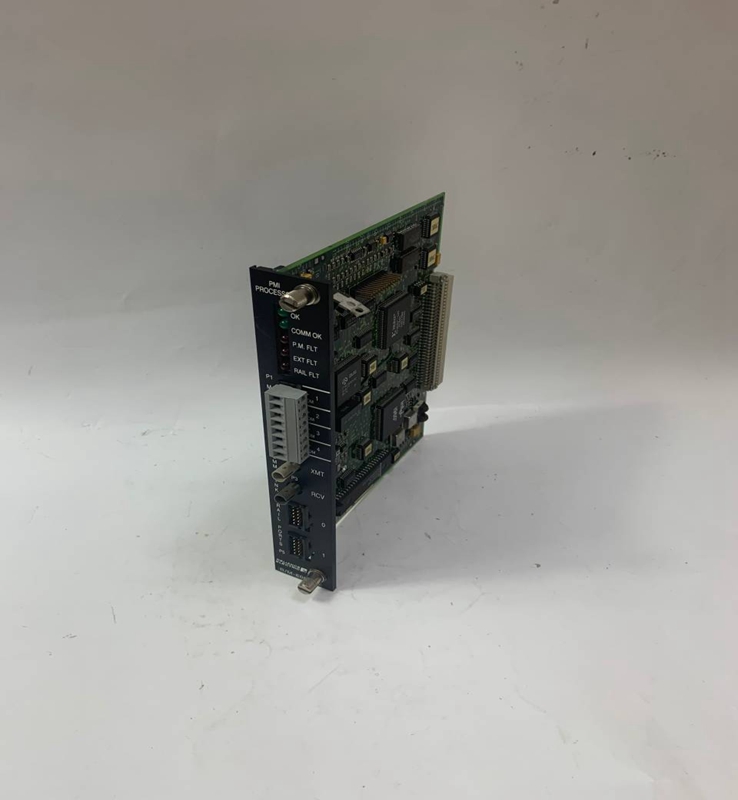

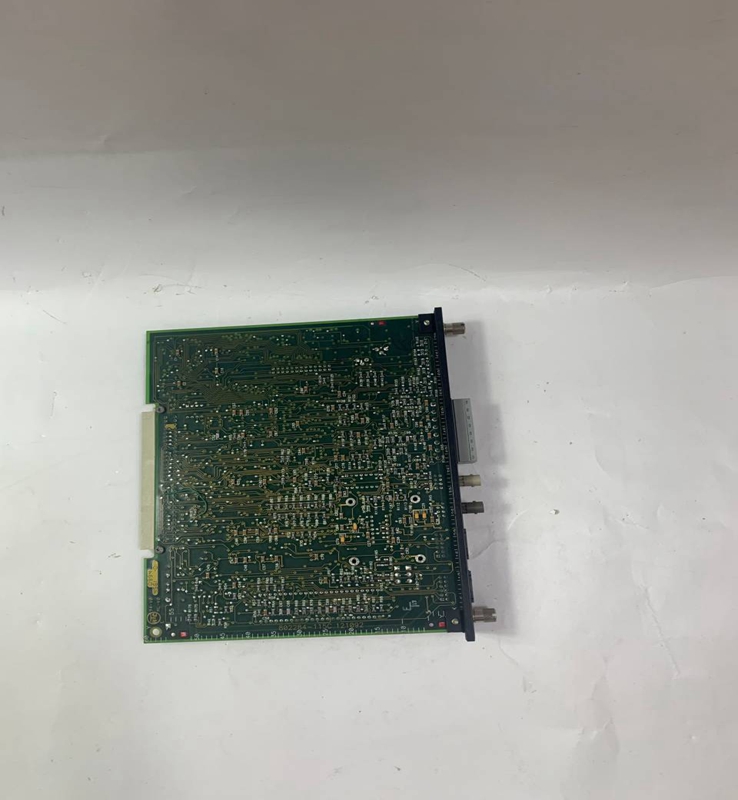

Reliance 30FR7731 Control Unit

Brand：RELIANCE Model number：30FR7731

Country of origin: United States Product weight：0.55kg

HS code：9032899099

Product Details：

Product Dimensions：

A Reliance control unit, such as a PLC from the legacy AutoMate series or a specialized drive controller, is the central processing unit (CPU) of an industrial automation system. It's designed to automate a wide range of industrial processes by executing a user-defined program. These rugged, microprocessor-based modules read data from field devices through input modules, process that data according to a program (often written in ladder logic), and then send commands to output modules to control machinery.

Key functions of these control units include:

Logic Execution: They perform logical operations, timing, counting, and arithmetic calculations.
Data Handling: They can manage and store process data for monitoring and reporting.
Sequential Control: They are ideal for automating step-by-step processes common in manufacturing.
Communication: They provide a communication hub, allowing the system to interface with other controllers, human-machine interfaces (HMIs), and SCADA systems.

Product Parameters

Specific parameters for Reliance control units vary by model and product line. Here are some common specifications:

Processor: Microprocessor-based, with varying speeds measured in milliseconds per thousand instructions (ms/K).
Memory: Typically includes non-volatile memory for program and data storage to protect against power loss. Memory size can range from a few kilobytes to several megabytes.
I/O Capacity: Defines the maximum number of input/output points the controller can manage. This can range from a few dozen to over 2,000 I/O points for more complex systems.
Communication Ports: Includes serial ports like RS-232 and RS-485, and sometimes proprietary network interfaces like R-NET. Some advanced units may have Ethernet capabilities.
Programming Language: The primary language is usually ladder diagram (ladder logic), which is widely used in industrial automation. Some systems also support other languages like Control Block or BASIC.
Power Supply: Requires a specific DC or AC voltage input, such as 24V DC or 120/240V AC.
Operating Environment: Designed for industrial use with a wide operating temperature range (e.g., -25°C to 70°C) and resistance to vibration and electrical noise.

Product Advantages

Reliance control units were known for their robust design and reliable performance.

Durability: Built to withstand harsh industrial environments, which extends their service life and minimizes downtime.
Reliability: The controllers are engineered for stable and continuous operation, which is critical for maintaining consistent production.
Flexibility: The modular design of many Reliance control systems allows users to easily add or change I/O modules to adapt to new application requirements without replacing the entire controller.
Precise Control: For specialized applications, like those with motor drives, the units offer precise control over speed, torque, and position.
Legacy Support: For existing systems, these units' durability means they are still in operation, and their technical documentation is often available, simplifying maintenance.

Important Considerations

When dealing with legacy Reliance control units, it's crucial to be aware of a few key points.

Product Obsolescence: Many of these products are no longer manufactured, which can make it difficult and expensive to find new modules or spare parts. It's wise to have a plan for potential system upgrades.
Software Compatibility: Older controllers require specific, often outdated, programming software and hardware interfaces. Ensuring you have access to the correct tools is essential for any programming or troubleshooting.
Safety: Always implement external, hardwired emergency stop circuits that are separate from the controller's logic to ensure critical safety functions work even if the controller fails.
Documentation: Always refer to the original product manuals for detailed wiring diagrams, installation instructions, and specifications.
