45C20A RELIANCE

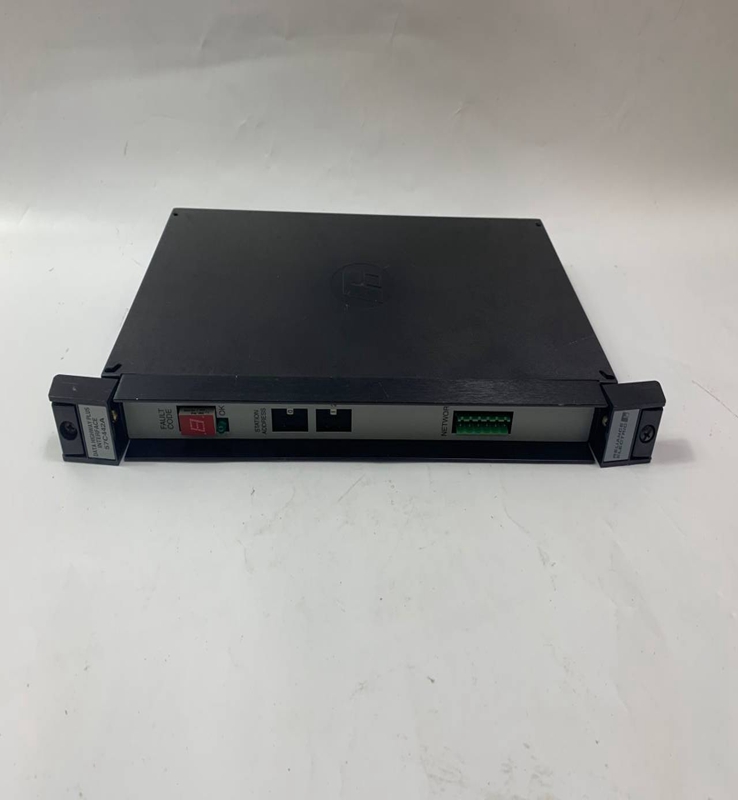

Reliance 45C20A Power Board

Brand：RELIANCE Model number：45C20A

Country of origin: United States Product weight：0.55kg

HS code：9032899099

Product Details：

Product Dimensions：

A power board in a power plant is a centralized assembly of electrical components that distributes and controls electrical power. It can be a low, medium, or high-voltage switchgear panel, a motor control center, or a dedicated protection and control panel. These boards typically house:

Switchgear: Circuit breakers, disconnectors, and fuses for controlling power flow and isolating equipment.
Busbars: Heavy-duty copper or aluminum conductors for distributing power to different circuits.
Protection Relays: Smart devices that detect electrical faults like overcurrents, short circuits, or voltage anomalies and trip circuit breakers to prevent damage.
Control Devices: Manual switches, buttons, and indicators for local control and status monitoring.
Metering Instruments: Equipment to measure and display electrical parameters like voltage, current, power, and frequency.
Enclosures: Robust steel cabinets that protect the internal components from the environment and ensure personnel safety.

Product Parameters (Conceptual)

The parameters are highly specific to the application, but common ones include:

Voltage Rating: The nominal operating voltage, ranging from low voltage (e.g., 400V) for auxiliary systems to medium and high voltage (e.g., 11kV, 33kV, 400kV) for main power distribution.
Current Rating: The maximum continuous current the board and its components can safely handle.
Short-Circuit Withstand Rating: The maximum fault current the board can withstand for a brief period without sustaining damage.
Ingress Protection (IP) Rating: A measure of protection against solid objects and liquids.
Insulation Class: The thermal rating of the insulating materials used.
Material: Typically steel with a protective finish to resist corrosion.
Standards: Compliance with international and national electrical standards (e.g., IEC, ANSI).

Product Advantages (Conceptual)

Enhanced Safety: Provides critical protection for personnel and expensive equipment from electrical faults.
Reliable Operation: Designed for continuous duty and high performance to ensure uninterrupted power generation and distribution.
Improved Efficiency: Optimizes power distribution to reduce energy losses and improve the overall efficiency of the plant.
Simplified Control: Centralizes control and monitoring functions, making it easier for operators to manage the electrical system.
Robustness: Engineered to withstand the demanding conditions of power plants, including temperature variations, dust, and vibration.

Important Considerations (Conceptual)

System Integration: The board must be custom-designed to integrate seamlessly with the specific layout and electrical requirements of the power plant or substation.
Environmental Factors: The design must account for the specific operating environment, including temperature, humidity, and the potential presence of corrosive agents.
Maintenance and Accessibility: Easy access to components for routine maintenance and troubleshooting is essential to minimize downtime.
Regulatory Compliance: The design and installation must adhere to all relevant local and national electrical codes and safety regulations.
Life Cycle Management: As these boards are long-term assets, planning for future upgrades and the availability of spare parts is crucial.

45C312 RELIANCE

We have the same series of models in stock. If you don't find the model you need, please contact us and we will provide you with an official quotation！
