1SU21005 RELIANCE

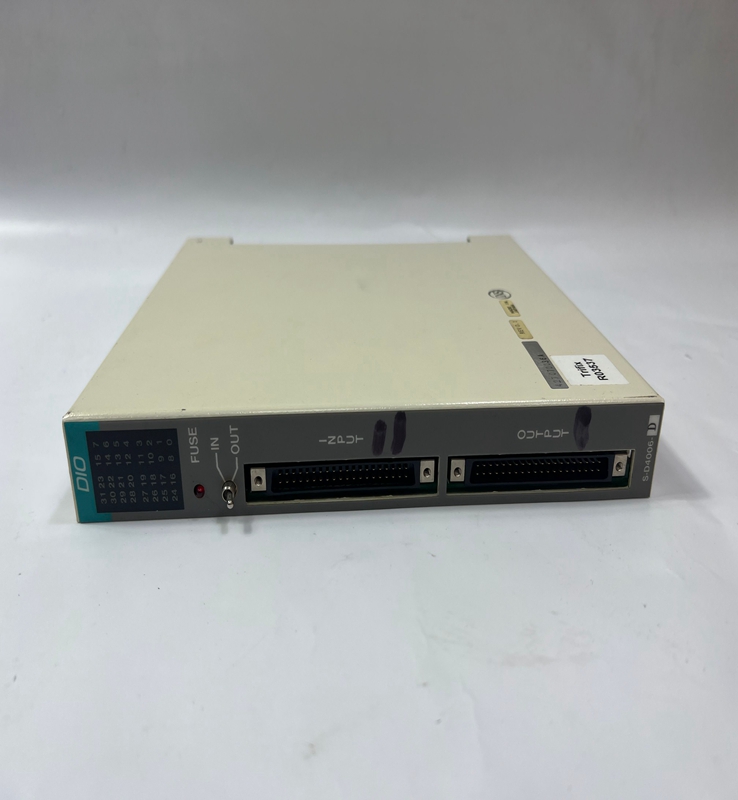

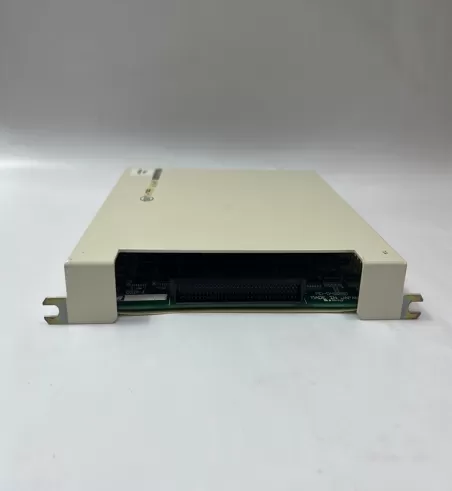

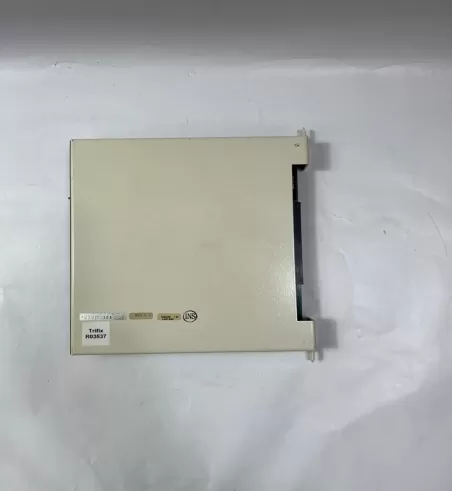

Reliance 1SU21005 Basis unit

Brand：RELIANCE Model number：1SU21005

Country of origin: United States Product weight：0.55kg

HS code：9032899099

Product Details：

Product Dimensions：

A Reliance Basis Unit in the context of industrial control systems would refer to the fundamental, core processing unit of a programmable logic controller (PLC) or a similar control platform. This unit forms the backbone of the automation system, executing control logic, managing data, and coordinating communication with other modules and devices.

Product Details

Core Processing: The Basis Unit houses the central processing unit (CPU) that executes the user-programmed logic, often written in languages like ladder logic, function block diagram, or structured text.
Memory: It contains memory for storing the control program, configuration data, and process variables (inputs, outputs, internal registers).
Backplane or Bus: It provides the primary communication backplane or bus for connecting and communicating with various I/O modules, communication modules, and other expansion units.
Power Supply Interface: It typically has an interface for the system's power supply, converting incoming power to the appropriate voltage levels for internal operation and for powering connected modules.
Communication Ports: Basis Units usually include built-in communication ports (e.g., serial, Ethernet) for programming, HMI (Human Machine Interface) communication, and network connectivity to other control systems or supervisory software.
Diagnostic Indicators: LEDs or other indicators are often present to provide visual status of the unit's operation, power, and any errors.

Product Parameters (Typical for a Historical Reliance PLC Basis Unit)

Processor Type: Specialized industrial microprocessor.
Program Memory: Ranges from kilobytes to megabytes, depending on the model and generation.
Data Memory: Allocation for various data types, timers, counters, and registers.
Scan Time (Execution Speed): Measured in milliseconds (ms), indicating how quickly the CPU can execute the entire control program.
I/O Capacity: While the Basis Unit itself doesn't have direct I/O, it defines the maximum number of I/O points that the system can support through connected I/O modules.
Communication Protocols: Support for various industrial protocols such as Modbus, proprietary Reliance protocols, and potentially later Ethernet-based protocols.
Power Requirements: Typically 24V DC or 120/240V AC.
Operating Temperature: Designed for industrial environments, typically -25°C to 60°C.
Mounting: Often DIN rail mountable or panel mountable.

Product Advantages

Centralized Control: Provides a single point for executing and managing the entire control logic of an automated process.
Robustness: Designed to withstand harsh industrial conditions, including vibrations, temperature fluctuations, and electrical noise.
Reliability: Built for continuous, long-term operation with high mean time between failures (MTBF).
Modularity and Expandability: As part of a PLC system, the Basis Unit allows for flexible expansion by adding various I/O and communication modules.
Deterministic Operation: Ensures that control logic is executed in a predictable and consistent manner, crucial for real-time control.
Programming Flexibility: Supports various programming languages to suit different application complexities and programmer preferences.

Important Considerations

Application Complexity: Choose a Basis Unit with sufficient processing power and memory for the intended application.
I/O Requirements: The Basis Unit dictates the maximum I/O capacity, so ensure it can support all necessary inputs and outputs.
Communication Needs: Verify that the unit supports the required communication protocols for integration with HMIs, SCADA systems, and other controllers.
Environmental Factors: Ensure the installation environment meets the unit's specifications for temperature, humidity, and vibration.
Programming Software: Specific software tools are required to program and configure the Basis Unit. Ensure compatibility and availability.
Obsolescence: For older Reliance Electric systems, component obsolescence and availability of spare parts or technical support may be a concern. Modernization might be necessary.
Cybersecurity: For networked systems, security considerations are paramount to protect against unauthorized access or malicious attacks.

Product Applications

Discrete Manufacturing: Control of assembly lines, packaging machinery, and material handling systems.
Process Control: Automation of batch processes, continuous flow systems in chemical plants, food processing, and pharmaceuticals.
Machine Automation: Providing intelligent control for individual machines, such as presses, CNC machines, and robots.
Building Automation: Managing HVAC systems, lighting control, and access systems in large commercial or industrial buildings.
Infrastructure: Control of water treatment plants, power distribution systems, and transportation networks.
