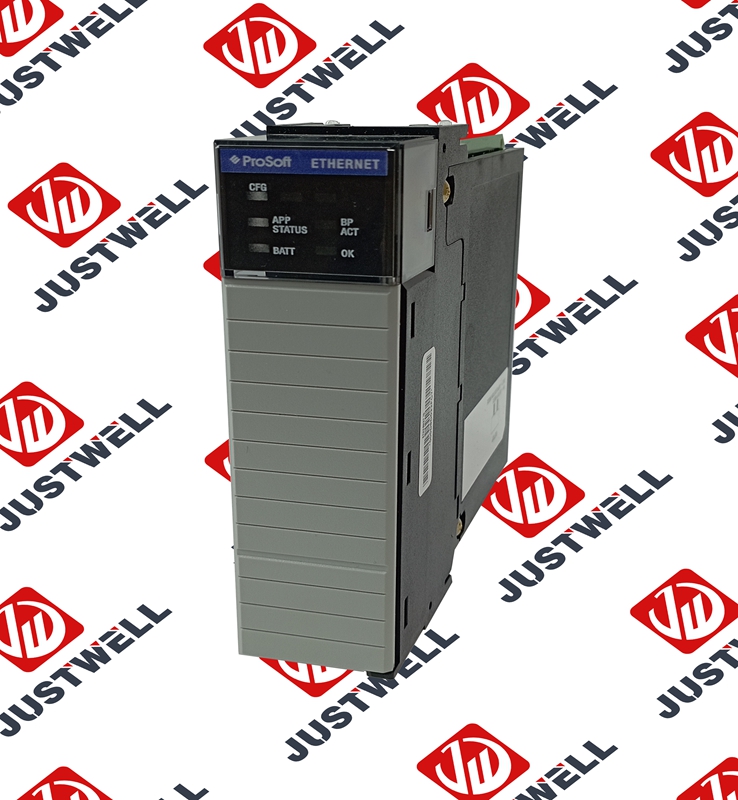

PROSOFT MVI56-104S Gate Module
Brand：PROSOFT Model number：MVI56-104S

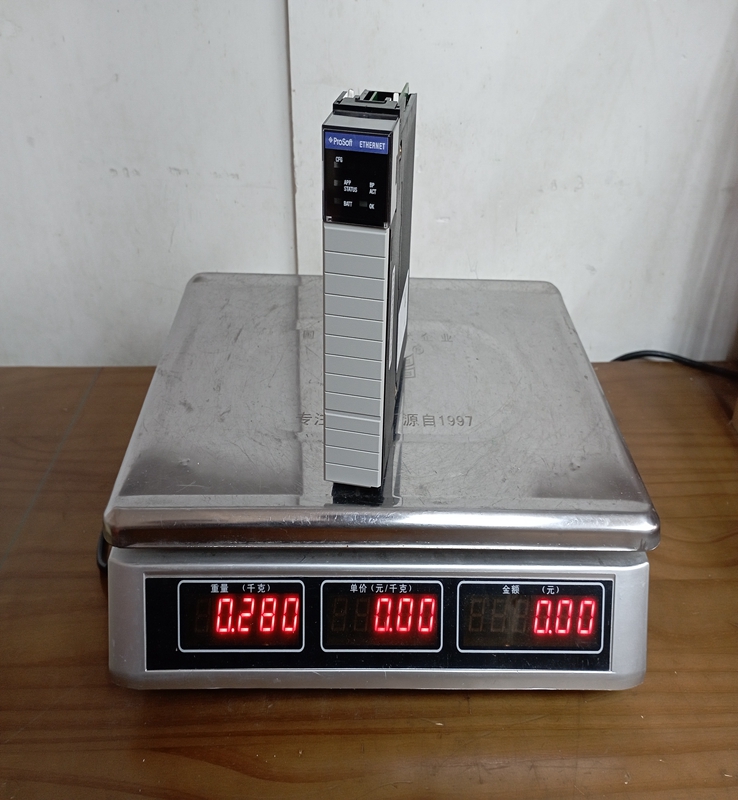

Country of origin:the States Product weight：0.55kg
HS code：8517623990
Product Details：
Product Dimensions：
The MVI56-104S acts as an Input/Output (I/O) module within the ControlLogix chassis. Its primary function is to serve as a communication gateway between the ControlLogix backplane and an external IEC 60870-5-104 client (or master) on an Ethernet network.
Platform: Rockwell Automation ControlLogix
Module Type: Single-slot, in-chassis communication module
Protocol: IEC 60870-5-104 Server
Data Exchange: It uses a shared 4000-word internal register space to exchange data asynchronously between the ControlLogix processor's memory and the external network.
Mode of Operation: It functions as a Server on the network, accepting data read/write commands from external IEC 60870-5-104 Clients/Masters.
Compatibility: Single Slot, 1756 backplane compatible (Local or Remote Rack)
Backplane Current Load: $800 \text{ mA}$ at $5.1 \text{ VDC}$; $3 \text{ mA}$ at $24 \text{ VDC}$
Operating Temperature: $0 \text{°C}$ to $60 \text{°C}$ ($32 \text{°F}$ to $140 \text{°F}$)
Storage Temperature: $-40 \text{°C}$ to $85 \text{°C}$ ($-40 \text{°F}$ to $185 \text{°F}$)
Shock (Operational): $30 \text{ g}$
Vibration: $5 \text{ g}$ from $10 \text{ Hz}$ to $150 \text{ Hz}$
Relative Humidity: $5\%$ to $95\%$ (non-condensing)
Ethernet Port: $10/100 \text{ Base-T}$ with an RJ45 connector.
Configuration Port (CFG): $\text{RJ45}$ connector, $\text{RS-232}$ only (used for module configuration/debugging).
Key Features:
Supports Time Stamping and True Report by Exception (TRBE), allowing the module to send real-time data reports without being polled.
Supports unsolicited messages (spontaneous or cyclic).
Supports clock synchronization commands.
Seamless Integration: It is an in-chassis solution that plugs directly into the ControlLogix rack, simplifying installation and wiring while integrating tightly with the backplane.
High Performance: Data transfer between the module and the ControlLogix processor is asynchronous from the network actions, ensuring minimal impact on the processor's scan time.
SCADA Connectivity: It enables reliable and efficient communication between the ControlLogix platform and Supervisory Control and Data Acquisition (SCADA) systems that use the IEC 60870-5-104 protocol, which is a standard for telecontrol.
Time-Critical Data Handling: Features like time stamping and Report by Exception allow for the accurate and timely reporting of critical events, which is essential for monitoring and control in utility and power applications.
Configuration: The module requires proper configuration, typically using the ProSoft Configuration Builder (PCB) software and sample ladder logic, to map the ControlLogix data tags to the module's internal register space.
Power Disconnection: Always disconnect power to the ControlLogix chassis before inserting or removing the module to prevent electrical shock or damage.
Environmental Protection: The module must be installed in a suitable industrial enclosure that provides protection against dust and moisture, as specified in the general safety guidelines (e.g., in accordance with Class I, Division 2 wiring methods for hazardous locations, where applicable).
Compatibility Check: Ensure that the module's firmware and software configuration files (EDS) are compatible with the specific version of the ControlLogix processor and development environment (e.g., Studio 5000/RSLogix 5000).
The MVI56-104S module is primarily used in industries requiring reliable, real-time communication between local control systems (ControlLogix) and wide-area monitoring and control systems (SCADA) using the IEC 60870-5-104 protocol.
Power Industry: Communicating with substation automation systems and energy management systems (EMS).
Water Treatment: Connecting plant PLCs to centralized SCADA for water/wastewater treatment facilities.
Oil and Gas: Linking field devices and local control units (RTUs) to a central SCADA host.
Telecontrol Systems: Any application where remote monitoring, control, and event reporting is required over an Ethernet network using this specific international standard.
We have the same series of models in stock. If you don't find the model you need, please contact us and we will provide you with an official quotation！
PROSOFTILX56-MM
PROSOFT PLX32-EIP-MBTCP-UA
PROSOFT MV156-PDPMV1
PROSOFT PLX51-PBM
PROSOFT PLX32-EIP-PND
PROSOFT PLX51-HART-4I
PROSOFT PLX51-DF1-ENI
PROSOFT MV156E-MNETR

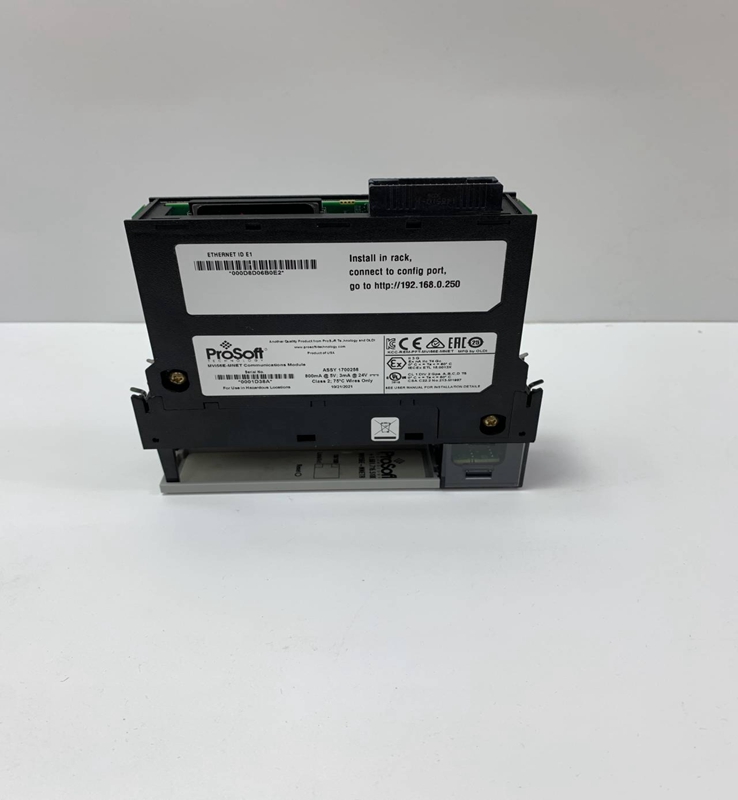

PROSOFT ILX56-PBM
