E1041 Beijer

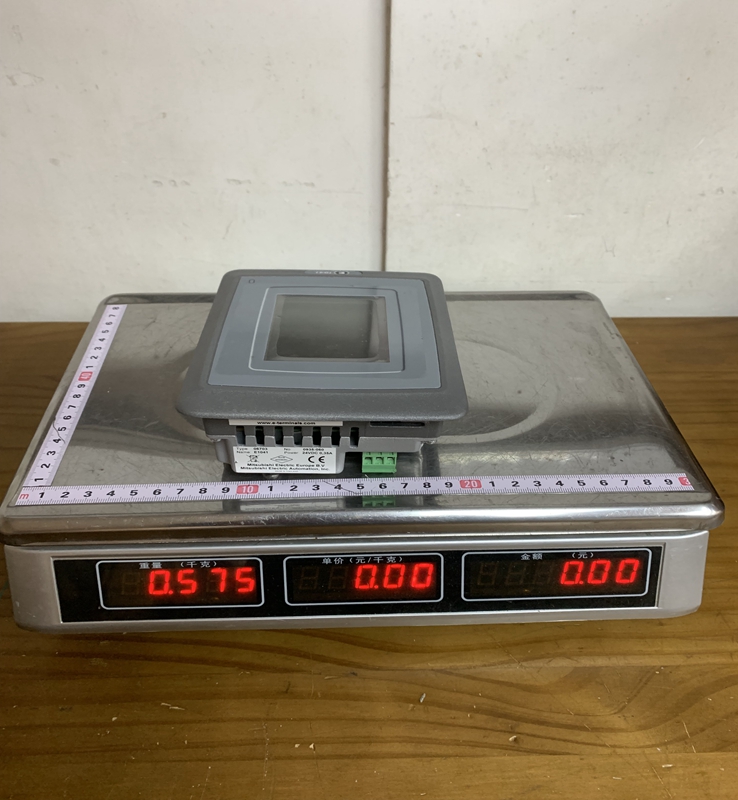

Product Dimensions：

The E1041 is an evolution within the Beijer EXTER family, featuring a rugged construction suitable for harsh industrial environments. Unlike touchscreen-only models, the E1041 utilizes a combination of a high-quality display and tactile function keys, making it ideal for applications where operators may be wearing gloves or where precise physical feedback is required. The unit runs on the proprietary Information Designer software, which allows for complex screen development, alarm handling, and data logging. It is equipped with multiple communication ports to interface simultaneously with various PLCs, drives, and other peripheral devices.

Product Parameters

• Display Type: 3.5-inch TFT-LCD with 64,000 colors providing sharp visual clarity.

• Resolution: $320 \times 240$ pixels (QVGA).

• Operator Input: 16 membrane-style function keys with tactile feedback and a dedicated numeric keypad.

• Processor: 32-bit RISC processor for high-speed graphics rendering and data processing.

• Memory: 12 MB Flash memory for project storage and 32 KB for recipe/retentive data.

• Communication Ports: One RS-232 port, one RS-422/485 port, and one integrated 10/100 Base-T Ethernet port.

• Expansion: Includes a USB host port for connecting peripherals like printers or memory sticks.

• Input Voltage: $24 \text{ VDC}$ (operating range of $18 \text{ to } 32 \text{ VDC}$).

• Enclosure Rating: IP66/NEMA 4X front panel protection when properly mounted in a cabinet.

• Operating Temperature: $0\text{°C}$ to $50\text{°C}$ ($32\text{°F}$ to $122\text{°F}$).

Product Advantages

A primary advantage of the E1041 is its Exceptional Communication Flexibility. It supports hundreds of communication drivers, allowing it to talk to almost any PLC brand including Siemens, Rockwell, Mitsubishi, and Schneider. The Tactile Keypad Design is a significant benefit for heavy industrial settings where touchscreens might be prone to damage or accidental triggers. The Superior Display Quality ensures that even complex graphical trends and alarm icons are easily readable under varying light conditions. Furthermore, the Compact Form Factor allows it to be installed in small control panels or directly on machinery where space is at a premium, without sacrificing the processing power found in larger units.

Important Considerations and Precautions

When installing the E1041, it is essential to ensure that the Gasket Integrity is maintained; any crimps or dirt on the rear seal will compromise the IP66 rating and allow moisture to enter the cabinet. Regarding Power Stability, while the unit handles a range of $24 \text{ VDC}$, significant brownouts or spikes can cause the internal file system to corrupt, so a filtered power source is recommended.

Users should be aware that the Backlight Life is finite; utilizing the "Screen Saver" or "Auto-Dim" function within the software settings will significantly extend the life of the LCD. Additionally, when cleaning the front membrane, avoid using Harsh Chemical Solvents or abrasive pads, as these can cloud the display window or degrade the membrane keys. Finally, always ensure the Firmware Version of the E1041 matches the version used in the Information Designer project to prevent communication errors or unexpected reboots.

Product Applications

The Beijer E1041 is utilized across diverse sectors due to its reliability and communication prowess.

• Marine and Offshore: Monitoring engine parameters and navigation data on vessels where physical buttons are preferred over touchscreens due to motion and moisture.

• Food and Beverage: Controlling small-scale bottling or packaging lines where frequent washdowns occur and the IP66 rating is vital.

• HVAC Systems: Serving as a central control point for large-scale climate control and ventilation systems in commercial buildings.

• Water Treatment: Managing pump stations and filtration cycles, utilizing the Ethernet port for remote data telemetry.

• Machine Tooling: Integrated into CNC auxiliary stations for tool management and simple manual overrides.

We have the same series of models in stock.  If you don't find the model you need, please contact us and we will provide you with an official quotation！

BEIJERQTERM-K65

BEIJERE300-04380A

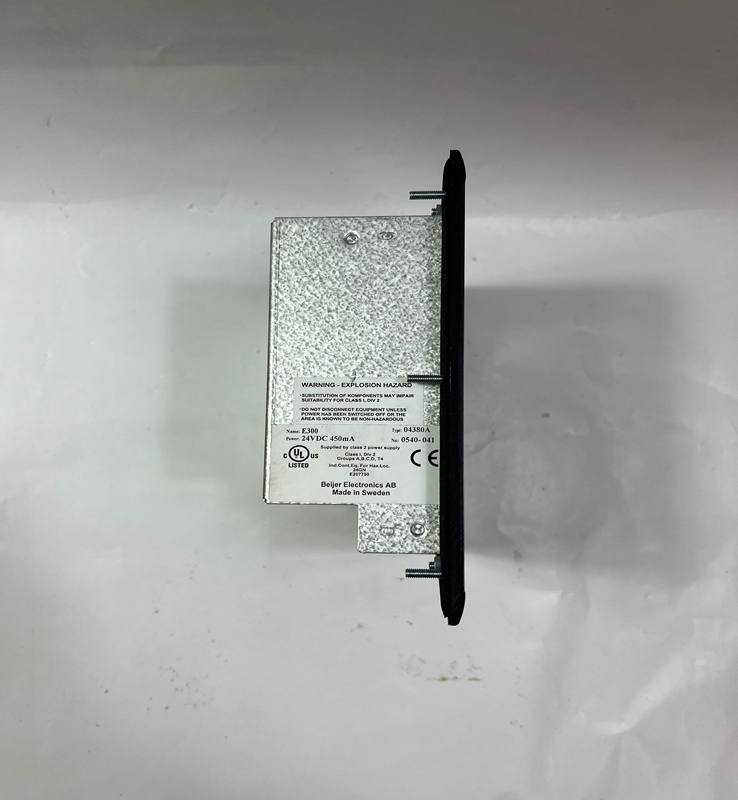

BEIJERELECTRONICS E300 04380A
