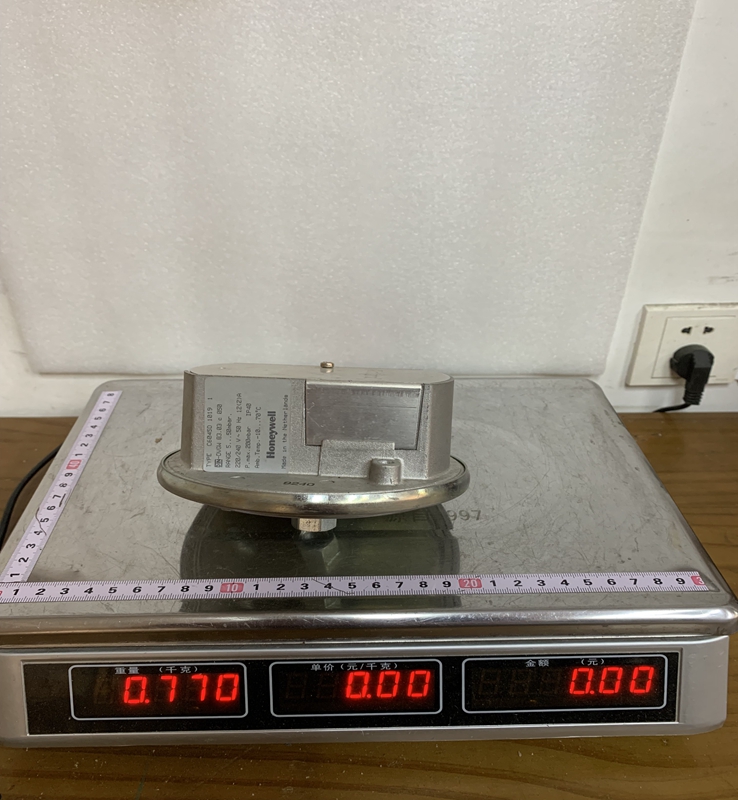

The C6045D1050 belongs to Honeywell's rugged C6045 series of pressure switches. It functions by sensing the pressure of a specific gas medium and opening or closing an internal electrical circuit when the pressure reaches a set point. This specific model is typically used as a break-on-rise or break-on-fall safety limit device, preventing the burner from firing if the fuel pressure is either too low or too high. The outer casing is engineered to withstand harsh mechanical environments, and the unit features a clear, easily readable adjustment scale for precise field calibration.

Product Parameters

• Product Type: Gas Pressure Switch

• Pressure Range: Typically spans a medium-pressure control spectrum, specific to burner main fuel lines.

• Switch Type: Single-pole, single-throw (SPST) or single-pole, double-throw (SPDT) snap-acting microswitch depending on the wiring terminals used.

• Electrical Ratings: Designed to handle standard industrial control circuit voltages, commonly up to $120 \text{ VAC}$ or $240 \text{ VAC}$ at standard pilot duty currents.

• Medium Compatibility: Suitable for natural gas, liquid petroleum (LP) gas, and manufactured gases.

• Enclosure Rating: Typically NEMA 1 or NEMA 4 depending on whether the optional conduit cover and seals are utilized.

• Ambient Temperature Limits: Engineered to operate reliably in ambient conditions from $-40\text{°C}$ to $66\text{°C}$ ($-40\text{°F}$ to $150\text{°F}$).

• Connection Port: Standard internal pipe thread (typically $1/4 \text{ inch}$ NPT) for direct mounting onto a gas manifold.

Product Advantages

A major advantage of the C6045D1050 is its High Repeatability and Accuracy. The internal diaphragm mechanism is highly sensitive, ensuring that the switch trips exactly at the programmed setpoint, minimizing the risk of hazardous fuel-to-air ratios in the burner. The Rugged Construction guarantees long-term durability, preventing pressure leaks even after hundreds of thousands of cycles.

Additionally, the Visible Adjustment Scale simplifies field setup, allowing technicians to verify and change the pressure threshold without needing specialized diagnostic tools. The unit also offers Flexible Mounting Options, allowing it to be installed directly onto a gas pipeline or panel-mounted via a bracket depending on the physical layout of the boiler room or industrial furnace.

Important Considerations and Precautions

When installing the C6045D1050, it is critical to verify that the Maximum Pressure Rating of the switch exceeds the highest possible surge pressure of the system; exposing the diaphragm to excessive pressure can rupture it, causing a dangerous gas leak. Leak Testing must be performed on all pneumatic connections using a certified soap solution or electronic gas detector immediately after installation.

Because this switch is part of a combustion safety circuit, Wiring Inspections should confirm that it is wired in series with the main safety shutoff valves to ensure immediate shutdown upon a pressure fault. Additionally, avoid mounting the switch in locations subject to extreme vibration, such as directly onto high-vibration fans or pumps, as this can cause the contacts to chatter and trigger false alarms. Finally, always Turn Off the Gas Supply before attempting to replace or remove the switch from an active manifold.

Product Applications

The Honeywell C6045D1050 is predominantly utilized in large-scale heating and thermal processing industries.

• Industrial Boilers: Monitoring the main gas train pressure to ensure that the fuel supply matches the required firing rate safely.

• Commercial Furnaces: Serving as a high/low gas pressure limit switch to protect large commercial HVAC systems.

• Ovens and Kilns: Integrated into the safety interlocking systems of high-temperature ceramic kilns or bakery ovens.

• Power Generation: Used in auxiliary gas fuel lines for small-scale turbines or co-generation plants to monitor pilot flame fuel supply.

• Incinerators: Ensuring proper fuel pressure is maintained for stable waste destruction cycles.
