51403427-175 HONEYWELL

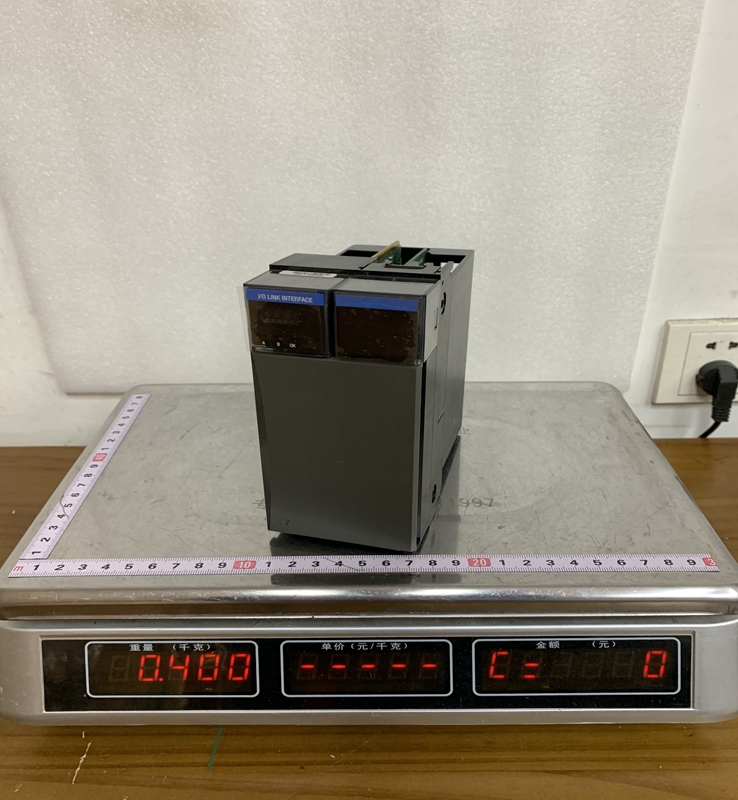

Product Dimensions：

The 51403427-175 functions as a smart signal processor that handles multiple analog input channels simultaneously. It is engineered to sit within the I/O rack of a Honeywell control system, communicating directly with the redundant controller bus. The card is "High-Level," meaning it is specifically designed to accept standard industrial signals rather than low-level millivolt signals like those from thermocouples. It includes onboard microprocessors to perform signal validation, filtering, and engineering unit conversion, which offloads these computational tasks from the main process controller.

Product Parameters

• Model Number: 51403427-175

• Input Type: High-Level Analog Input (HLAI)

• Signal Range: Typically supports $1-5 \text{ VDC}$ or $4-20 \text{ mA}$ (with a precision $250 \text{ \Omega}$ resistor at the termination block)

• Channel Density: Usually supports 16 differential input channels per card

• Resolution: 16-bit analog-to-digital conversion for high precision

• Common Mode Rejection: High rejection ratio to minimize electrical noise interference

• Power Consumption: Optimized for low heat dissipation within the I/O cabinet

• Scanning Rate: High-speed internal scanning typically ranging from $10 \text{ ms}$ to $250 \text{ ms}$ depending on system configuration

• Redundancy: Supports 1-to-1 redundancy when used with a redundant I/O carrier

Product Advantages

One of the primary advantages of the 51403427-175 is its Inherent Reliability. Honeywell’s TDC and Experion series are known for "six nines" availability, and this card is built with industrial-grade components to prevent failures in 24/7 operations. The Distributed Intelligence of the card is another benefit; by performing square root extraction, linear scaling, and digital filtering onboard, it ensures the main controller receives "clean" data, improving overall system response time.

The card also offers Hot-Swap Functionality, allowing maintenance teams to replace a faulty module in a redundant pair without interrupting the active control loop. Furthermore, the Advanced Diagnostics capabilities allow the system to detect open circuits or out-of-range sensors instantly, providing operators with actionable alerts before a process upset occurs.

Important Considerations and Precautions

When installing or maintaining the 51403427-175, it is vital to observe Electrostatic Discharge (ESD) Protection. These cards contain sensitive CMOS components that can be damaged by static charges invisible to the human eye; always use a grounded wrist strap when handling the module. Compatibility Checks are also essential; ensure the card's firmware revision is compatible with your current version of the Honeywell Control Functions (HCF) or Experion software.

Another critical precaution involves Termination Block Wiring. If using $4-20 \text{ mA}$ loops, ensure the precision shunt resistors are properly seated on the associated FTA (Field Termination Assembly), as the card itself measures voltage. Finally, never force the card into the I/O slot. If there is resistance, check for bent pins on the backplane, as Pin Realignment is difficult and can lead to permanent damage to the expensive I/O rack.

Product Applications

The Honeywell 51403427-175 is a standard choice for large-scale industrial processes that require high-precision monitoring of analog variables.

• Oil Refineries: Monitoring pressure and flow transmitters across distillation columns and catalytic crackers.

• Chemical Plants: Precise measurement of tank levels and temperature transmitters in reactor vessels.

• Power Generation: Tracking steam pressure and turbine speeds where signal accuracy directly impacts plant efficiency.

• Pulp and Paper: Controlling the flow of chemicals and water through high-speed processing machinery.

• Water Treatment: Managing large-scale filtration and chemical dosing systems that rely on continuous $4-20 \text{ mA}$ feedback loops.

We have the same series of models in stock.  If you don't find the model you need, please contact us and we will provide you with an official quotation！

Honeywell80363975-150 MC-PDOY22

Honeywell 2MLL-EFMT-CC

Honeywell 2MLR-E12H

Honeywell 14CE3-2

Honeywell 14CE2-2

Honeywell LDVS-5204S

Honeywell R4348-A/1026

Honeywell SPXCDDMF12

Honeywell SPXCDTMF12

HoneywellR7848A1004

Colour：new                                   Warranty: 12 months

Lead Time：3-day working day      Price: Please contact us

Shipping Port: Xiamen, China         Payment:T/T

Express cooperation: fedex, DHL, UPS and your express account

Service: Professional Sales provides 24 hours /7 days online service
