SELA36AT0100 GE FANUK

SELA36AT0100 GE Fanuc Input module

Brand：General Electric Model number：SELA36AT0100

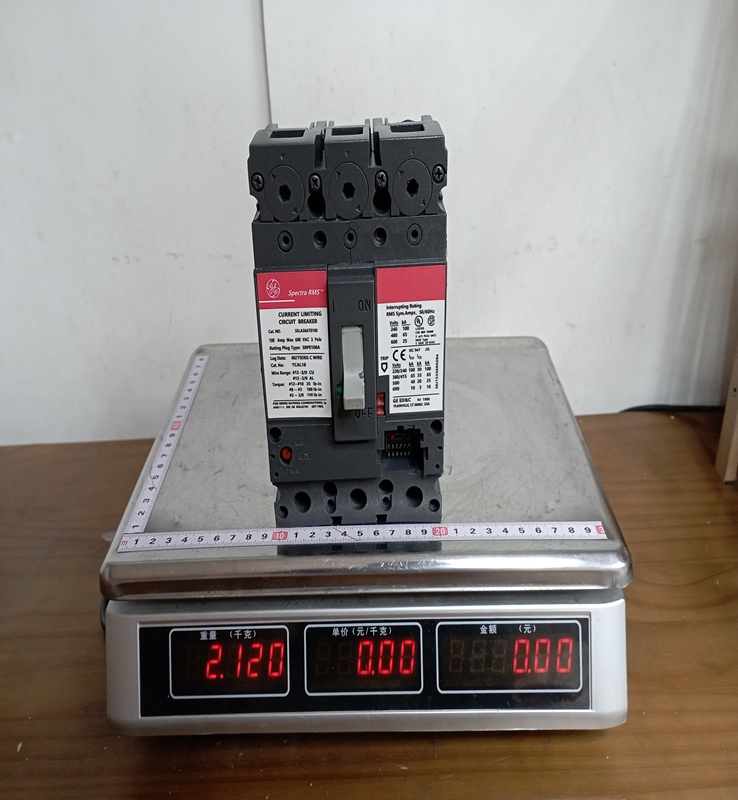

Country of origin: U.S. Product weight：0.55kg

HS code：8517623990

Product Details：

Product Dimensions：

The SELA36AT0100 is built on the SE150 frame and features a sophisticated digital RMS sensing trip system. Unlike traditional thermal-magnetic breakers, it uses digital sampling to determine the true RMS value of both sinusoidal and non-sinusoidal currents, making it highly accurate even in environments with high harmonic distortion. This specific model is a current-limiting type, designed to clear faults rapidly and reduce the stress on downstream equipment.

Product Parameters

Manufacturer: General Electric (GE), now under the ABB portfolio
Product Line: Spectra RMS
Frame Type: SE150
Amperage Rating: 100 Amps
Number of Poles: 3
Voltage Rating: 600 VAC
Interrupting Capacity (AIC Rating): 100 kAIC at 240 VAC, 65 kAIC at 480 VAC, and 25 kAIC at 600 VAC
Trip Unit Type: Electronic LSI (Long-Time, Short-Time, and Instantaneous)
Frequency: 50/60 Hz
Connection Type: Bolt-On
Wire Range: 12 to 3/0 AWG (Copper or Aluminum)
Special Markings: UL listed, CSA certified, and HACR (Heating, Air Conditioning, Refrigeration) rated

Product Advantages

The digital RMS sensing technology significantly reduces nuisance tripping by accurately distinguishing between harmless current spikes and genuine faults. A major advantage of the Spectra RMS line is the use of interchangeable, field-installable rating plugs, allowing users to modify the ampere rating of the breaker without replacing the entire unit. Its current-limiting design provides superior protection for sensitive industrial equipment by minimizing the energy let-through during a short circuit. Furthermore, the standardized internal accessories across the Spectra range simplify inventory management for large facilities.

Important Considerations

Installation and maintenance should only be performed by qualified electrical personnel. Before attempting any work, all power sources must be disconnected to prevent electrical shock. It is essential to ensure that the rating plug is correctly seated, as the breaker will not function without a valid rating plug installed. Users must also verify that the lugs and wiring are tightened to the specific torque values provided by the manufacturer to avoid overheating at the connection points. Note that while this breaker is suitable for reverse-feed applications, it should be mounted within an appropriate NEMA-rated enclosure to maintain environmental protection levels.

Product Applications

The SELA36AT0100 is ideally suited for demanding commercial and industrial power distribution systems. Common applications include protecting motor control centers (MCCs), panelboards, and switchboards. Because of its true RMS sensing, it is particularly effective in modern facilities utilizing non-linear loads such as variable frequency drives (VFDs), computer power supplies, SCR-controlled welders, and discharge-type lighting systems. It is also widely used in HVAC and refrigeration systems due to its HACR rating.
