IC200ALG230F GE Fanuc Input module

Brand：General Electric Model number：IC200ALG230F

Country of origin: U.S. Product weight：0.55kg

HS code：8517623990

Product Details：

Product Dimensions：

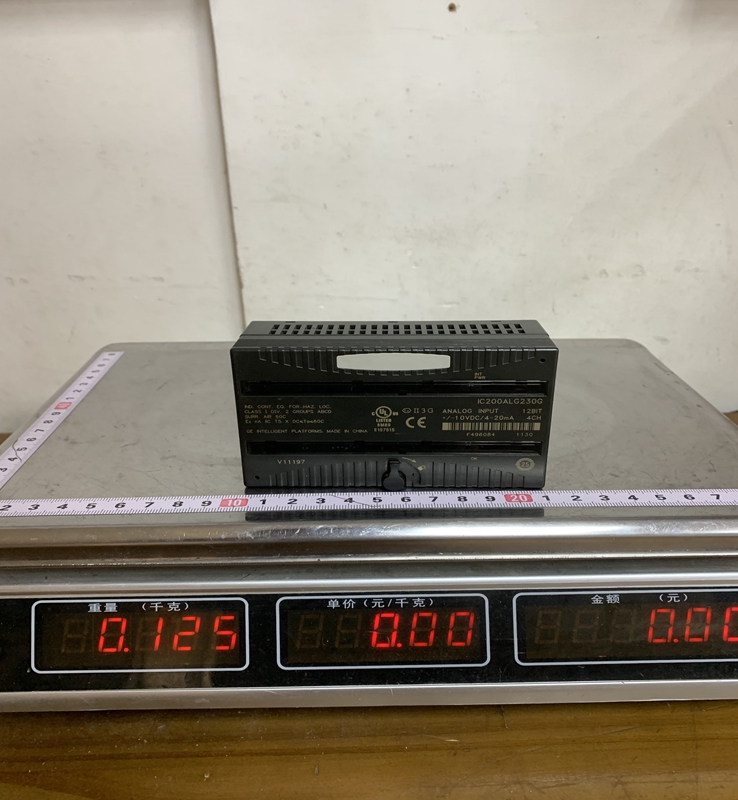

The IC200ALG230F is a 4-channel analog input module that provides 12-bit resolution for precise data conversion. It is designed to be a compact, modular component that snaps onto a VersaMax terminal base. This "F" revision typically denotes a specific hardware update or firmware version in the product's lifecycle, ensuring compatibility with modern VersaMax CPUs and Network Interface Units (NIUs). The module is "hot-swappable" when used with the appropriate terminal base, allowing for maintenance without shutting down the entire system.

Product Parameters

Number of Channels: 4 single-ended channels
Input Ranges: 0 to 10 Volts, -10 to +10 Volts, 4 to 20 mA, or 0 to 20 mA
Resolution: 12 bits (1 part in 4096)
Update Rate: Approximately 4 milliseconds for all 4 channels
Input Impedance: Greater than 500k Ohms for voltage mode and 250 Ohms for current mode
Power Consumption: 5V backplane current consumption is typically 25 mA; external 24V DC power is required for the analog circuitry, consuming approximately 80 mA
Isolation: 500V AC between the field side and the logic side
LED Indicators: One green "OK" LED to indicate the status of the module and backplane power

Product Advantages

High Versatility: The ability to software-configure each channel for either voltage or current signals reduces the need to stock multiple types of modules, lowering inventory costs.
Compact Footprint: The VersaMax design is highly space-efficient, making it ideal for distributed I/O applications where cabinet space is limited.
Ease of Maintenance: The module’s diagnostic features and LED status indicators allow technicians to quickly identify faults or power issues.
Robust Isolation: With 500V isolation between field wiring and the PLC backplane, the module protects sensitive control logic from electrical noise and surges present in industrial environments.

Important Considerations and Precautions

External Power Requirement: The module requires an external +24V DC power supply to operate the analog input circuits. Failure to provide this power will result in a "Module Not OK" status.
Shielding and Grounding: To maintain 12-bit accuracy and prevent signal interference, it is critical to use shielded twisted-pair cables for all analog inputs. The shields should be grounded at only one end, usually at the terminal base.
Terminal Base Compatibility: This module must be installed on a compatible IC200 terminal base (such as IC200TBT001 or IC200TBS001). Ensure the pins are properly aligned before snapping the module into place to avoid mechanical damage.
Current Loop Protection: When using 4-20 mA mode, ensure the external loop is correctly fused to prevent over-current conditions from damaging the internal 250-Ohm precision resistor.

Product Applications

The IC200ALG230F is widely used in factory automation and process control across various industries.

Environmental Monitoring: Interfacing with pressure, temperature, or humidity sensors that output standard 0-10V or 4-20mA signals.
Water and Wastewater: Monitoring flow rates from ultrasonic meters or level signals from submersible transducers.
HVAC Systems: Controlling dampers and monitoring air quality sensors in large-scale building automation.
Material Handling: Integrating with load cells or distance-measuring lasers to track inventory and machine positioning.
Power Generation: Monitoring auxiliary systems such as oil pressure or cooling water temperature in turbine or generator sets.

We have the same series of models in stock. If you don't find the model you need, please contact us and we will provide you with an official quotation！
