MMII-PD-1-2-240 GE Fanuc

MMII-PD-1-2-240 GE Fanuc Input module

Brand：General Electric Model number：MMII-PD-1-2-240

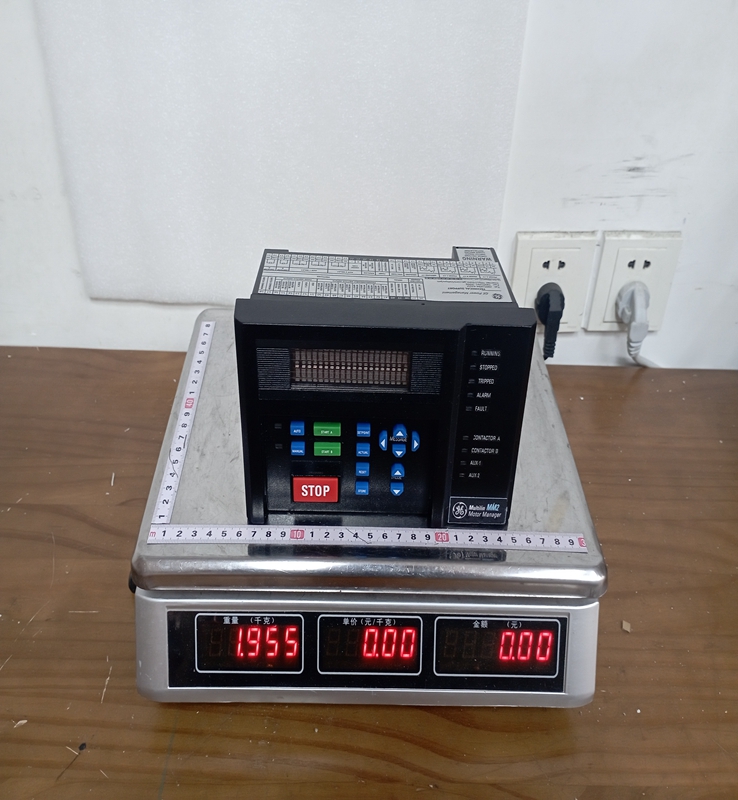

Country of origin: U.S. Product weight：0.55kg

HS code：8517623990

Inquire Now

Product Details：

Product Dimensions：

The MMII-PD-1-2-240 acts as a comprehensive motor terminal hub, integrating critical motor protection and advanced diagnostic tools into a single ecosystem. The specific nomenclature reveals its hardware build: the "PD" signifies a panel-mount design equipped with an integrated display and interface buttons; the "1" specifies the inclusion of Option Package 1, which adds process control, ten process inputs, undervoltage auto-restart, and diagnostics; the "2" denotes Option Package 2, which extends features to include enhanced protections such as ground fault and thermistor sensing; and "240" designates the internal control power stage rated for $240 \text{ VAC}$ . Real-time status monitoring and configuration can be handled through its front panel or remotely using GE’s EnerVista software platform.

Product Parameters

Product Family: Multilin Motor Manager II (MM2)
Model Configuration: MMII-PD-1-2-240
Control Voltage Power Supply: $240 \text{ VAC}$ (nominal range variation accepted at $50/60 \text{ Hz}$ )
Power Consumption: 7 VA nominal, up to a maximum of 25 VA
Measurement Accuracy: Single-phase current and parameter accuracy tracking within $\pm 2$ percentage points
Digital Inputs: 16 total inputs (6 fixed control inputs like Start/Stop plus 10 programmable process inputs), all optically isolated for high noise immunity
Output Relay Contacts: 4 total outputs consisting of 2 dedicated contactor control outputs and 2 programmable auxiliary relays rated for $10 \text{ A}$ at $250 \text{ VAC}$ resistive loads
Internal Protection Fuse: Rated at 0.5 A, 250 V, fast-blow type with a high breaking capacity
Communication Interface: RS485 physical port supporting Modbus RTU protocol with data rates selectable from 1200 to 19200 bits per second (bps)
Environmental Envelope: Operating limits between $0\text{°C}$ and $60\text{°C}$ , with faceplate physical protection conforming to NEMA Type 12 (IP53) metrics when panel-mounted

Product Advantages

A major benefit of the MMII-PD-1-2-240 is its Cost-Effective System Consolidation. By housing protection, custom starter logic, and communications inside a single module, it eliminates excess control panel components and extensive inter-device terminal wiring. The Advanced Process Autonomy provided by its undervoltage auto-restart package ensures that critical process motors seamlessly spin back up after brief voltage dips, preventing expensive plant outages.

Furthermore, the Robust Isolation Barriers on its 16 digital inputs protect the internal processor from the high-voltage transient spikes and electromagnetic noise frequently found in industrial motor control centers. Lastly, the unit’s Pre-Trip Data Capture registers exact operational parameters right at the moment of a system fault, giving electrical teams immediate clarity during troubleshooting.

Important Considerations and Precautions

When setting up or maintaining the MMII-PD-1-2-240, strict attention must be paid to Control Voltage Matching. Applying a standard $120 \text{ VAC}$ utility line to this unit will cause it to fail to power up or function erratically, while exceeding the $240 \text{ VAC}$ tolerance window will permanently destroy the primary transformer stage. Technicians must ensure the Internal Fuse Replacement always matches the specific 0.5 A fast-blow, high-breaking rating; substituting standard low-capacity fuses can lead to catastrophic internal module destruction under an internal fault condition.

For Ground Fault Sensing pathways, ensure that current transformers are oriented and wired correctly, as reverse polarity will skew the differential fault tracking. Additionally, when using the Hot Winding Thermistor input, always use shielded twisted-pair cabling separated from heavy motor leads to avoid induction noise triggering a false over-temperature motor trip.

Product Applications

The MMII-PD-1-2-240 is used globally across heavy process sectors where low-voltage motors drive critical continuous operations.

Motor Control Centers (MCCs): Providing localized intelligent control and digital communication networking for tier-one motor rows.
Pumping Stations: Managing water, wastewater, or chemical transfer pumps, protecting them against undercurrent states caused by dry running or blocked impellers.
Industrial Fan and Ventilation Systems: Directing multi-speed or reversing fan motors while preventing winding damage from repeated rapid starts or stalls.
Compressor Stations: Monitoring temperature profiles via thermistors and coordinating complex start/stop sequences alongside automated unloader valves.
Conveyor and Material Handling Systems: Integrating field interlocks and emergency stop signals through its 10 programmable inputs to safely halt transit lines during a material jam.
