P0916YY FOXBORO

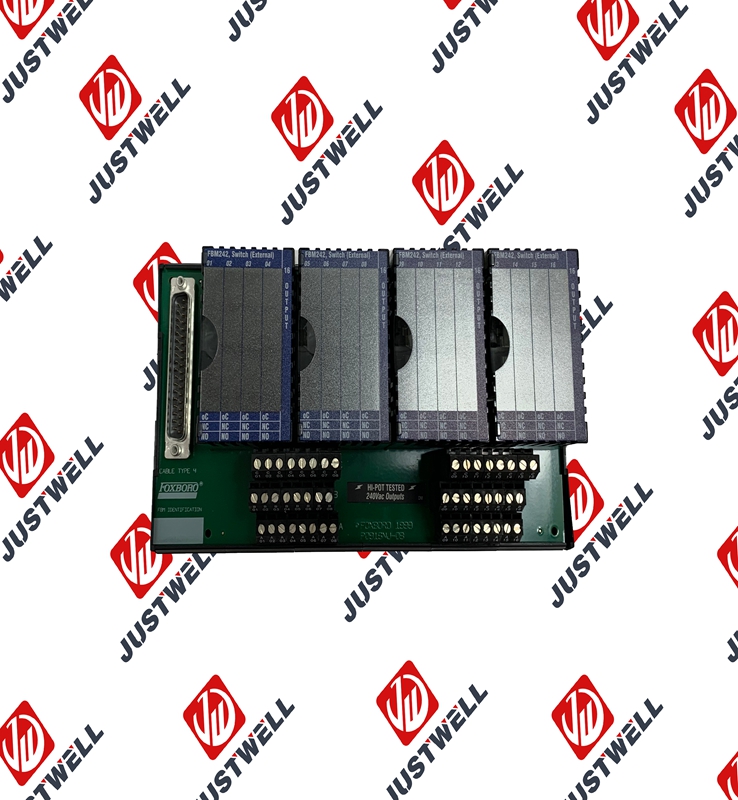

P0916YY Foxboro Processor module

Brand：Foxboro Model number：P0916YY

Country of origin: Germany Product weight：0.55kg

HS code：8517623990

Product Details：

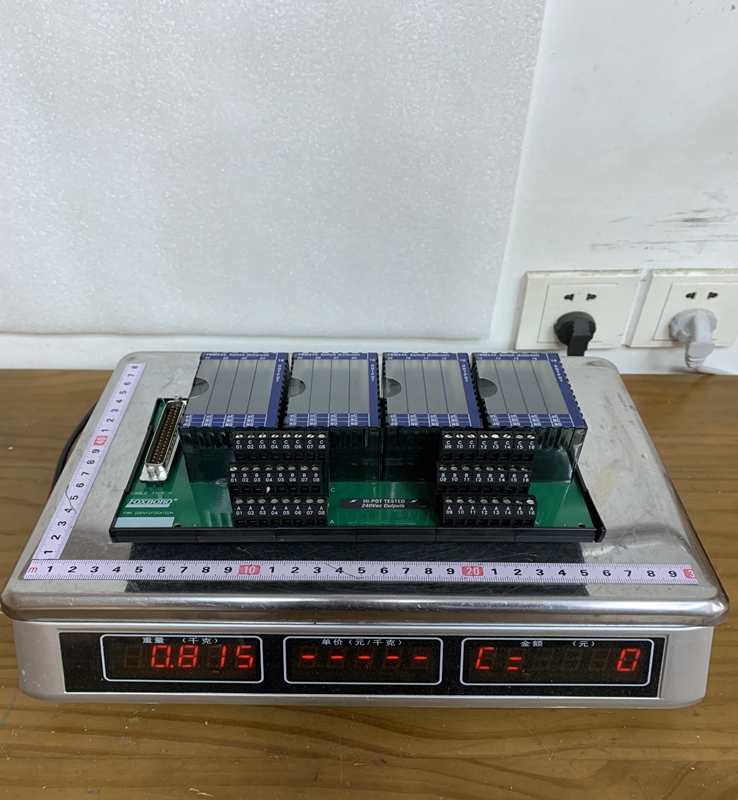

Product Dimensions：

The P0916YY module is part of the Foxboro Evo and I/A Series hardware ecosystem. Its primary function is to manage communication between the Fieldbus Processor (FBP) and various Fieldbus Modules (FBMs). It ensures that data collected from sensors and commands sent to actuators are transmitted reliably and in real-time. The module is typically mounted on a specialized baseplate and features a rugged design capable of operating in harsh industrial environments. It supports redundant configurations, ensuring that control is maintained even if one communication path or module fails.

Product Parameters

Module Type: Fieldbus Communications Module (FCM)
Compatibility: Foxboro I/A Series and Foxboro Evo systems
Input Voltage: $24 \text{ VDC}$ nominal, provided via the system baseplate
Power Consumption: Typically less than $3 \text{ W}$
Communication Speed: Supports $2 \text{ Mbps}$ or $268 \text{ Kbps}$ depending on the specific fieldbus configuration
Redundancy: Supports 1-for-1 hardware redundancy with automatic switchover
Operating Temperature: $0\text{°C}$ to $60\text{°C}$ ( $32\text{°F}$ to $140\text{°F}$ )
Relative Humidity: 5% to 95% (non-condensing)
Isolation: Built-in galvanic isolation to protect the system from electrical surges on the fieldbus line

Product Advantages

One of the core advantages of the P0916YY is its High Reliability. As a critical piece of the control backbone, it is built with high MTBF (Mean Time Between Failures) components to ensure 24/7 operation. The Hot-Swappable Design allows maintenance teams to replace a faulty module without powering down the entire system or interrupting the process, which is essential for continuous manufacturing.

The module also offers Seamless Integration with existing I/A Series infrastructure, making it an ideal choice for system expansions or upgrades. Its Advanced Diagnostics capabilities allow the central control system to monitor the health of the communication link, identifying potential issues before they lead to a system trip. Furthermore, its Redundancy Management is handled entirely in hardware, providing a bumpless transition that is transparent to the control logic and the operator.

Important Considerations and Precautions

When installing the P0916YY, it is vital to verify the Baseplate Addressing. Each module must be correctly seated and addressed according to the system configuration to prevent communication conflicts. Electrostatic Discharge (ESD) precautions must be strictly followed when handling the module; always use a grounded wrist strap to prevent damage to the sensitive CMOS components.

Another critical precaution involves Cabling Integrity. Ensure that all fieldbus cables are properly shielded and that the shields are grounded at a single point to prevent ground loops and electromagnetic interference (EMI). Because this module manages the data flow for multiple I/O points, a Firmware Compatibility check is required before installation to ensure the P0916YY version matches the software revision of the Fieldbus Processor. Finally, never force the module into the baseplate; if resistance is felt, check for bent pins or debris in the connector.

Product Applications

The Foxboro P0916YY is found in large-scale industrial plants where the I/A Series DCS is deployed.

Oil and Gas Refineries: Managing communications for thousands of I/O points across distillation units and storage tank farms.
Chemical Plants: Providing reliable data paths for reactor temperature control and safety interlocking systems.
Power Generation: Coordinating the high-speed signals required for turbine control and boiler feed systems.
Pulp and Paper Mills: Used in the automation of digesters, bleach plants, and paper machines where environmental conditions are demanding.
Water and Wastewater: Interfacing with remote pump stations and treatment processes across a wide geographic area within a centralized control scheme.
