K3243X1-BB1 EMERSON

K3243X1-BB1 EMERSON Input module

Brand：Emerson Model number：K3243X1-BB1

Country of origin: United States Product weight：0.55kg

HS code：8517623990

Inquire Now

Product Details：

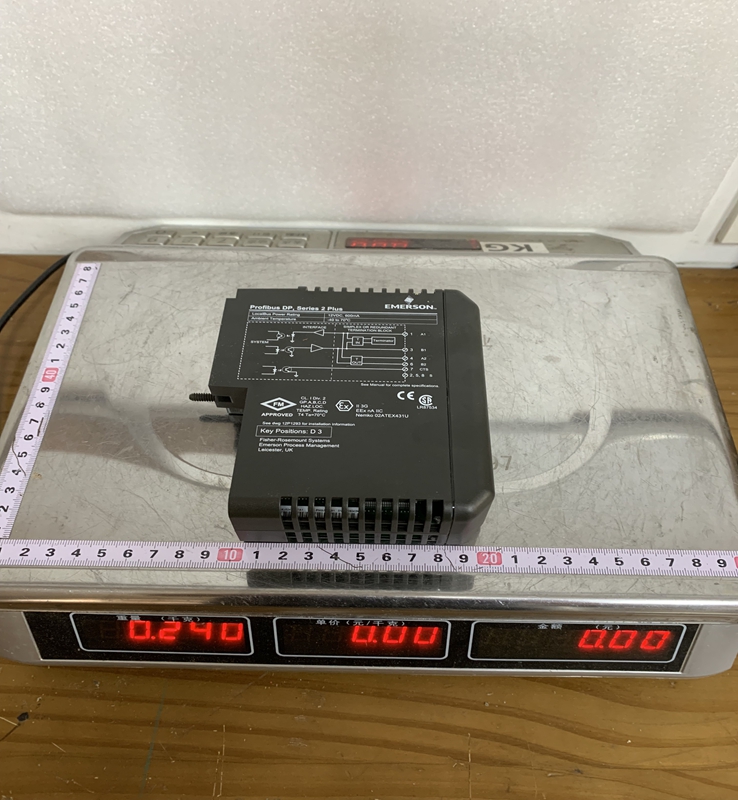

Product Dimensions：

The Emerson K3243X1-BB1 is a high-reliability hardware component engineered for use within the Emerson DeltaV Distributed Control System (DCS) architecture. It functions as an essential carrier and power/communication connection interface module, facilitating secure signal distribution and data transfer between control hardware and field devices. Built to industrial-grade standards, the K3243X1-BB1 ensures continuous power distribution, backplane communication, and high-density mounting capability within process control cabinets, contributing to the overall stability and uptime of critical automation processes.

Product Parameters

System Platform: Emerson DeltaV Distributed Control System (DCS)
Model Number: K3243X1-BB1 (also referenced under corresponding Emerson assembly part numbers)
Operating Voltage: Nominal $24\text{ VDC}$ system power supply
Power Dissipation: Low power consumption design optimized for minimal cabinet heat buildup
Operating Temperature: $-40\text{°C}$ to $70\text{°C}$ ( $-40\text{°F}$ to $158\text{°F}$ )
Storage Temperature: $-40\text{°C}$ to $85\text{°C}$ ( $-40\text{°F}$ to $185\text{°F}$ )
Relative Humidity: 5% to 95% non-condensing
Vibration and Shock Isolation: Compliant with ISA and IEC standards for industrial control hardware
Hazardous Location Certification: Designed for installation in Class I, Division 2 / Zone 2 environments when installed inside a compliant enclosure

Product Advantages

Hot-Swappable Functionality: Supports live insertion and removal of connected hardware modules without interrupting the operation of surrounding control channels or system power.
Modular and Scalable Architecture: Enables flexible system expansion and clean cable management inside control cabinets, saving space and reducing installation complexity.
Robust Signal Integrity: Features high-grade connector contacts and built-in noise suppression to protect sensitive communication signals against industrial electromagnetic interference (EMI).
Enhanced System Uptime: Built with industrial-grade components designed for continuous 24/7 operation in harsh process environments, minimizing unplanned maintenance.

Important Considerations and Precautions

Electrostatic Discharge (ESD) Protection: Handle the module using proper ESD grounding equipment, such as a wrist strap, to prevent static damage to sensitive internal electronics during installation or maintenance.
Enclosure Requirements: Must be installed within a protective enclosure rated at least NEMA 4X or IP54 to guard against airborne dust, moisture, and corrosive atmospheric contaminants.
Wiring and Power Disconnection: Verify that field wiring and power supplies conform to specified $24\text{ VDC}$ ratings before energizing the system. Ensure all terminal connections are securely torqued to avoid high-resistance faults.
System Compatibility: Confirm that the K3243X1-BB1 revision is fully compatible with the specific DeltaV software version, carrier type, and I/O card models deployed in the system rack.

Product Applications

Oil and Gas Refining: Used in upstream extraction facilities, pipelines, and downstream refining units for process monitoring and control.
Chemical and Petrochemical Processing: Installed in batch reactors, distillation columns, and continuous processing plants requiring reliable DCS infrastructure.
Power Generation: Deployed in thermal, combined-cycle, and renewable energy plants to interface with turbine, boiler, and balance-of-plant automation systems.
Pharmaceutical Manufacturing: Utilized in validated production environments to support high-accuracy process control and continuous data collection.
Water and Wastewater Management: Applied in large-scale filtration, chemical dosing, and water distribution networks controlled via DeltaV automation platforms.
