K3242XA-EA1 EMERSON

K3242XA-EA1 EMERSON Input module

Brand：Emerson Model number：K3242XA-EA1

Country of origin: United States Product weight：0.55kg

HS code：8517623990

Inquire Now

Product Details：

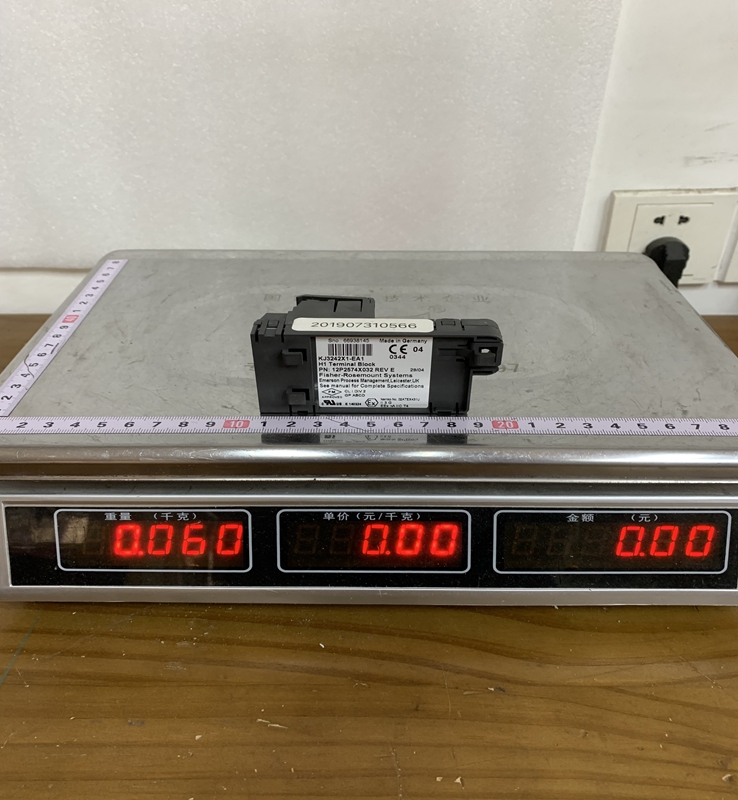

Product Dimensions：

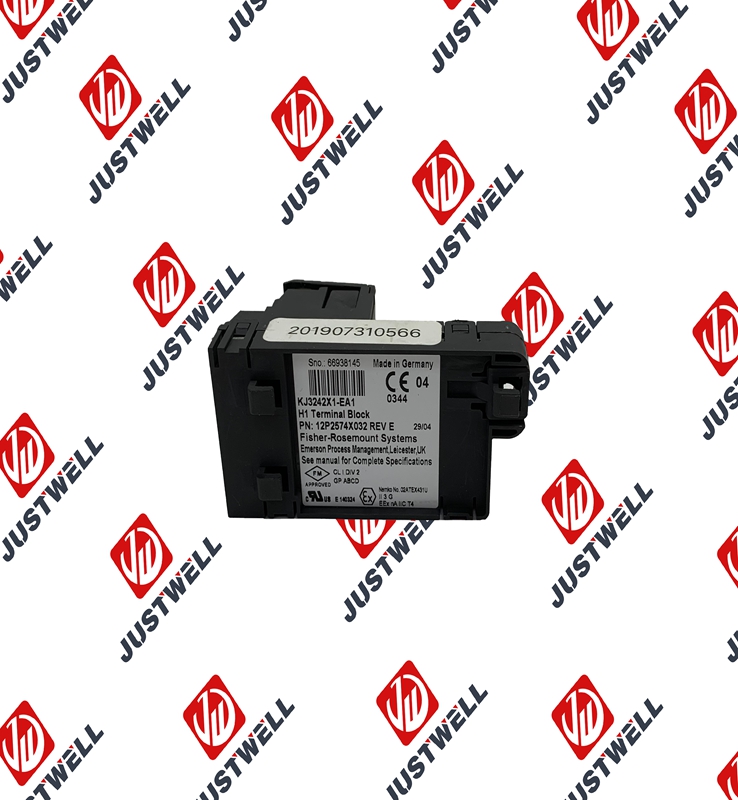

The KJ3242X1-EA1 is an essential interface component designed to mount directly onto DeltaV I/O carriers. It links fieldbus devices (such as transmitters, positioners, and actuators) with the main DeltaV Fieldbus H1 Card (specifically pairing with cards like the KJ3242X1-BA1 or Series 2 BA3, which together constitute the VE4017P0 module assembly). This terminal block is engineered with passive circuits that correctly distribute network power and signals to multiple fieldbus ports. Built for heavy industrial environments, it features robust housing and secure connection paths optimized for data integrity within critical control loops.

Product Parameters

Input Power Rating: 35 VDC maximum at 500 mA
Network Protocol: Foundation Fieldbus H1 compliant
Operating Ambient Temperature: -40°C to +70°C (-40°F to +158°F)
Relative Humidity Limits: 5% to 95% non-condensing
Mechanical Shock Resistance: 10 g half-sine wave for 11 ms duration
Vibration Resistance: 1 mm peak-to-peak displacement from 2 to 13.2 Hz, and 0.7 g acceleration from 13.2 to 150 Hz
Environmental Rating: ISA-S71.04-1985 Airborne Contaminants Class G3 (Harsh/Corrosive)
Hazardous Area Approvals: Certified under ATEX, IECEx, and UKEX (II 3G Ex ec IIC Gc), as well as Class I, Division 2, Groups A, B, C, D; Class I, Zone 2 AEx/Ex ec IIC T4 Gc

Product Advantages

A key advantage of the KJ3242X1-EA1 is its Hazardous Area Resilience. It carries strict international certifications for Zone 2 and Division 2 installation, allowing fieldbus terminations to reside closer to production zones without specialized, bulky explosion-proof housings.

The terminal block also features an Intelligent Keying System. A customizable mechanical rotary key ensures that once the block is designated for a specific Fieldbus H1 card, no incorrect I/O card type can be accidentally inserted into that slot, shielding the network from voltage mismatches.

Additionally, the G3 Airborne Contaminant Rating ensures long-term contact reliability in highly corrosive atmospheres, such as those laden with hydrogen sulfide or chlorine gas. Its single-slot space-saving design minimizes overall cabinet layout size while cleanly isolating field networks from the main backplane logic.

Important Considerations and Precautions

When configuring or servicing the KJ3242X1-EA1, users must respect the Zero Hot-Swap Rule for Field Power. While DeltaV systems offer extensive live-swapping features, any field power supplied to this device (either at the terminal block itself or as bussed power through the carrier) must be completely disconnected before removing or inserting the block to prevent hazardous electrical arcing.

The terminal block Contains No User-Serviceable Parts inside; attempting to open or repair internal traces will void its safety certifications and potentially ruin its intrinsic protection features.

Technicians must verify that the Mechanical Hardware Keys are configured properly to match the exact position (typically designated as D6 for corresponding H1 cards) before sliding the live card into position. Lastly, external fieldbus wiring shields must be properly grounded at a single point according to standard Foundation Fieldbus installation guidelines to avoid noise loops that degrade network communication.

Product Applications

The KJ3242X1-EA1 is applied in process industries that rely on digitized field instrumentation distributed over fieldbus networks.

Oil and Gas Extraction: Connecting multiparameter transmitters and digital valve controllers on offshore platforms or remote wellheads.
Petrochemical Plants: Interfacing manifold networks of level, flow, and temperature instruments back to central DeltaV architectures.
Chemical Batch Processing: Coordinating high-density instrumentation lines where advanced digital field diagnostics are continuously read alongside variables.
Pharmaceutical Refining: Providing robust, interference-free digital data pathways for validated manufacturing processes.
Large-Scale Water Management: Managing automated valve networks and remote pumping analytical sensors over segmented H1 networks.
