MFD-80-B Eaton

MFD-80-B EATON Gate Module

Brand：EATON Model number：MFD-80-B

Country of origin: the States Product weight：0.55kg

HS code：8538900000

Inquire Now

Product Details：

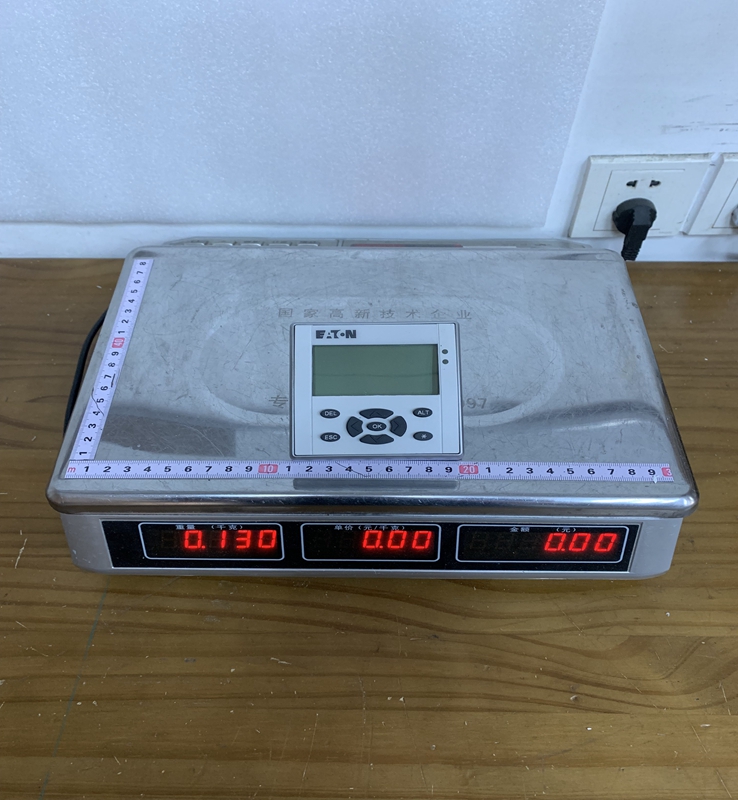

Product Dimensions：

The MFD-80-B is a decentralized display unit that can be mounted directly on a control cabinet door or a machine housing. It features a graphic-capable backlit display that allows for the clear presentation of text, values, graphics, and custom user menus. This module is designed to connect seamlessly with Eaton's easy800 programmable relays or function as a standalone display unit when paired with the appropriate communication and power modules. The unit is engineered with high ingress protection on the front, making it ideal for harsh industrial environments where exposure to dust and liquids is common.

Product Parameters

Display Type: Graphic-capable monochrome STN liquid crystal display (LCD) with adjustable LED backlighting.
Resolution: $132 \times 64$ pixels, allowing for up to 4 lines of 16 characters or custom graphical symbols.
Operator Interface: Features 4 pre-configured configuration/navigation keys and 4 user-programmable function keys (F1 through F4).
Supply Voltage: Powered via the connected controller or interface module (typically $24 \text{ VDC}$ or $100-240 \text{ VAC}$ depending on the base unit).
Degree of Protection: IP65 / NEMA 4X from the front when properly installed in a cabinet door, providing excellent dust and water resistance.
Ambient Operating Temperature: $-25\text{°C}$ to $55\text{°C}$ ( $-13\text{°F}$ to $131\text{°F}$ ), making it suitable for cold storage or hot manufacturing areas.
Approvals and Certifications: UL listed, CSA certified, and CE marked for global industrial compliance.

Product Advantages

A major benefit of the MFD-80-B is its Seamless Integration with Eaton's easy800 control systems, eliminating the need for complex, third-party HMI programming and communication drivers. The Customizable User Interface allows engineers to design intuitive screens with bar graphs, alarm texts, and variable entry fields using the user-friendly easySoft software.

The Rugged IP65 Front Rating ensures long-term operational reliability when exposed to washdown procedures or grease in industrial environments. Additionally, the Cost-Effective Design combines data visualization and operator inputs into a single compact unit, reducing the need for separate pilot lights, pushbuttons, and digital readouts on the control panel.

Important Considerations and Precautions

When installing the MFD-80-B, maintaining the integrity of the Front Panel Seal is critical; ensure the mounting surface is flat, smooth, and free of burrs so the gasket compresses evenly to maintain the IP65 rating. Because the display is a liquid crystal device, it must not be exposed to Direct Sunlight for extended periods, as UV radiation and excessive heat can degrade the contrast and shorten the life of the display.

During wiring, ensure that the connection cable to the base control module is Routed Away from High-Power Cables (such as motor drives or contactors) to prevent electromagnetic interference from disrupting data transmission. Additionally, operators should use fingertips to actuate the keys; using sharp objects like screwdrivers or pens can puncture the front membrane protective film, permanently damaging the keys and destroying the environmental seal.

Product Applications

The Eaton MFD-80-B is widely used for localized visualization and control in a variety of small automation setups.

Pump and Valve Control: Monitoring pressure levels, flow rates, and operating hours in water treatment or agricultural irrigation systems.
HVAC and Building Automation: Adjusting temperature setpoints, viewing active alarms, and setting weekly schedules for industrial heating and cooling units.
Conveyor and Packaging Systems: Displaying fault messages, cycle counts, and speed adjustments for localized sorting and packaging machines.
Machine Tooling Support: Providing a simple operator interface for auxiliary equipment such as hydraulic power packs, chip conveyors, and lubrication systems.
Lighting Control Systems: Configuring timers and viewing zone statuses in commercial or industrial facilities.
