E50DR1 EATON

E50DR1 EATON Gate Module

Brand：EATON Model number：E50DR1

Country of origin: the States Product weight：0.55kg

HS code：8538900000

Inquire Now

Product Details：

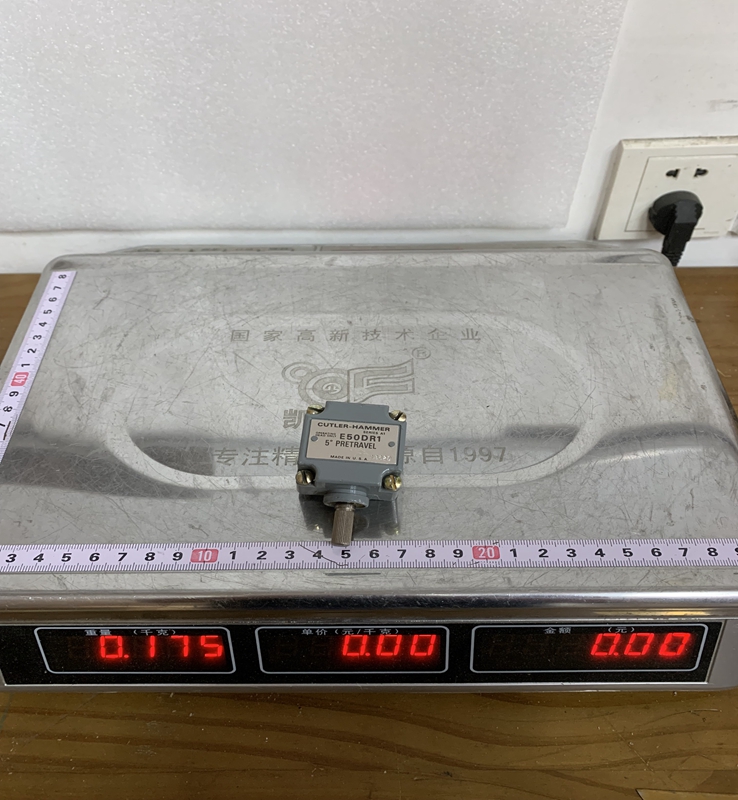

Product Dimensions：

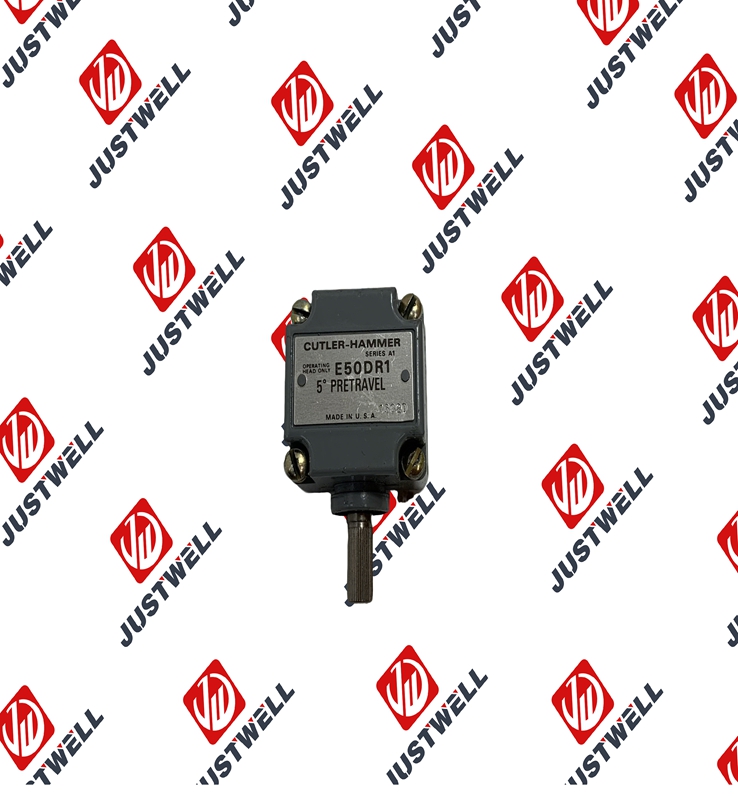

The E50DR1 serves as the mechanical actuator interface of a modular limit switch system. It is a Side Rotary operating head that features spring return action, meaning it returns to its original position once the external actuating force is removed. The head is constructed from zinc die-cast material, ensuring exceptional durability against physical impacts. It is designed to accept a wide variety of E50 operating levers (such as roller levers, rod levers, or adjustable rollers), which allows maintenance teams to customize the mechanical interaction based on the machinery layout.

Product Parameters

Product Series: E50 Heavy-Duty Plug-In
Component Type: Operating Head
Actuator Type: Side Rotary (spring return, clockwise and/or counterclockwise operation)
Material: Die-cast zinc housing with a clear chromate finish over zinc plating for corrosion resistance
Operating Temperature Range: $-10\text{°C}$ to $121\text{°C}$ ( $14\text{°F}$ to $250\text{°F}$ ) for standard applications
Enclosure Environmental Ratings: NEMA 1, 3, 3S, 4, 4X, 6, 6P, 13 and IP67, providing excellent protection against liquids and dust
Mechanical Life: Rated for over 13 million mechanical operations under normal operating conditions
Shock and Vibration: Designed to meet high-vibration industrial standards without accidental contact chatter

Product Advantages

A primary advantage of the E50DR1 is its Modular Plug-In Design. Because the head is separate from the switch body, it can be replaced in seconds by loosening a few captive screws, which dramatically cuts down machine downtime during maintenance. The Rugged Environmental Sealing is another significant benefit; viton shaft seals, O-rings, and diaphragm seals prevent cutting oils, coolants, and dust from entering the switch mechanism.

The head offers Field-Configurable Flexibility, allowing operators to easily adjust it to operate clockwise only, counterclockwise only, or in both directions by simply altering an internal plunger configuration. Furthermore, its Exceptional Mechanical Life ensures long-term reliability in high-cycle factory floor applications where standard limit switches would prematurely fail.

Important Considerations and Precautions

When installing the E50DR1, it is critical to ensure Proper Lever Alignment. If the operating lever strikes the head at an incorrect angle or bypasses the recommended overtravel limits, it can cause excessive mechanical stress and shorten the lifespan of the return spring. Torque Specifications must be followed when fastening the head to the switch body to maintain the integrity of the environmental seal; under-tightening will allow fluids to seep in, while over-tightening can strip the casing.

Users must also verify Temperature Compatibility, ensuring that if the application exceeds standard thresholds, specific high-temperature variants or seals are utilized. Finally, periodic inspection of the Shaft Seal is recommended in heavy washdown or highly abrasive environments to ensure that grit has not compromised the Viton barrier, which could lead to internal contamination of the contact blocks.

Product Applications

The Eaton E50DR1 is extensively used in heavy industrial sectors where presence sensing and position limits must be reliably detected.

Automotive Stamping and Assembly: Detecting the positioning of heavy metal dies, body panels, and indexing carriers along the production line.
Material Handling and Conveyors: Acting as a position sensor or safety overtravel switch on heavy-duty sorting lines, baggage handling systems, and overhead cranes.
Machine Tooling: Monitoring door interlocks, tool changer positions, and axis limits on CNC mills, lathes, and grinding machines exposed to coolants.
Iron and Steel Mills: Position detection on transfer cars, rolling mills, and furnace doors where high ambient temperatures and vibrations are constant.
Packaging and Bottling: Tracking high-speed machinery gates, sorting arms, and palletizing equipment.
