300AA00082A EATON

300AA00082A EATON Gate Module

Brand：EATON Model number：300AA00082A

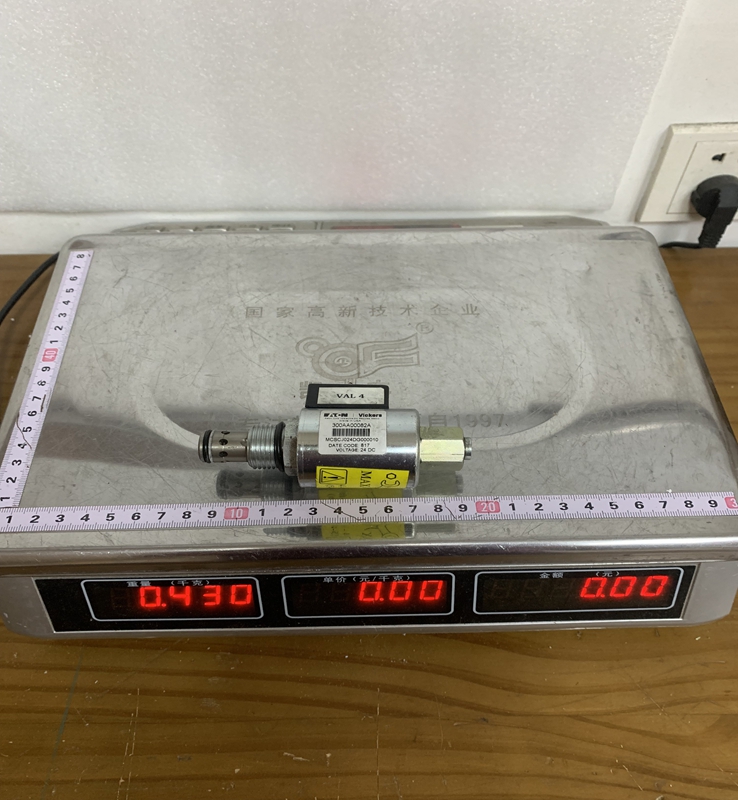

Country of origin: the States Product weight：0.55kg

HS code：8538900000

Inquire Now

Product Details：

Product Dimensions：

The Eaton 300AA00082A is a high-performance electromagnetic solenoid valve coil engineered specifically for demanding hydraulic applications. Manufactured by the Eaton Corporation Hydraulics Division as part of their integrated hydraulics series, this component is designed to mount seamlessly onto compatible directional control valves, such as the SV series or SV3 valve types. Its primary function is to convert electrical energy into a controlled magnetic force, shifting the valve spool precisely to direct or block fluid flow within a hydraulic circuit. Built with heavy-duty internal windings and a rugged outer encapsulation, it ensures dependable performance and tight sealing under harsh industrial operational conditions.

Product Parameters

The technical specifications of the Eaton 300AA00082A coil feature an operating voltage of 24V DC. It is often cross-referenced with part number MCSCJ024DG000010. The physical dimensions include an inner hole diameter of approximately 12.9 mm and a height of around 46.5 mm, with an electrical efficiency rating of roughly 23 W. The recommended maximum installation torque required to secure the coil onto the valve tube safely is between 4 to 6 lb-ft, which translates to 5 to 8 Nm.

Product Advantages

This solenoid coil delivers exceptional operational reliability and longevity due to its genuine OEM manufacturing standards. It offers high thermal resistance and efficient energy conversion, minimizing heat buildup during continuous duty cycles. Its robust outer shell provides excellent protection against moisture, dust, and mechanical wear, ensuring a stable performance lifecycle. Furthermore, its standardized modular design allows for quick, straightforward replacement and maintenance without requiring specialized complex tools, reducing overall equipment downtime.

Important Considerations

When installing and operating the Eaton 300AA00082A coil, care must be taken to match the electrical supply strictly to the 24V DC specification to avoid thermal overload or coil burnout. Installers must adhere strictly to the recommended installation torque of 4 to 6 lb-ft; over-tightening can damage the internal armature tube, while under-tightening can cause loosening from machine vibrations. It is critical to avoid energizing the coil when it is removed from the valve stem, as this will cause rapid overheating and permanent failure. System designers should also ensure that the surrounding operating environment stays within acceptable industrial temperature parameters and is adequately protected from corrosive agents.

Product Applications

The Eaton 300AA00082A solenoid coil is widely utilized across various industrial machinery and mobile hydraulic systems. It is commonly found in agricultural equipment, construction machinery, material handling systems, marine auxiliary equipment, and factory automation production lines where precise hydraulic fluid regulation is required. Its primary role in these applications is to actuate hydraulic control valves that manage cylinder movements, fluid motors, and pressure direction pathways.
