3500/15 106M1079-01 ARM-1813-00GE BENTLY NEVADA

3500/15 106M1079-01 ARM-1813-00GE Bently Nevada Digital Input Module

Brand：BENTLY NEVADA Model number：3500/15 106M1079-01 ARM-1813-00GE

Country of origin: U.S. Product weight：0.55kg

HS code：8517623990

Inquire Now

Product Details：

Product Dimensions：

The 3500/15 106M1079-01 (ARM-1813-00GE) is a half-height module that installs directly into the dedicated power supply slots on the far-left side of a standard 19-inch 3500 series chassis. It features a universal input design capable of accepting wide-range AC utility power without needing physical jumper adjustments or manual voltage switching. A single module can supply full operating power to a completely populated 3500 rack. The system also supports dual-supply configurations, allowing two power supply modules to operate simultaneously for true N+1 power redundancy and seamless load sharing.

Product Parameters

Module Type: Universal AC Power Supply Module for 3500/15 System
Part Numbers: 106M1079-01, ARM-1813-00GE
Input Voltage Range: 85 to 264 VAC universal input
Input Frequency: 47 to 63 Hz
Input Current: 1.0 A to 2.8 A nominal depending on supply load
Physical Form Factor: Half-height module designed for dedicated power slots in the 3500 rack
Module Dimensions: Height 120.7 mm, Width 50.8 mm, Depth 251.5 mm

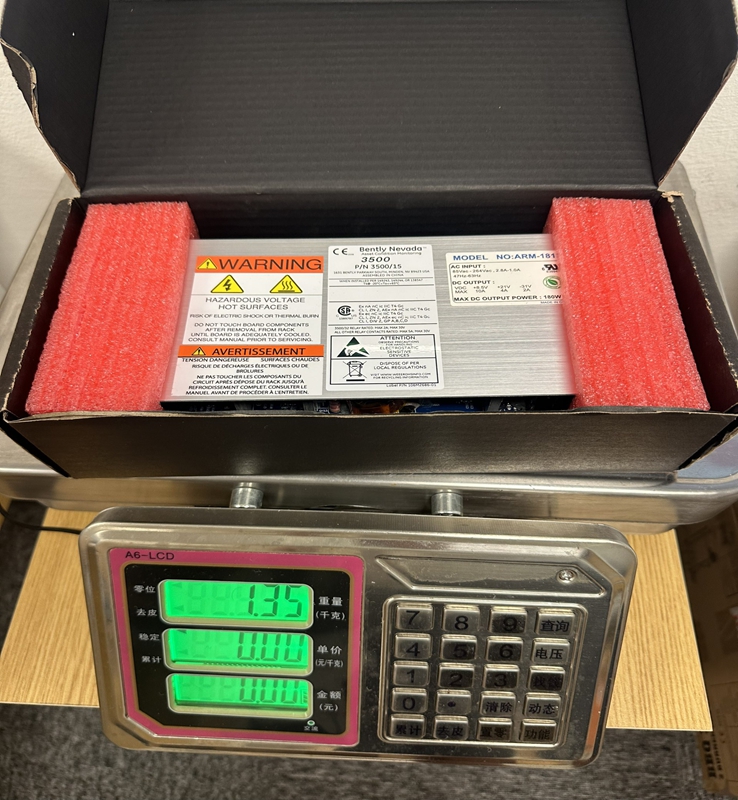

Module Weight: Approximately 1.39 kg (3.06 lbs)
Operating Temperature: -30°C to +65°C (-22°F to +149°F)
Storage Temperature: -40°C to +85°C (-40°F to +185°F)
Relative Humidity: 95% non-condensing operating and storage
Status Indicators: LED status indicators on the front panel for module power and functional status

Product Advantages

Universal AC voltage compatibility allows the module to be deployed worldwide without maintaining separate regional hardware inventories or configuring line voltage selection switches.

N+1 redundancy capability ensures that if one power supply fails or loses mains input, the secondary supply automatically assumes the full load with zero disturbance to critical vibration monitoring.

Full hot-swap support allows maintenance staff to safely replace a faulty power module online while the rest of the machinery protection system remains fully powered and active.

Industrial-grade electromagnetic interference filtering and surge protection deliver clean, stable internal DC buses even in harsh electrical plant environments.

Compact half-height slot integration maximizes remaining rack space for monitoring and relay cards.

Important Considerations and Precautions

Ensure line voltage and frequency fall strictly within the specified 85 to 264 VAC and 47 to 63 Hz limits prior to powering the unit.

Before performing a hot-swap operation, verify that the secondary redundant power supply is healthy and actively carrying the rack load.

Do not install the 106M1079-01 universal module in slots intended for standard monitoring modules, as it is strictly keyed for the dedicated 3500/15 power supply positions on the rack left.

Maintain adequate clearance around the backplane and rack chassis ventilation paths to prevent heat buildup inside the module enclosure.

Always connect the safety earth ground terminal firmly to the rack frame to prevent electrical shock hazards and reduce signal noise.

Product Applications

Power Generation Facilities: Supplying continuous, highly reliable power to vibration and turbine monitoring racks on steam, gas, and hydro turbines.
Oil and Gas Refineries: Powering machinery protection racks for large centrifugal compressors, blowers, and high-pressure feed pumps.
Petrochemical Plants: Ensuring uninterrupted monitoring for critical rotating assets, drive trains, and continuous-duty pumps.
Offshore Energy Platforms: Operating in remote marine environments where power quality varies and high operational uptime is essential.
Heavy Industrial Processing: Protecting major turbomachinery, fans, and gearboxes in paper, mining, and steel processing mills.
