1900/55-01-00-01-01 190201-01 BENTLY NEVADA

1900/55-01-00-01-01 190201-01 Bently Nevada Digital Input Module

Brand：BENTLY NEVADA Model number：1900/55-01-00-01-01 190201-01

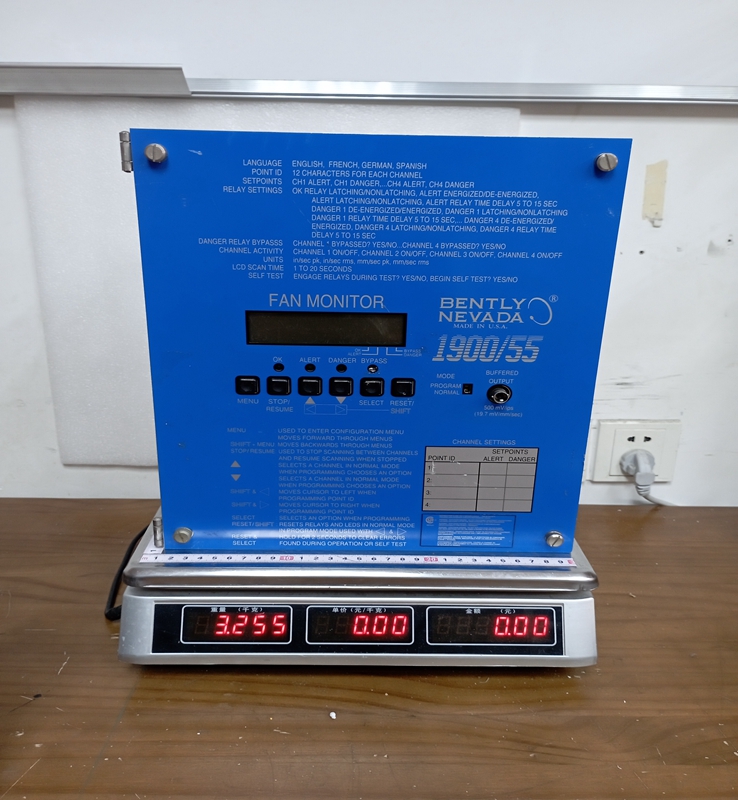

Country of origin: U.S. Product weight：0.55kg

HS code：8517623990

Inquire Now

Product Details：

Product Dimensions：

The 1900/55-01-00-01-01 is a four-channel monitor designed to track vibration, temperature, and other critical machine parameters. The specific alphanumeric configuration digits signify the exact options built into this unit, such as input channel types, output relay configurations, and specific hazardous area approvals. The 190201-01 designation typically references the matching module chassis or an associated specialized module, such as the digital display unit or mounting kit required for field installation. This monitor is fully programmable via specialized software, allowing users to define alarm setpoints and configure the on-board relays to automatically shut down machinery in the event of catastrophic failure.

Product Parameters

Vibration Inputs: Supports up to 4 dynamic inputs, compatible with standard Accelerometers, Velomitors, or Proximity Probes.
Temperature Inputs: Includes dedicated channels for RTDs (Resistance Temperature Detectors) or Thermocouples to monitor bearing temperatures.
Relay Outputs: Equipped with multiple configurable SPDT (Single Pole Double Throw) relays for Alert and Danger alarms.
Analog Outputs: Provides 4-20 mA current loops for routing vibration and temperature values directly to a PLC or DCS.
Buffered Outputs: Features buffered dynamic signal outputs via standard BNC connectors for portable diagnostic instruments.
Power Supply (01): Configured for $18$ to $36 \text{ VDC}$ operation, typical for industrial control cabinets.
Communication Interface: Built-in Modbus RTU digital communication capability via RS-485 for remote monitoring.
Enclosure and Environmental: Designed for DIN rail mounting or direct wall mounting with an IP20 rating, suitable for operation in temperatures ranging from $-20\text{°C}$ to $70\text{°C}$ .

Product Advantages

A major advantage of the 1900/55-01-00-01-01 is its Cost-Effective Protection. It delivers the renowned accuracy of Bently Nevada vibration tracking without requiring the extensive cabinet space or high cost of an multi-slot machinery protection rack. The inclusion of Buffered Output BNC Ports is highly advantageous for maintenance technicians, allowing them to connect external vibration analyzers to read raw data waveforms without shutting down or altering the machine's wiring.

The Integrated Logic Configuration allows users to program "AND/OR" voting logic directly into the monitor, ensuring that a single faulty sensor will not cause a false machine trip. Additionally, its Versatile Input Compatibility means a single monitor can simultaneously evaluate mechanical vibration and thermal stress on the same piece of equipment.

Important Considerations and Precautions

When setting up the Bently Nevada 1900/55 monitor, Proper Sensor Grounding is absolute crucial; failure to ground the shielded cables correctly can inject electronic noise into the system, generating false alerts. Because the unit controls machinery shutdown loops, you must Isolate Interlocking Relays during commissioning and software configuration to prevent accidental equipment trips.

The Maximum Distance Limits between the sensors and the monitor must be respected, as excessive cable length can degrade high-frequency vibration data. Ensure that the DC Power Source is heavily filtered and surge-protected, as industrial voltage spikes can permanently damage the internal processor. Finally, during routine maintenance, always verify that the Latch/Non-Latch Settings of the alarms match the plant operating procedures, as non-latching alarms can automatically reset before an operator can log the physical anomaly.

Product Applications

The 1900/55-01-00-01-01 is explicitly deployed on essential, non-critical balance-of-plant machinery assets.

Industrial Cooling Fans: Continuous vibration and motor bearing temperature monitoring on cooling tower fans in power and chemical plants.
Centrifugal and Positive Displacement Pumps: Protecting water, chemical, and oil pumps from cavitation and shaft misalignment.
Small Compressors: Monitoring air and gas compressors for valve or rotor defects in manufacturing facilities.
Electric Motors: Tracking structural vibration and winding heat on large auxiliary motors driving industrial machinery.
Blowers and Exhausters: Keeping watch over ventilation blowers where unbalance caused by particulate buildup can lead to catastrophic fan destruction.
