3500/05-01-03-00-00-00 BENTLY NEVADA

3500/05-01-03-00-00-00 Bently Nevada Digital Input Module

Brand：BENTLY NEVADA Model number：3500/05-01-03-00-00-00

Country of origin: U.S. Product weight：0.55kg

HS code：8517623990

Inquire Now

Product Details：

Product Dimensions：

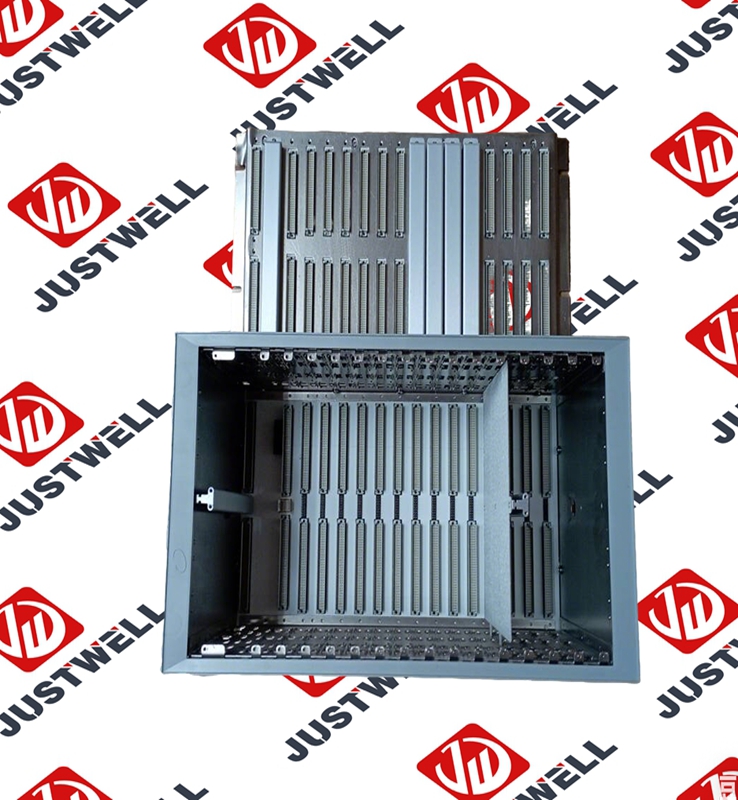

The 3500/05 System Rack is designed to house and interconnect all monitor modules and power supplies within the 3500 series. It features a high-speed backplane that allows modules to communicate seamlessly with each other and the Rack Interface Module (RIM). The rack also facilitates the distribution of power from the rack power supplies to every installed module. The specific configuration of this model (indicated by the suffix 01-03-00-00-00) defines its physical size, mounting style, and compliance certifications.

Product Parameters

The alphanumeric code provides the exact technical specifications for this rack assembly:

Model Number: 3500/05 (System Rack)
Rack Size (01): Full-size 19-inch EIA rack. This size provides 14 available module slots in addition to the dedicated slots for the power supplies and the Rack Interface Module.
Mounting Option (03): Bulkhead Mount. This format is specifically designed to mount the rack against a wall or panel where rear access is not possible. In this configuration, all wiring connections and I/O modules are accessed from the front of the rack.
Agency Approval (00): None. This indicates a standard version without specific regional hazardous area approvals (like CSA or ATEX) listed for this specific part code, though individual modules installed within it may carry their own certifications.
Reserved (00): This is a reserved field for future use or factory-specific settings.
European Compliance (00): No specific CE or European compliance marking requested for this specific assembly code.
Physical Dimensions: Approximately $482.6 \text{ mm}$ ( $19 \text{ inches}$ ) in width and $266 \text{ mm}$ ( $10.5 \text{ inches}$ ) in height (6U rack height).
Weight: The typical weight for a full-size rack is approximately $11.3 \text{ kg}$ ( $25 \text{ lb}$ ), though this varies slightly based on the specific mounting hardware.

Product Advantages

Front Accessibility: The bulkhead mount option is ideal for installations in tight spaces or against walls, as it allows technicians to perform all wiring and maintenance from the front.
High Reliability: The rack backplane is designed for mission-critical applications, meeting API 670 standards for machinery protection.
Redundancy Support: The rack supports dual, redundant power supplies. If one power supply fails, the second can handle the full load of the rack without interrupting machine protection.
Scalability: With 14 available slots, the full-size rack allows for a comprehensive monitoring setup, including vibration, position, speed, and temperature monitors in a single chassis.
Integrated Communication: The backplane architecture ensures that data from any monitor can be shared with the Rack Interface Module for transmission to DCS/PLC systems or Condition Monitoring Software (System 1).

Important Considerations

Module Placement: The Rack Power Supplies and the Rack Interface Module (RIM) must occupy the far-left slots of the rack. The remaining 14 slots can be used for any combination of monitor and relay modules.
Cooling and Clearance: Proper ventilation is required. Ensure that the installation environment does not exceed the operating temperature limits (typically up to $65^{\circ}\text{C}$ or $150^{\circ}\text{F}$ ) and that there is sufficient clearance for airflow.
Earthing and Grounding: For racks utilizing internal safety barriers, a 3500/04-01 Internal Barrier Earthing Module is required and must occupy a dedicated slot to ensure proper intrinsic safety grounding.
Power Requirements: Ensure the input power matches the specific 3500/15 power supply modules installed in the rack (e.g., 110/220 VAC or 24 VDC).

Product Applications

The Bently Nevada 3500/05 rack is utilized across heavy industries where machinery downtime is costly or dangerous.

Power Generation: Monitoring steam and gas turbines, generators, and cooling pumps.
Oil and Gas: Protection for centrifugal and axial compressors, turbo-expanders, and large electric motors in refineries and offshore platforms.
Water Treatment: Monitoring large pumps and blowers.
Mining and Metals: Vibration and position monitoring for large fans, mills, and crushers.
Chemical Processing: Protecting critical process machinery from catastrophic failure through automated trip (shutdown) logic.
