4PP065.0571-X74F B&R

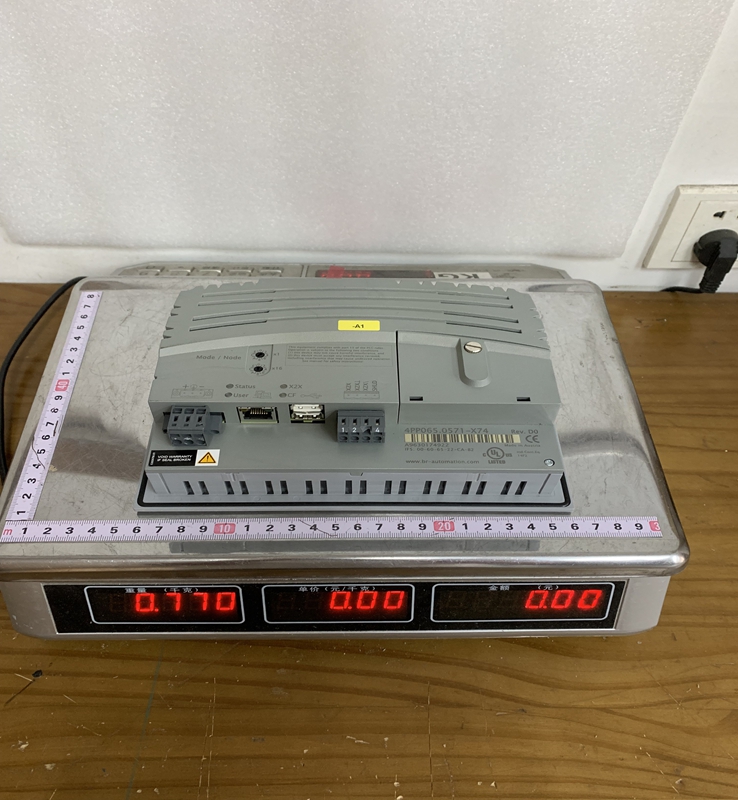

Product Dimensions：

The 4PP065.0571-X74F combines a high-resolution display with integrated control hardware running the B&R Automation Runtime operating system. It features a touchscreen display that allows operators to monitor and interact with process parameters in real time. The "X74F" variant belongs to the Power Panel 65 family, designed to serve as either a standalone controller with integrated visualization or a terminal device within a larger B&R network setup. Its fanless design and solid-state construction make it suitable for harsh industrial environments where mechanical reliability is necessary.

Product Parameters

• Display Type: 5.7 inch monochrome or color TFT LCD display (depending on exact sub-series generation) with resistive touchscreen.

• Processor: X86 architecture compatible processor designed for deterministic real-time control.

• Memory: Integrated RAM and Flash memory for application program storage and runtime data buffering.

• Supply Voltage: 24 VDC nominal operating voltage.

• Onboard Interfaces: Equipped with POWERLINK interface for high-speed deterministic fieldbus communication, along with RS232 and USB interfaces for peripheral connections or diagnostics.

• Front Panel Protection: IP65 rated from the front, providing resistance against dust ingress and water jets.

• Operating Temperature: 0°C to 50°C standard operating range.

• Operating System: Automation Runtime, programmable via B&R Automation Studio software environment.

Product Advantages

A major advantage of the 4PP065.0571-X74F is its Dual Functionality, combining the programmable logic controller (PLC) and the human-machine interface (HMI) into a single physical housing. This reduces overall cabinet footprint, simplifies wiring, and lowers initial hardware costs.

The High-Speed Connectivity provided by the built-in POWERLINK interface allows seamless, microsecond-level synchronization with remote I/O modules and servo drives.

The Fanless and Diskless Architecture eliminates moving parts, significantly increasing mean time between failures (MTBF) and ensuring maintenance-free continuous operation.

Additionally, the Unified Engineering Environment via Automation Studio allows developers to create control logic, motion paths, and visual screens using one software suite, cutting commissioning time.

Important Considerations and Precautions

When installing and commissioning the 4PP065.0571-X74F, ensure that the 24 VDC power supply meets the specified voltage tolerance and is adequately filtered to prevent electronic reset issues under heavy electrical load.

When mounting the unit into a panel cutout, verify that the front sealing gasket is properly aligned and clamped uniformly to maintain the IP65 ingress protection rating.

Because the rear side of the unit is rated IP20, it must be housed within a protective enclosure that guards against dust, conductive debris, and moisture inside the cabinet.

To prevent damage to the resistive touchscreen overlay, operators should use fingers or approved soft styluses rather than sharp tools or metal utensils.

Always maintain adequate vertical ventilation clearance around the heat sink on the back of the panel to allow proper convection cooling.

Product Applications

The B&R 4PP065.0571-X74F is widely deployed across various light and heavy industrial automation sectors.

• Packaging Machinery: Managing small form-factor wrapping, capping, and pouch-filling machines requiring integrated HMI and motion logic.

• Plastics and Rubber Processing: Operating temperature controllers, feeder units, and auxiliary equipment in extrusion or molding stations.

• Textile Automation: Controlling spinning, weaving, and dyeing machines where compact panel space is required.

• Building and Environmental Automation: Monitoring pump stations, HVAC units, and local energy management systems.

• Material Handling: Serving as local operator terminals on conveyor switches, small sorters, and transfer tables.
