1394-AM07 Allen-Bradley

1394-AM07 Allen-Bradley Power Board

Brand：Allen-Bradley Model number：1394-AM07

Country of origin: United States Product weight：0.55kg

HS code：8517623990

Inquire Now

Product Details：

Product Dimensions：

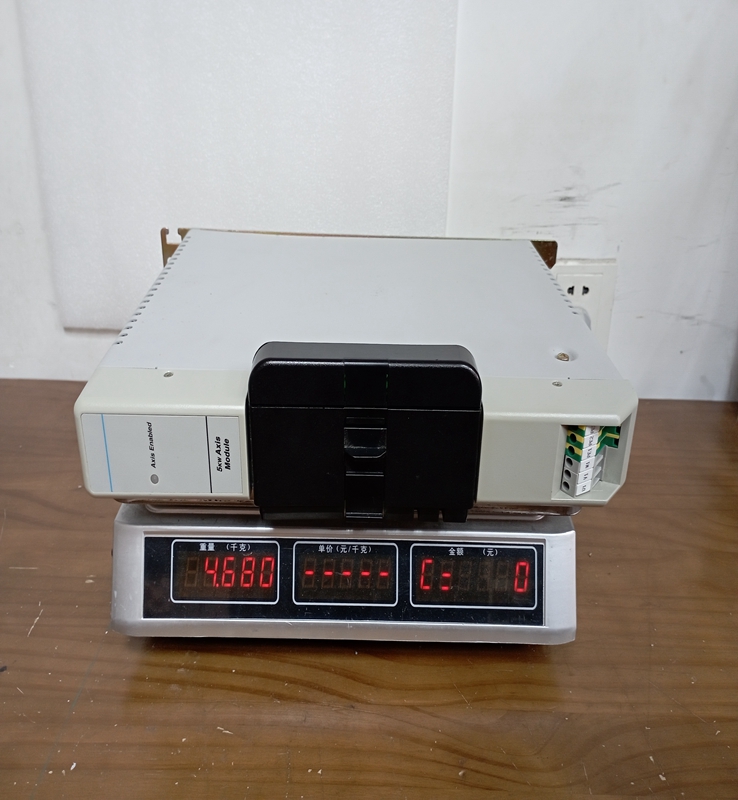

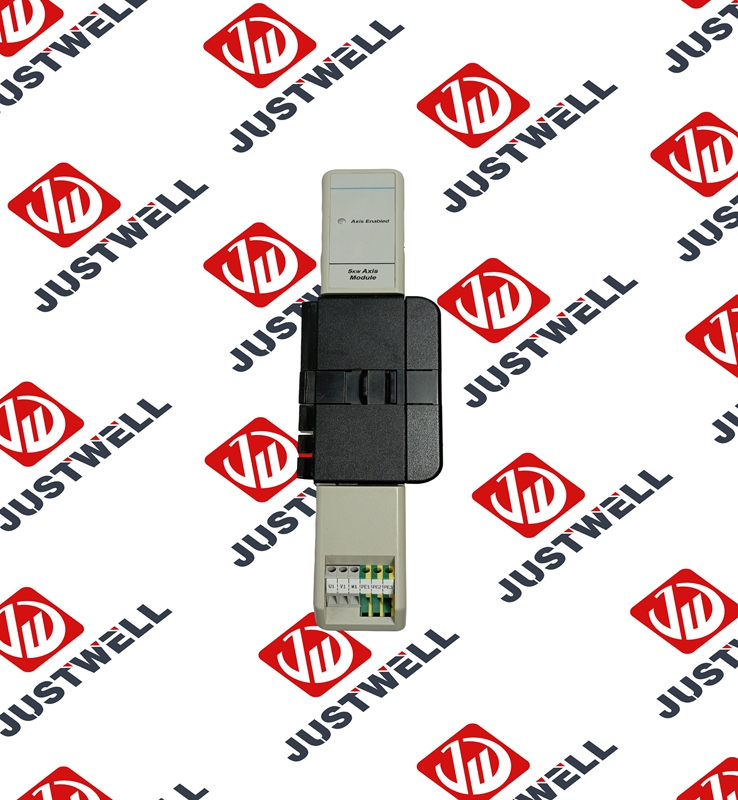

The 1394-AM07 is a decentralized motion control component designed for integration into a multi-axis rack system. It is specifically a 7.5 kW Axis Module that slides into a 1394 system bridge, sharing a common DC bus provided by the main system module. This architecture allows for a "plug-and-play" expansion of motion axes while minimizing the footprint of the drive system. The module utilizes high-speed digital signal processing to manage velocity and torque loops, ensuring that motor performance is optimized for dynamic industrial tasks. It is designed to be paired with Allen-Bradley 1326AB high-performance servo motors.

Product Parameters

Product Type: Digital Servo Axis Module
Power Output: $7.5 \text{ kW}$ ( $10 \text{ HP}$ ) continuous output power
Output Current: $22.5 \text{ A}$ continuous current and $45 \text{ A}$ peak current for high-torque demands
Input Voltage: $530 \text{ VDC}$ to $680 \text{ VDC}$ (supplied via the system module DC bus)
Efficiency: Greater than 98% at rated load
Feedback Support: High-resolution resolver feedback for precise positioning
Communication: Integrated into the 1394 system backplane for seamless synchronization with the controller
Heat Dissipation: Approximately $135 \text{ Watts}$ at continuous rated output
Weight: Approximately $5.44 \text{ kg}$ ( $12 \text{ lbs}$ )

Product Advantages

A major advantage of the 1394-AM07 is its Modular Design, which significantly reduces the space required in an electrical cabinet compared to using multiple standalone drives. Since it shares a common DC bus, the system can utilize Regenerative Braking Energy from one decelerating axis to power another accelerating axis, leading to substantial energy savings. The Digital Integration ensures that there is zero drift in the control loops, providing repeatable and precise motion over years of operation. Furthermore, the Simplified Cabling between the system module and axis modules reduces installation time and minimizes the risk of wiring errors.

Important Considerations and Precautions

When installing or maintaining the 1394-AM07, it is critical to observe the DC Bus Discharge Time. After removing power, the DC bus capacitors can hold a lethal charge for several minutes; technicians must verify that the voltage has dropped below $50 \text{ VDC}$ before touching terminals. Electrostatic Discharge (ESD) protection is mandatory when handling the module to prevent damage to the sensitive internal microprocessors.

Environmental management is also vital; the module must be installed in a Clean, Dry, and Non-Corrosive Environment, as dust or moisture can cause internal short-circuiting. Ensure that the Cooling Fans within the 1394 system are operational and that the airflow vents are not obstructed, as the 1394-AM07 generates significant heat during peak operation. Finally, always verify the Firmware Compatibility between the axis module and the system module to prevent communication errors during startup.

Product Applications

The 1394-AM07 is widely used in complex, high-speed automated systems that require synchronized motion across multiple axes.

Automotive Manufacturing: Powering robotic welding arms and high-speed transfer lines where multi-axis synchronization is essential.
Packaging and Labeling: Controlling high-speed feeders, wrappers, and labeling machines that require rapid start-stop cycles.
Material Handling: Utilized in automated storage and retrieval systems (ASRS) and specialized sorting conveyors.
Metal Forming: Managing the precise movement of feed-to-length systems and high-speed stamping presses.
Printing and Converting: Driving rollers and tension control systems where constant velocity and torque are critical for print quality.
