AAI135-H03 YOKOGAWA

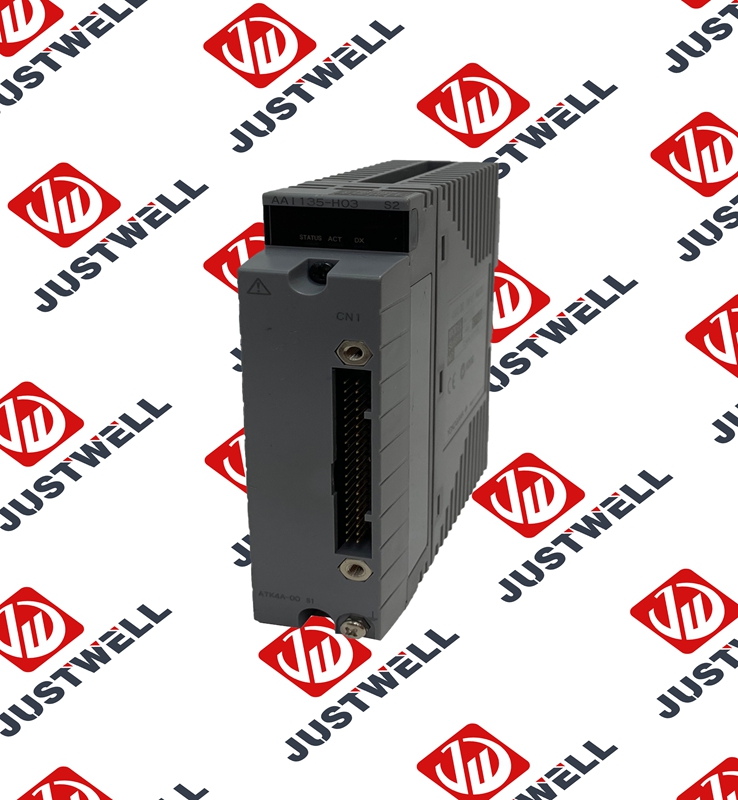

AAI135-H03 Yokogawa Input module

Brand：Yokogawa Model number：AAI135-H03

Country of origin: Japan Product weight：0.55kg

HS code：8538900000

Product Details：

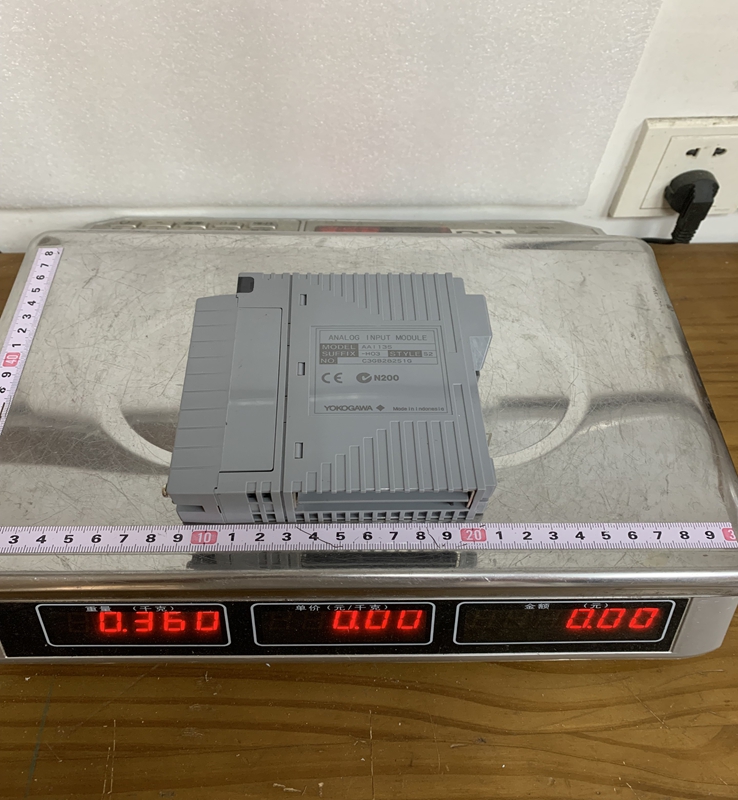

Product Dimensions：

The AAI135-H03 functions as a 16-channel analog input module that accepts standard 4 to 20 mA DC current signals from field transmitters, such as temperature, pressure, level, and flow sensors. The designation "-H03" indicates specific hardware features, including HART communication capabilities and pass-through functionality, allowing HART digital signals to be overlaid onto the standard analog current loop. This enables dual-way digital communication between field devices and the DCS asset management system alongside traditional analog measuring. The module supports dual-redundant configurations, where two modules can be installed in adjacent slots to ensure continuous operation without data loss in the event of a single hardware failure. It features galvanic isolation between the field signals and the internal system logic, preventing electrical interference and ground loops from damaging the central processor unit.

Product Parameters

Manufacturer: Yokogawa Electric Corporation
Model Code: AAI135-H03
Input Signal Type: 4 to 20 mA DC
Number of Input Channels: 16 channels, isolated between field and system, non-isolated between channels
HART Communication Support: Supported (HART pass-through functionality for digital device management)
Allowable Input Current: 24 mA DC maximum continuous input
Input Resistance: 250 ohms typical for current input
Accuracy: Within ±0.1% of full scale
Data Refresh Rate: 10 ms to 50 ms depending on control cycle configuration
Galvanic Isolation Voltage: 1500 V AC withstand voltage between field signal terminals and internal system bus
Power Supply Voltage: Supplied directly via the CENTUM system baseplate bus
Current Consumption: Maximum 330 mA at 5 V DC supply
Operating Temperature Range: -20°C to 70°C (-4°F to 158°F)
Operating Humidity Range: 10% to 90% RH (non-condensing)
Mounting Type: Plugs directly into standard Yokogawa field control unit (FCU) or node unit sub-racks

Product Advantages

A primary advantage of the AAI135-H03 module is its native HART protocol integration, which enables operators to perform remote diagnostics, configuration, and predictive maintenance on intelligent field instruments directly from the control room.

Its high-density 16-channel design optimizes sub-rack space, lowering overall cabinet footprints and reducing hardware infrastructure costs for large-scale industrial projects.

The module offers seamless dual-redundancy support, meaning a secondary standby module can immediately take over signal processing if the primary unit fails, maximizing system uptime and process safety.

Its high measurement accuracy and fast conversion response time deliver stable, high-fidelity real-time process values to control loops, ensuring precise automation and consistent product quality.

Robust hardware insulation and noise rejection circuitry safeguard the module against electrical surges and high-frequency interference common in harsh industrial plant environments.

Important Considerations and Precautions

Before installing or configuring the AAI135-H03, engineers must verify that all connected field instruments operate within the specified 4 to 20 mA loop power range and respect total circuit impedance limits to ensure accurate signal readings.

While the module provides isolation between field wiring and system logic, individual input channels share a common ground reference; external isolators should be installed if channel-to-channel isolation is mandatory for specific field circuits.

Modules should only be inserted into or extracted from sub-racks following strict hot-swapping procedures outlined by Yokogawa to prevent accidental signal bumps or system bus interruptions.

Ensure that the terminal block screws are torqued to manufacturer specifications and that shielded twisted-pair cables are correctly grounded at a single point to prevent ground loops from corrupting the HART digital communication signals.

Environmental conditions within the control cabinet, such as ambient temperature and humidity, must be maintained within approved operational boundaries using active cooling or ventilation if necessary to prolong electronic component life.

Product Applications

The Yokogawa AAI135-H03 is deployed extensively across continuously operated process industries where high channel density, measurement precision, and instrument diagnostic capabilities are essential.

Oil and Gas Processing: Monitoring pressure, temperature, and flow rate signals from upstream production manifolds, offshore platforms, and downstream gas separation units.
Petrochemical and Chemical Refining: Tracking process parameters in distillation columns, chemical reactors, storage tanks, and fluid catalytic cracking units.
Power Generation Facilities: Collecting real-time analog data from boiler feed systems, steam turbines, cooling towers, and emissions monitoring equipment in thermal and combined-cycle plants.
Water and Wastewater Treatment: Interfacing with level, flow, and analytical sensors across filtration beds, chemical dosing stations, and distribution pumping networks.
Pharmaceutical and Batch Manufacturing: Monitoring critical process variables in sanitary batch reactors, sterile storage tanks, and clean utility loops where compliance and continuous data tracking are required.
