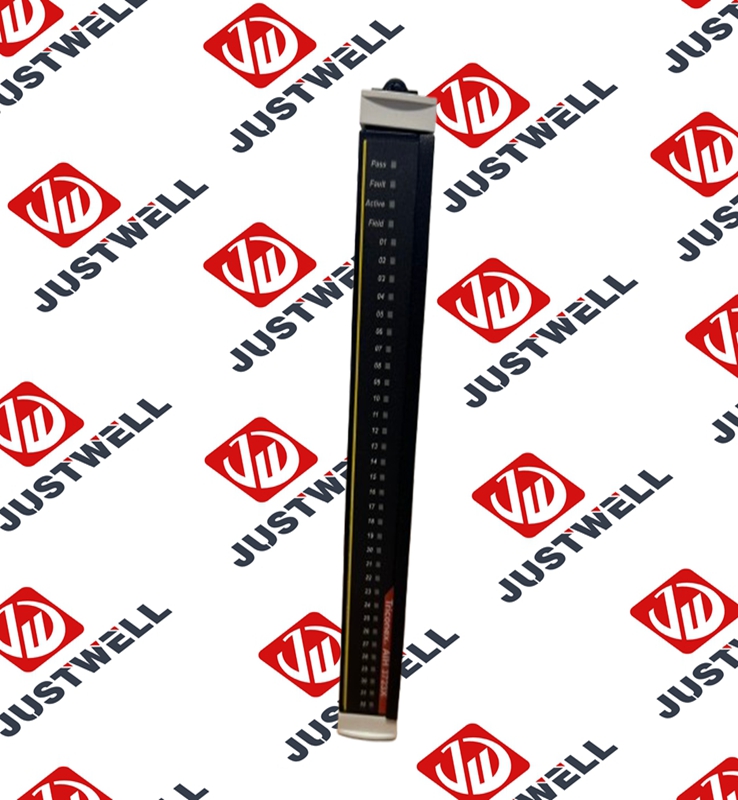

TRICONEX 3723X Power Supply

Brand：TRICONEX Model number：3723X

Country of origin: United States Product weight：2.26kg

HS code：8517623990

Inquire Now

Product Details：

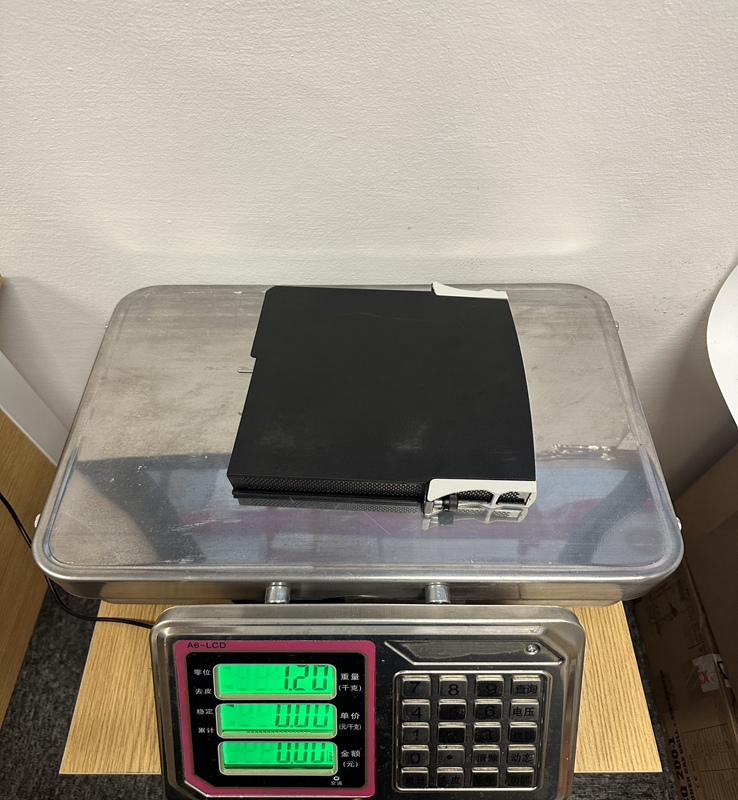

Product Dimensions：

The Triconex 3723X Analog Input Module is designed to accept multiple analog signals from field transmitters and convert them into digital data for processing by the main Triconex TMR controllers. Operating on a Triple Modular Redundant design, the module contains three independent processing channels on a single board. Each channel receives and processes the field signal separately. The primary controllers continuously execute a two-out-of-three voting algorithm to determine the true value of the input, guaranteeing that a failure in one signal path or component will not disrupt system operation or cause false trips. The module includes active diagnostic hardware that constantly checks the health of each channel, enabling continuous fault detection and online hot-swapping capability without interrupting active processes.

Product Parameters

Module Type: Triple Modular Redundant (TMR) Analog Input Module
Input Channels: 16 differential channels, individually isolated
Input Signal Range: 0 to 5 VDC or 0 to 10 VDC configurable signal levels
Resolution: 12-bit analog-to-digital conversion resolution
Accuracy: Within +/- 0.15 percent of full-scale range at operating temperature
Update Rate: Fast channel scan rate, typically under 25 milliseconds for all channels
Isolation: Channel-to-channel and channel-to-bus galvanic isolation rated up to 500 VDC
Power Supply: Powered via the Triconex backplane chassis, drawing typical system voltage of 24 VDC
Diagnostics: Comprehensive self-diagnostics covering A/D converters, reference voltages, and internal memory logic
Hot Swap Capability: Supports live insert and removal in an active chassis paired with a redundant slot
Operating Temperature Range: 0°C to 60°C (32°F to 140°F)
Storage Temperature Range: -40°C to 85°C (-40°F to 185°F)
Operating Humidity: 5 to 95 percent non-condensing

Product Advantages

The primary advantage of the Triconex 3723X module is its superior TMR fault tolerance, which provides maximum system availability and minimizes the risk of costly unscheduled process shutdowns.

The built-in two-out-of-three voting mechanism prevents single-point hardware failures from affecting the control process or causing spurious trips.

Its high-grade galvanic channel isolation protects internal logic circuitry from high-voltage spikes, electrical noise, and ground loops common in harsh industrial field environments.

Continuous automated self-diagnostics allow maintenance personnel to detect degrading performance or component failures immediately before safety integrity is compromised.

Support for online module replacement allows engineers to replace a malfunctioning card while the safety system remains online and fully operational, avoiding plant downtime.

Important Considerations and Precautions

Before installing or servicing the Triconex 3723X module, ensure proper electrostatic discharge (ESD) protection, as sensitive microelectronics can be degraded by static charges.

Always verify that the input voltage ranges of field transmitters match the configured input limits of the module to prevent saturation or hardware damage.

When configuring analog signals, correct external termination blocks and properly shielded twisted-pair cables must be used to eliminate electromagnetic interference.

Inspect the chassis backplane connectors to ensure no bent pins or debris are present before inserting the module into its designated slot.

Firmware and module slot configuration settings in the TriStation 1131 software must match the hardware revision of the 3723X to prevent chassis communication faults.

Maintain a dual-module redundant slot arrangement if continuous process safety coverage during routine maintenance or module replacement is required.

Product Applications

The Triconex 3723X Analog Input Module is essential in high-hazard process industries requiring compliance with international functional safety standards such as IEC 61508 and IEC 61511 up to SIL 3 ratings.

Emergency Shutdown Systems (ESD): Monitoring critical pressure, level, and temperature transmitters in chemical plants and oil refineries to trigger automated safety shutdowns during hazardous conditions.
Fire and Gas Detection Systems (F&G): Processing analog signals from gas detectors, flame sensors, and thermal sensors across offshore platforms and industrial sites to detect hazardous leaks early.
Burner Management Systems (BMS): Continuously measuring fuel flow rates, combustion chamber pressures, and furnace temperatures in large industrial boilers and fired heaters.
Turbomachinery Control and Protection: Monitoring speed, pressure, and valve positions for large steam and gas turbines to prevent mechanical overspeed or structural failure.
Pipeline Monitoring and Leak Detection: Gathering continuous analog measurements from remote pumping stations and mainline pressure sensors to maintain transportation integrity.
