C98043-A1680-L1 C98040-A1680-P2-3-Z186 6SE7090-0XX85-1DA0 SIEMENS

C98043-A1680-L1 C98040-A1680-P2-3-Z186 6SE7090-0XX85-1DA0 Siemens Basis unit

Brand：SIEMENS Model number：C98043-A1680-L1 C98040-A1680-P2-3-Z186 6SE7090-0XX85-1DA0

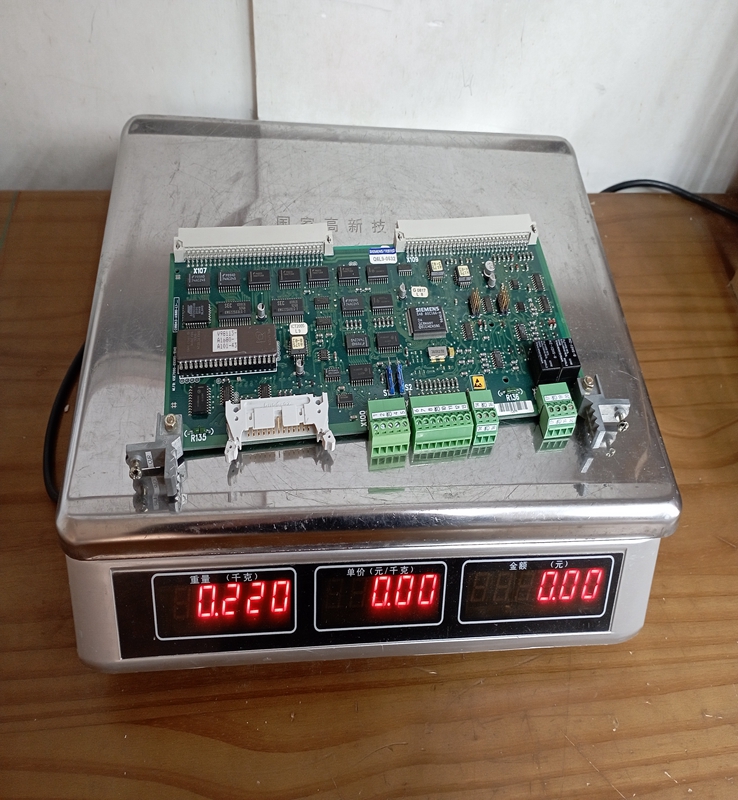

Country of origin: Germany Product weight：0.55kg

HS code：8517623990

Product Details：

Product Dimensions：

The part numbers you listed correspond to specific components within the SIEMENS SIMOREG DC Master series or related accessory/documentation codes for the SIEMENS MASTERDRIVES family of converters and inverters.

1. General Product Identification

C98043-A1680-L1 and C98040-A1680-P2-3-Z186 are typically ordering codes or documentation/configuration codes used internally by Siemens for specific versions, software, or configuration details, often related to the SIMOREG DC Master (6RA70) or MASTERDRIVES (6SE70) product lines.
6SE7090-0XX85-1DA0 is a formal SIEMENS order number for a supplementary component or accessory of the MASTERDRIVES VC/MC family, specifically the 6SE70 series. The "0XX85" typically denotes a special version, interface, or a specific type of connection or adapter.

2. Product Detailed Description

The 6SE70 series, known as MASTERDRIVES, is a highly versatile and modular system of frequency inverters and DC converters used for high-performance drive applications. The overall system is designed for demanding industrial environments, offering high power density and sophisticated control capabilities for both standard and vector control (VC/MC).

3. Product Parameters (General to the 6SE70 Line)

Control Method: Vector Control (VC) and Motion Control (MC) for high dynamic performance, or simple V/f control.
Power Range: Varies significantly by specific unit, ranging from a few kilowatts up to several megawatts.
Supply Voltage: Typical industrial standards, such as 3-phase 380-480V or 500-690V AC.
Interfaces: Standard interfaces include digital and analog I/O, as well as communication modules like PROFIBUS DP, Industrial Ethernet, and DeviceNet.
Cooling: Air-cooled or liquid-cooled options are available depending on the power rating.
Protection Class: Often IP20 for cabinet installation.

4. Product Advantages

High Performance and Dynamics: Offers excellent speed and torque control, crucial for applications requiring rapid acceleration and precise positioning.
Modularity: The system is highly modular, allowing easy expansion with additional technology or communication modules.
Integrated Functions: Includes built-in technology functions such as positioning control, synchronous operation, and speed/position encoders evaluation.
Reliability: Built for heavy-duty industrial use, offering robust construction and a long service life.
Diagnostic Capabilities: Comprehensive diagnostic and monitoring functions for quick troubleshooting and reduced downtime.

5. Precautions (Safety and Operational Notes)

Personnel Qualification: Installation, commissioning, and maintenance must only be carried out by qualified and trained personnel who are familiar with the safety instructions and warning labels.
Voltage Safety: Drive systems operate with high voltages. Ensure the main power supply is disconnected and sufficient time for discharge has passed before touching any components.
Grounding: The motor and the converter must be properly and securely grounded according to local electrical codes to ensure safe operation and electromagnetic compatibility.
Parameter Backup: Always back up the drive parameters before making any significant changes or replacing a module.
Environmental Conditions: The unit must be operated within the specified environmental conditions (temperature, humidity, and pollution degree) to prevent damage and ensure reliable function.

6. Product Applications

The high-performance nature of the SIEMENS MASTERDRIVES 6SE70 series makes it suitable for demanding industrial applications, including:

Cranes and Hoisting Gear: For precise speed and torque control required for lifting and moving heavy loads.
Extruders and Mills: Where high starting torque and constant speed control are necessary.
Printing and Paper Machines: Requiring high synchronization accuracy between different drive sections.
Test Benches: For accurate simulation and dynamic control of motor speed and load.
Machine Tools: Including CNC machines where precise positioning and rapid movements are essential.
