A5E02424682-001 SIEMENS

A5E02424682-001 Siemens Basis unit

Brand：SIEMENS Model number：A5E02424682-001

Country of origin: Germany Product weight：0.55kg

HS code：8517623990

Product Details：

Product Dimensions：

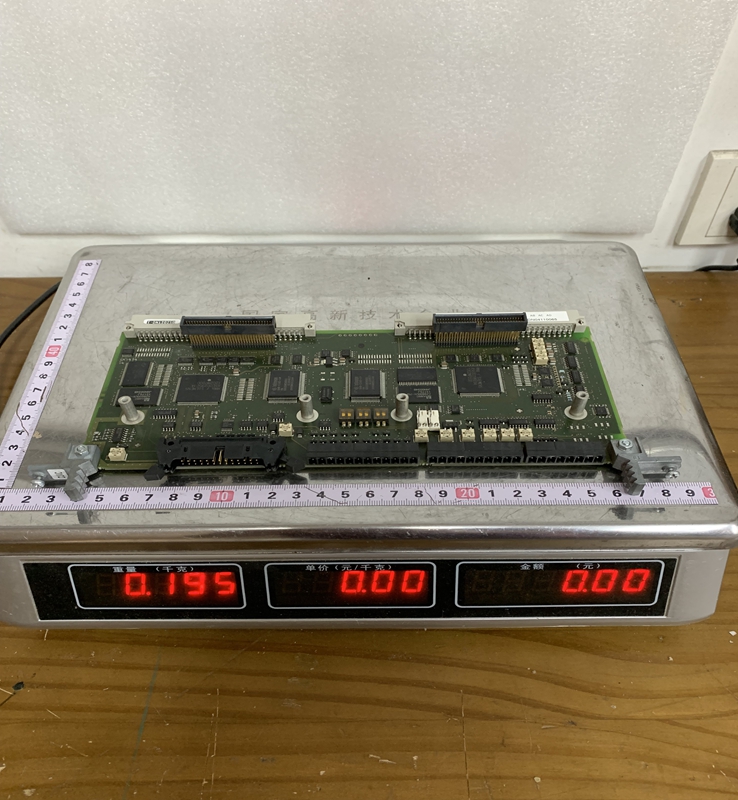

The A5E02424682-001 is a factory-level replacement or functional component board engineered to meet strict industrial reliability standards. It is installed directly inside the chassis of SINAMICS power modules or control units to deliver stable regulated direct-current power to internal microcontrollers, gate drivers, and communication interfaces. The board features integrated protection circuits that shield the sensitive control architecture from high-voltage transients originating from the main power grid or motor side inverter operations.

Product Parameters

Product Type: Power Supply Board / Internal Control Module
System Family: Siemens SINAMICS S120 Drive Series
Input Voltage: Accepts internal DC bus voltages or low-voltage DC logic supplies, typically $24 \text{ VDC}$ auxiliary input depending on the chassis configuration
Output Voltages: Provides multiple regulated internal DC rails for control logic and gate driving circuits
Operating Temperature Range: $0\text{°C}$ to $55\text{°C}$ ( $32\text{°F}$ to $131\text{°F}$ ) inside the drive housing
Cooling: Relies on the host drive's forced air cooling system
Compliance: Manufactured to standard industrial immunity and emission standards (CE, UL listed when integrated into the host drive)

Product Advantages

A primary advantage of the A5E02424682-001 is its OEM Precision and Compatibility. Being an authentic Siemens part, it guarantees seamless plug-and-play integration with the internal backplane of the corresponding drive unit without needing custom calibration. The High Noise Immunity built into the circuit design ensures stable operation even in environments with heavy electromagnetic interference caused by high-frequency switching transistors. Additionally, the Robust Circuit Protection includes overcurrent and thermal safeguards that help prevent cascading failures to other drive components during power surges.

Important Considerations and Precautions

When handling or replacing the A5E02424682-001, electrostatic discharge (ESD) protection is paramount; technicians must wear grounded wrist straps to avoid damaging the sensitive micro-components on the board. Before attempting installation or removal, you must verify that the main power to the drive chassis is disconnected and wait for the DC link capacitors to discharge fully, as residual voltages can exceed several hundred volts and pose a lethal shock hazard. Ensure that all mechanical fasteners and internal ribbon connectors are locked tightly into place to prevent intermittent connection faults caused by machine vibration.

Product Applications

The Siemens A5E02424682-001 is used across demanding automation sectors where SINAMICS drive systems are deployed.

Metal Processing: Installed in heavy-duty drive cabinets powering rolling mills, wire drawing machinery, and industrial shears.
Textile and Printing Machinery: Employed in multi-axis synchronized drive networks requiring continuous, ripple-free power for precise speed control.
Material Handling and Cranes: Utilized in high-capacity hoist and travel drives that require reliable power distribution under fluctuating load conditions.
Automotive Manufacturing: Supporting multi-axis robotic motion control systems and automated conveyor lines.

6ES7972-0CB20-0XA0 SIEMENS

We have the same series of models in stock. If you don't find the model you need, please contact us and we will provide you with an official quotation！
