S-D4008-A RELIANCE

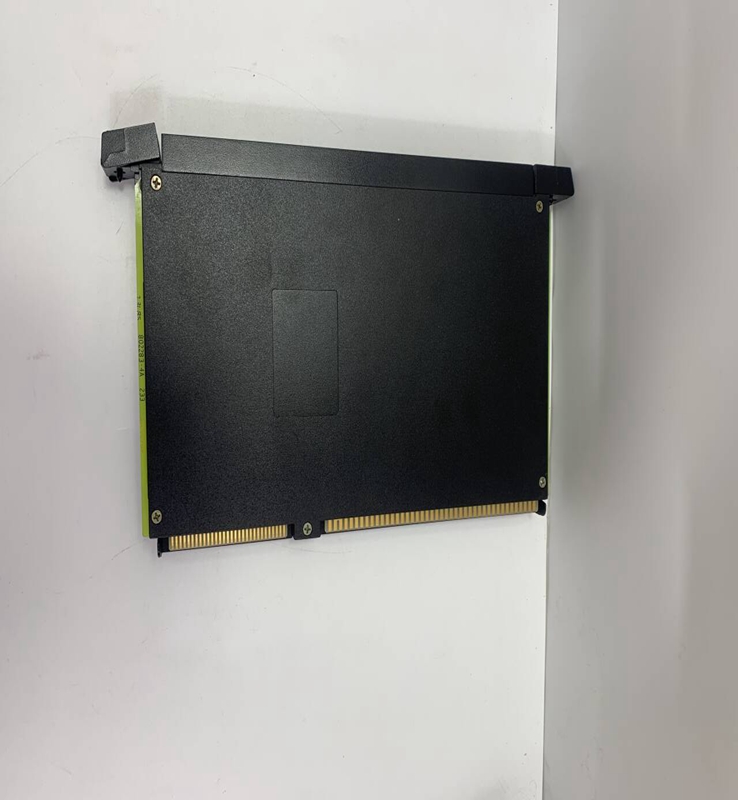

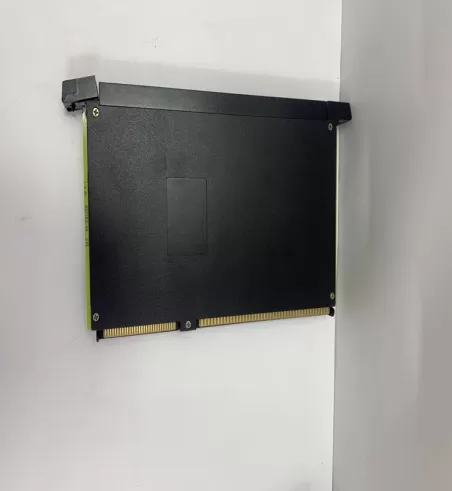

Reliance S-D4008-A Central unit

Brand：RELIANCE Model number：S-D4008-A

Country of origin: United States Product weight：0.55kg

HS code：9032899099

Product Details：

Product Dimensions：

In the context of industrial automation, a "Central Unit" from a manufacturer like the historical Reliance Electric (now part of ABB via Baldor) typically refers to the Central Processing Unit (CPU) or Processor Module of a Programmable Logic Controller (PLC) or similar industrial controller. This unit is the "brain" of the automation system, responsible for executing the control logic, managing I/O operations, and facilitating communication.

Product Details

Core Function: The central unit is the core component that processes the user-defined control program (ladder logic, function block diagram, etc.). It reads inputs from I/O modules, executes the logic, and writes outputs to I/O modules to control industrial processes.
Architecture: Older Reliance central units were often designed as dedicated modules that plugged into a backplane or rack, alongside power supplies and I/O modules. They would typically have an on-board processor, memory for program storage and data, and communication ports.
Key Components:

Program Memory: Stores the user application program (e.g., ladder logic).
Data Memory: Stores variable values, timers, counters, and other operational data.
Retentive Memory (e.g., EEPROM, NVRAM): Used to store critical data that needs to be retained even during power loss.
Microprocessor/CPU: The primary component that executes the control program.
Memory:
Communication Interfaces: Ports for programming devices, HMI (Human Machine Interface) connections, and communication with other controllers or networks. Common interfaces included serial ports (e.g., RS-232, RS-485) and, in later models, proprietary industrial networks (e.g., R-Net for Baldor/Reliance AutoMate PLCs).
Diagnostic Indicators: LEDs for power, run/stop status, and error conditions.

Product Parameters (Typical for Industrial CPUs of that era)

Processor Type: Often utilized industry-standard microprocessors (e.g., Intel 801 in some Baldor/Reliance AutoMate PLCs).
Program Memory Size: Measured in kilobytes (KB) or words (e.g., 4K, 8K, 16K words), dictating the complexity of the control program.
Data Memory Size: Also in KB or words, for storing process variables and internal data.
Scan Time/Execution Speed: The time it takes for the CPU to execute one full cycle of the program, typically in milliseconds (ms). Faster scan times are critical for high-speed applications.
Communication Ports: Number and type of serial ports (e.g., 1x RS-232, 1x RS-485) or dedicated network ports.
Power Supply: Often powered by the system's rack power supply (e.g., 5V DC internally, supplied from 24V DC, 120V AC, or 240V AC).
Operating Temperature: Standard industrial ranges, typically 0°C to 60°C (32°F to 140°F).
Mounting: Rack-mount or panel-mount, designed for integration into industrial control cabinets.

Product Advantages (Historically)

Robustness: Built for demanding industrial environments, resistant to electrical noise, vibration, and temperature fluctuations.
Dedicated Control: Designed specifically for real-time control, providing deterministic and reliable operation.
Modular Expansion: Allowed for flexible expansion of I/O points and communication capabilities by adding additional modules to the rack.
Programming Flexibility: Supported standard industrial programming languages (primarily ladder logic) for easier development and troubleshooting.
Integration (within its ecosystem): Seamlessly integrated with other Reliance I/O and communication modules.
Longevity: Many of these units were designed for long operational lifespans, a common characteristic of industrial control equipment.

Important Considerations

Obsolescence: As "Reliance" in the industrial control space has undergone acquisitions and product line changes, many older "Reliance Central Units" are now considered legacy or obsolete. This can impact spare parts availability, technical support, and compatibility with modern systems.
Programming Software: Requires specific, often older, programming software that may not be compatible with modern operating systems.
Documentation: Accessing comprehensive documentation for legacy products can sometimes be challenging.
Migration/Upgrade: For current projects, migrating from older Reliance systems to newer PLC platforms (e.g., from Rockwell Automation, Siemens, or the current ABB lineup) is often a necessary consideration due to support and technology advancements.
Cybersecurity: Older systems were designed before modern cybersecurity threats were prevalent and may lack integrated security features.

Product Applications (Historical and Current Legacy Systems)

Discrete Manufacturing: Control of assembly lines, packaging machinery, material handling systems (conveyors, robotics).
Process Control: Batch processing, continuous control in industries like food and beverage, chemicals, pharmaceuticals, and water treatment.
Machine Control: Automation of individual machines like presses, machine tools, and textile machinery.
Building Automation: Control of HVAC, lighting, and security systems in industrial or large commercial facilities.
Power Generation and Distribution: Control within substations or power plant auxiliary systems.
