BM-60031-2 RELIANCE

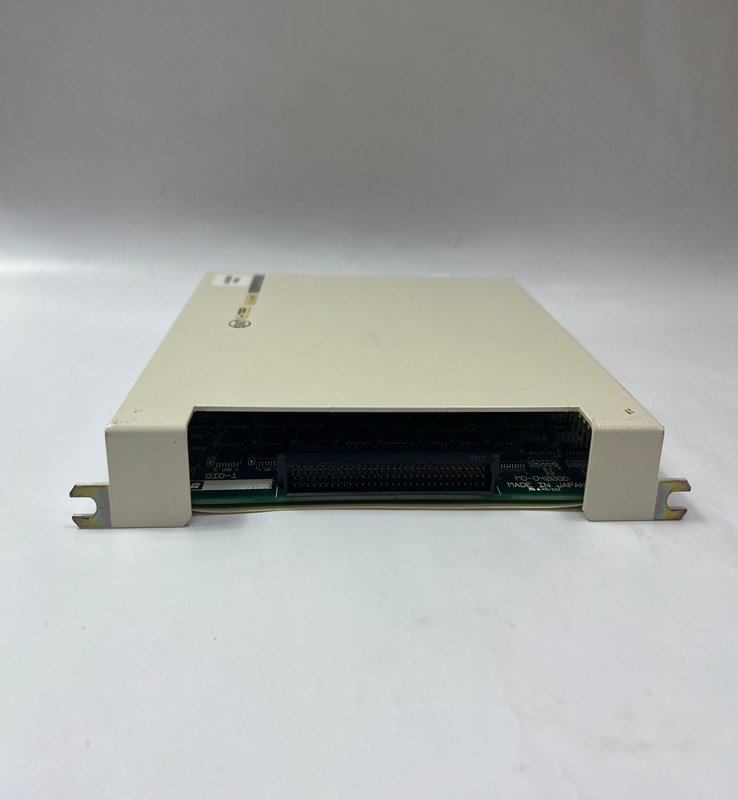

Reliance BM-60031-2 Multi-Function Processor Module

Brand：RELIANCE Model number：BM-60031-2

Country of origin: United States Product weight：0.55kg

HS code：9032899099

Product Details：

Product Dimensions：

A Reliance Multi-Function Processor Module represents a central processing unit (CPU) within a larger automation system. Unlike basic logic modules, these units were engineered to execute more complex programs, manage larger amounts of data, and often support multiple programming languages or control strategies concurrently. This "multi-functionality" typically refers to their ability to perform ladder logic, BASIC, and control block programming, or to handle both discrete and analog control, and potentially integrate motion control aspects.

Functionality: These modules are the computational heart of the control system. They read inputs from connected I/O modules, execute control algorithms and logic based on the programmed application, and then send commands to output modules. Their "multi-function" aspect implies a robust processing capability that can handle not just Boolean logic but also arithmetic operations, data manipulation, sequence control, timing, counting, and potentially advanced control loops (e.g., PID). Some versions were even designed to manage communication across a distributed network of control devices.
Architecture: They typically operate within a rack or chassis, communicating with various I/O modules, power supplies, and other specialized modules over a high-speed backplane. More advanced models might support multiprocessing, allowing multiple processor modules to reside in the same rack, sharing resources or handling distinct tasks for increased system performance and redundancy.
Key Features:

Multiple Programming Languages/Methods: Support for ladder logic, structured text (like BASIC), and/or control block programming, offering flexibility to designers.
Advanced Data Processing: Capabilities for complex calculations, data logging, and recipe management.
Extensive Memory: Larger program and data memory capacities compared to basic processors, often with battery backup for retaining data during power loss.
Integrated Communication: Multiple serial ports (e.g., RS-232, RS-485) and network interfaces (like Reliance's R-NET or Autobus) for connecting to HMIs, SCADA systems, other PLCs, or intelligent devices.
Diagnostic Indicators: LEDs and fault codes to provide real-time status and aid in troubleshooting.
Real-time Clock: For time-stamping events and scheduling.
Robustness: Designed for continuous operation in harsh industrial environments.

Product Parameters

As these are historical products, exact specifications depend on the specific model (e.g., AutoMate 40, AutoMax processor modules like 57C435A). However, general parameters would include:

Processor Speed: Often specified in MHz (e.g., 25 MHz CPU speed) or execution time per K-ladder element (milliseconds).
Memory Capacity: Program memory (e.g., hundreds of KBs to MBs of non-volatile RAM or flash) and data memory.
I/O Point Capacity: The maximum number of discrete and analog I/O points the processor can manage.
Power Requirements: Operating voltage (e.g., 5V DC supplied from the backplane, which itself is powered by a system power supply).
Communication Ports: Number and type of serial ports (e.g., 2x RS-232 ports) and network capabilities.
Battery Backup: Typically included to retain RAM data during power outages, with specified battery life.
Operating Temperature Range: Standard industrial range, usually -25°C to 70°C.
Mounting: Designed for specific rack or chassis systems (e.g., AutoMax card rack assembly).

Product Advantages

High Performance: Capable of handling complex control algorithms and high-speed processes, making them suitable for demanding applications.
Flexibility in Programming: Support for multiple programming paradigms allows engineers to choose the most efficient method for different tasks.
Scalability: Often designed as part of modular systems, allowing for easy expansion of I/O or even adding redundant processors.
Distributed Control Capabilities: Advanced models within the AutoMax DCS family enabled distributed control, improving system resilience and reducing wiring.
Data Handling: Enhanced memory and processing power for logging data, managing recipes, and performing advanced calculations crucial for process optimization.
Reliability: Built to withstand the rigors of industrial environments, ensuring long-term stable operation.

Important Considerations

Obsolescence: These modules are legacy products. Sourcing new components can be difficult, and finding specialized technical support or repair services may be challenging. Planning for system upgrades or having robust spares management is essential for long-term operations.
Programming Environment: Requires older programming software and potentially specific hardware interfaces, which might run on older operating systems.
Documentation: Access to original manuals and technical specifications is crucial for programming, troubleshooting, and maintenance.
System Integration: Ensure compatibility with existing Reliance I/O modules, communication networks, and supervisory systems (HMIs/SCADA).
Cybersecurity: For systems connected to networks, older modules may lack modern cybersecurity features, requiring careful network segmentation and protection.
Battery Maintenance: Regular checking and replacement of battery backups are vital to prevent loss of program or data in RAM.

BM-60031-2 RELIANCE

We have the same series of models in stock. If you don't find the model you need, please contact us and we will provide you with an official quotation！
