803603SC RELIANCE

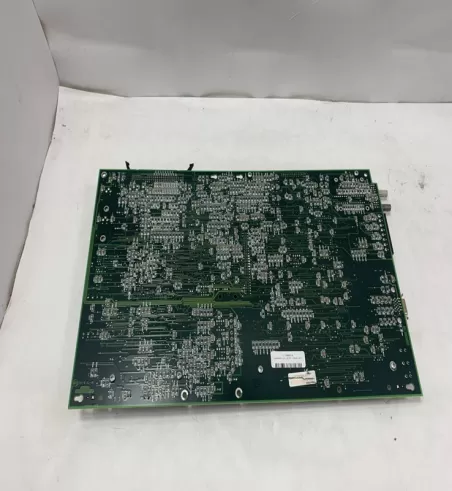

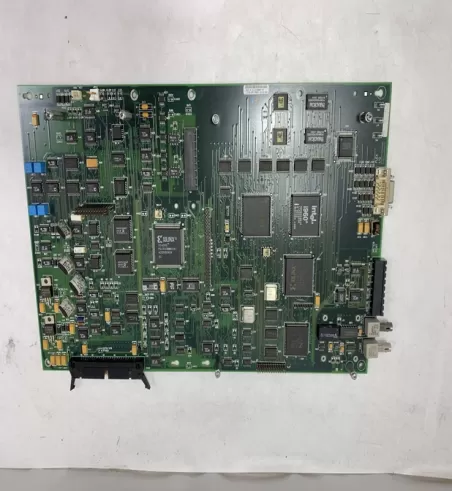

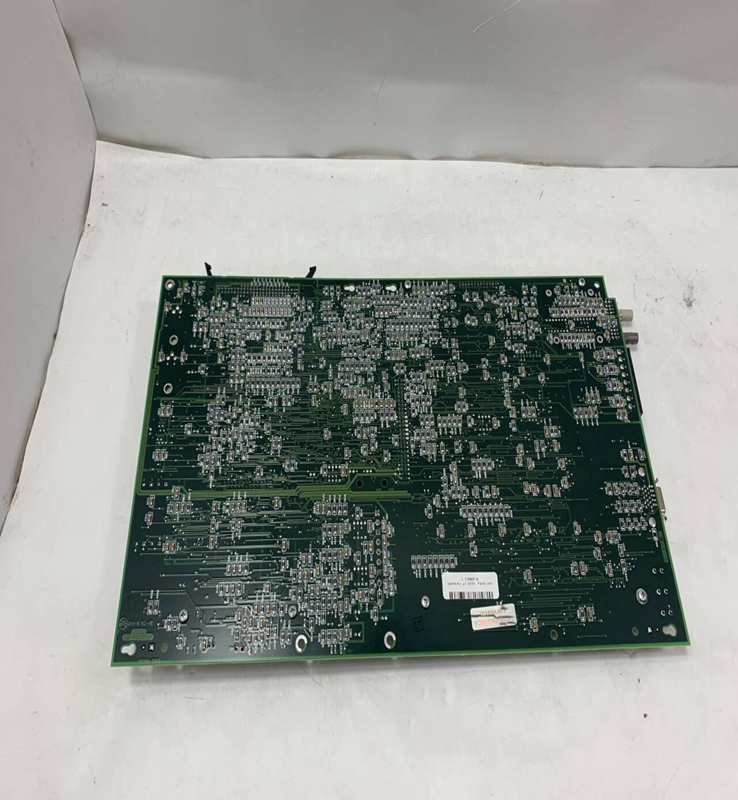

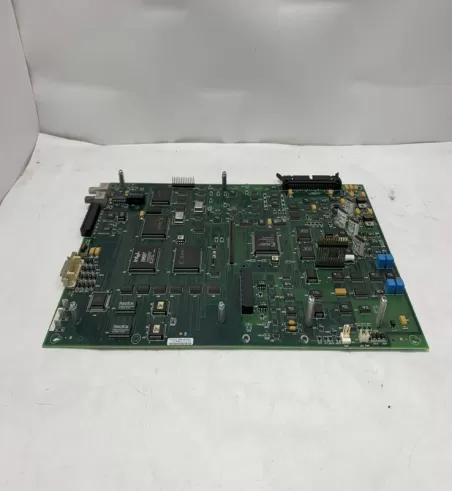

Reliance 803603SC Output Module

Brand：RELIANCE Model number：803603SC

Country of origin: United States Product weight：0.55kg

HS code：9032899099

Product Details：

Product Dimensions：

A Reliance Output Module (such as models within the AutoMax series or those designed for specific drive systems) is an electronic device that translates control system commands into actionable electrical signals for industrial equipment.

Output modules primarily function by taking digital (on/off) or analog (variable voltage/current) signals from a controller and providing the necessary power and electrical characteristics to activate field devices. They are designed to ensure electrical isolation, protecting the sensitive control electronics from the potentially harsh electrical environment of industrial loads.

Common types include:

Digital Output Modules: These provide discrete on/off signals. They often use relays, transistors (for DC loads), or Triacs (for AC loads) as switching elements. Examples of controlled devices include motor starters, solenoid valves, indicator lights, and contactors.
Analog Output Modules: These convert digital data from the controller into continuous analog signals (e.g., 0-10V DC, 4-20mA). They are used for precise control of devices like variable speed drives, proportional valves, and analog meters that require a range of values rather than just on/off.

Key features typically include galvanic isolation between the control and field circuits, LED indicators for real-time status display, and integrated protection against electrical faults such as overloads and short circuits. Many modules also incorporate diagnostic capabilities to assist in troubleshooting.

Product Parameters

Specific parameters depend on the module's design and intended application, but common specifications include:

Output Voltage: For digital modules, typically 24V DC, 120V AC, or 230V AC. For analog modules, common ranges are 0-10V, +/-10V, 0-20mA, or 4-20mA.
Output Current: Maximum current rating per channel (e.g., 0.5A, 2A) and the total current capacity per module.
Number of Channels: The quantity of individual output points per module (e.g., 4, 8, 16, 32).
Switching Element: Specifies the type of internal switch (Relay, Transistor, Triac, or Solid-State).
Switching Speed: Important for high-frequency switching applications.
Resolution (Analog): The precision of the digital-to-analog conversion (e.g., 12-bit, 16-bit).
Isolation: The dielectric strength of electrical isolation between channels and logic (e.g., 2500V).
Operating Temperature: The ambient temperature range the module can safely operate within (e.g., 0°C to 60°C).
Power Dissipation: The maximum power consumed by the module (e.g., 30 Watts).
Backplane Power: The power required from the PLC backplane (e.g., +5 VDC at 1.2 Amps).

Product Advantages

Reliability: Reliance output modules are engineered for robust and continuous operation, ensuring high uptime in industrial settings.
Safety: They provide crucial electrical isolation, safeguarding the sensitive control system from potential electrical surges or faults in the field. Built-in overload and short-circuit protection further enhance safety.
Versatility: A broad range of module types and configurations allows them to interface with a wide variety of industrial actuators and devices, accommodating diverse application needs.
Precise Control: Analog output modules enable fine, proportional control over variable devices, significantly enhancing process accuracy and efficiency.
Ease of Integration: Designed for straightforward integration into PLC or DCS racks, often featuring keyed connections to prevent incorrect installation.
Diagnostic Feedback: Many modules include LED indicators on the front panel that provide immediate visual status feedback, aiding in quick troubleshooting and reducing downtime.

Important Considerations

Load Matching: It's critical to ensure the output module's voltage and current ratings precisely match the requirements of the connected field devices. Inductive loads may necessitate external protection like snubber circuits or diodes.
Output Type Selection: Choose the appropriate output switching type (relay, transistor, Triac) based on the load type (AC or DC) and the required switching speed and frequency.
Wiring Practices: Always adhere to industrial wiring standards, including proper wire sizing, grounding, and shielding, to prevent electrical noise and ensure safe operation.
Environmental Suitability: Verify that the module's operating temperature and humidity specifications are compatible with the installation environment.
System Compatibility: Confirm that the output module is compatible with the specific PLC or control system series it will be used with (e.g., AutoMax Multibus I/O systems).
Legacy Status: Many Reliance Electric modules are older products. While durable, availability of new modules, specific spare parts, or dedicated manufacturer support might be limited, potentially necessitating plans for upgrades or robust maintenance strategies.

61C544 RELIANCE

We have the same series of models in stock. If you don't find the model you need, please contact us and we will provide you with an official quotation！
