64977-29A RELIANCE

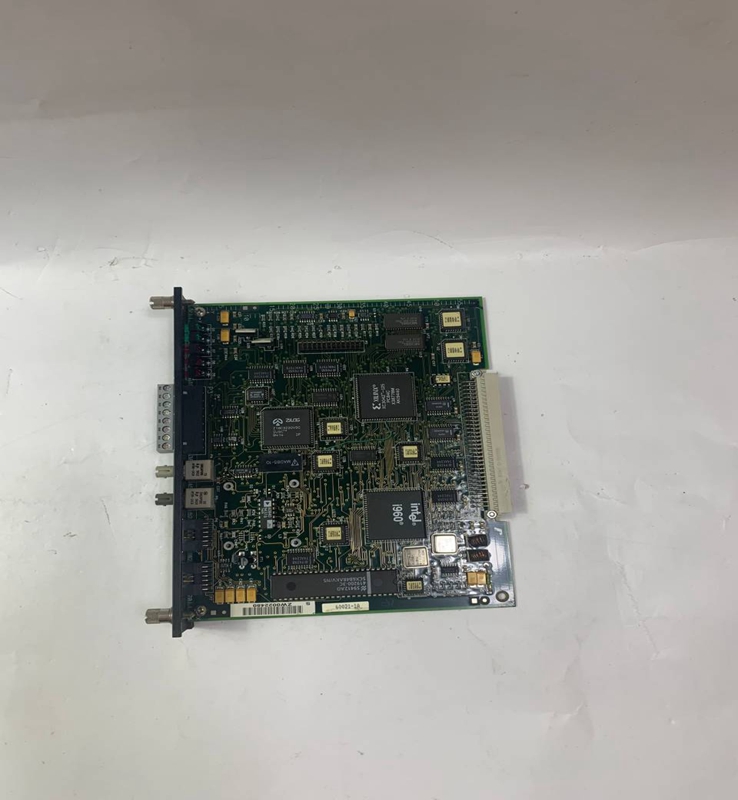

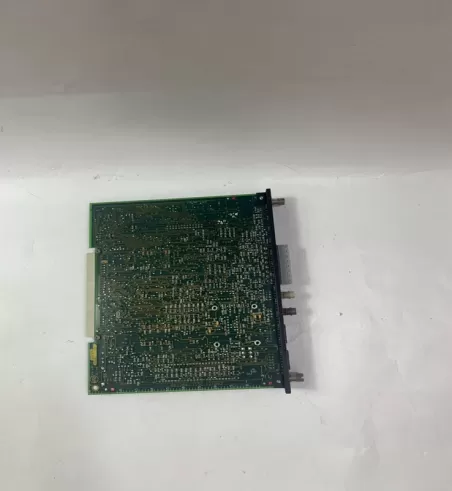

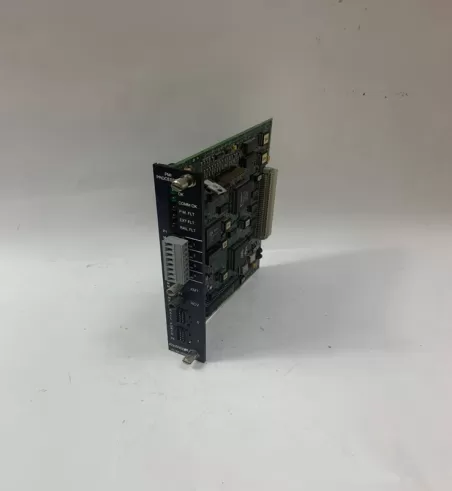

Reliance 64977-29A Multi-Function Processor Module

Brand：RELIANCE Model number：64977-29A

Country of origin: United States Product weight：0.55kg

HS code：9032899099

Product Details：

Product Dimensions：

RELIANCE Multi-Function Processor Modules are the "brains" of the control system. They execute the user-programmed logic, manage data, and orchestrate communication with other modules, such as I/O modules, communication modules, and other processors. They are designed for demanding industrial applications requiring high reliability and processing power.

Product Details

Core Function: These modules contain the Central Processing Unit (CPU) and memory necessary to run application programs. They are responsible for solving ladder logic, executing complex math operations, handling data manipulation, and managing the overall control flow.
Architecture: They typically operate within a rack-based system, plugging into a backplane that provides power and communication pathways to other modules in the same rack. In more advanced systems, they can participate in distributed control architectures, communicating with processors in other racks or systems.
Programming Languages: Historically, RELIANCE processors supported multiple programming languages to accommodate diverse control needs, including:

Ladder Logic: The traditional language for PLC programming, ideal for discrete control.
Control Block: Often used for continuous process control and more complex functions.
Enhanced BASIC: For applications requiring advanced calculations, data handling, or specialized algorithms.

Multi-processing and Multi-tasking: Many RELIANCE processor modules were designed with multi-processing capabilities, allowing multiple processors to reside in the same rack to share the control load and increase overall processing power. They also often supported multi-tasking operating systems, allowing different parts of the control program (tasks) to run concurrently based on assigned priorities.

Product Parameters (General, as specific modules vary)

CPU Speed: Measured in MHz (e.g., 8MHz for older AutoMax models). This indicates the processing capability.
Memory: Typically specified in KiloBytes (KB) or MegaBytes (MB) for program storage, data storage, and operating system functions. Often features non-volatile memory, meaning programs are retained without battery backup.
Communication Ports: Common interfaces include RS-232 serial ports for programming and diagnostics, and potentially proprietary network interfaces (like R-NET for some AutoMate models) for communication with other controllers or HMI systems.
Power Requirements: Modules draw power from the backplane, which is supplied by the system power supply, typically 24V DC or AC voltages (e.g., 120/240 VAC).
Rack Compatibility: Designed for specific rack systems (e.g., AutoMax 6010 rack).
Diagnostics: Often include LED indicators for status, battery health, and fault codes to aid in troubleshooting.

Product Advantages

Robustness and Reliability: Built for harsh industrial environments, offering high uptime and dependable performance.
Flexibility in Programming: Support for multiple programming languages allows engineers to choose the most effective method for different control challenges.
Scalability: Multi-processing and modular designs enable expanding processing power and I/O capacity as application needs grow without necessarily replacing the entire system.
Distributed Control Capabilities: Designed to participate in distributed control systems, allowing for geographically spread or highly complex control architectures.
Established Technology: For existing installations, these modules represent a proven and understood technology, simplifying maintenance and upgrades within their lifespan.

Important Considerations

Legacy Status: Many RELIANCE Multi-Function Processor Modules are considered legacy or obsolete products. While parts may still be available from third-party suppliers, direct manufacturer support might be limited. This impacts long-term spare parts availability and technical assistance.
Modernization: For new installations or significant upgrades, modern PLC/PAC platforms often offer significantly higher processing power, integrated communication capabilities, and more advanced features.
Software Compatibility: Programming and configuration require specific, often older, software tools that may need compatible operating systems.
Interoperability: Integrating with newer systems or standard industrial networks might require gateways or protocol converters.
Cybersecurity: Older systems generally have fewer built-in cybersecurity features, requiring careful network design and external security measures if connected to modern networks.
Battery Backup: While some memory is non-volatile, certain functions or retained data might rely on battery backup, which needs regular monitoring and replacement.

Product Applications

RELIANCE Multi-Function Processor Modules were widely applied across various industrial sectors, including:

Manufacturing: Machine control, assembly line automation, and discrete manufacturing processes.
Process Control: Regulating continuous processes in industries like chemicals, oil & gas, pharmaceuticals, and food & beverage.
Material Handling: Control of conveyors, robotic systems, and automated storage and retrieval systems (AS/RS).
Power Generation and Distribution: Control of generators, turbines, and substations.
Water and Wastewater Treatment: Automation of pumping stations, filtration plants, and distribution networks.
Pulp and Paper: Control of paper machines and associated processes.
