57C442-A RELIANCE

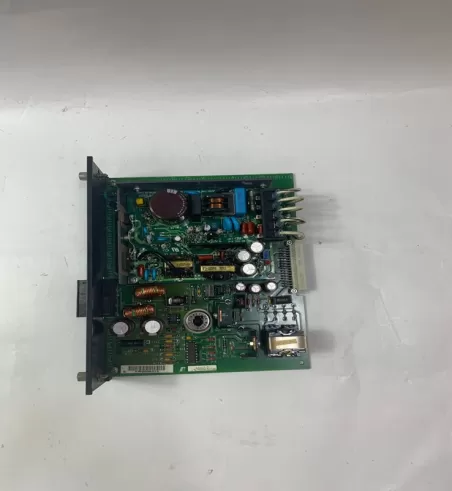

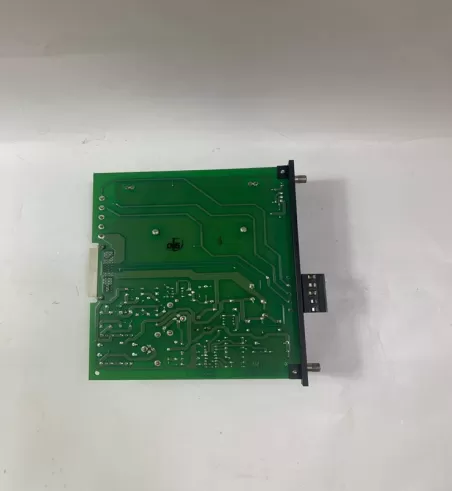

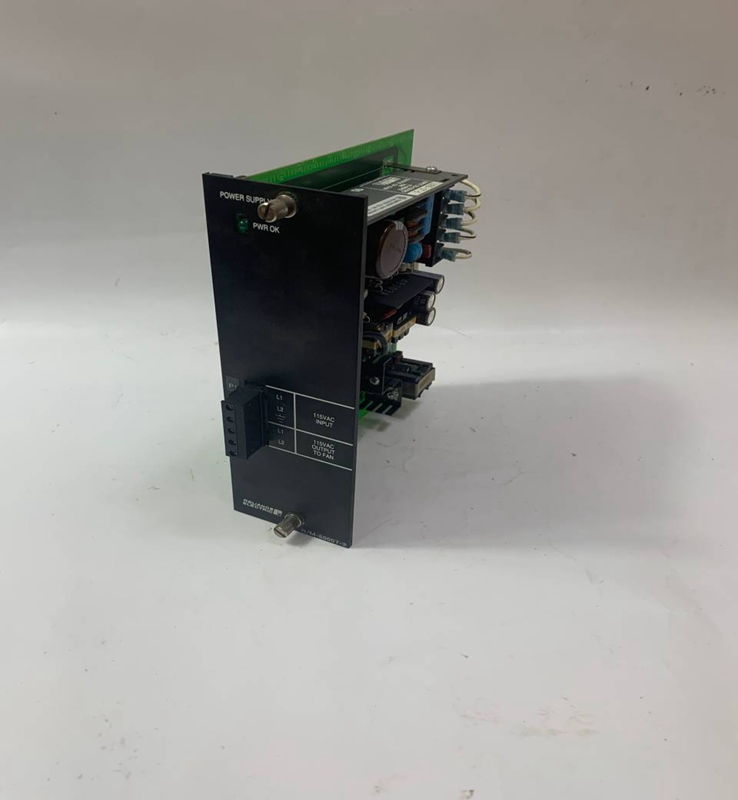

Reliance 57C442-A I / O module

Brand：RELIANCE Model number：57C442-A

Country of origin: United States Product weight：0.55kg

HS code：9032899099

Product Details：

Product Dimensions：

Reliance I/O modules are electronic components designed to provide the interface between industrial control systems (like PLCs or distributed control systems) and real-world field devices such as sensors, actuators, motors, and drives. They convert signals from the physical world into digital or analog data that the control system can process, and vice-versa.

Functionality: These modules allow the control system to:

Receive Inputs: Monitor the status of discrete devices (on/off signals from switches, pushbuttons, limit switches) and measure continuous process variables (temperature, pressure, flow) from analog sensors.
Send Outputs: Control discrete devices (turning on/off motors, lights, solenoids) and manipulate continuous process variables (adjusting valve positions, motor speeds) using analog output signals.

Types: Reliance I/O modules were available in various configurations to meet diverse application needs:

Digital Input Modules: For binary (on/off) signals.
Digital Output Modules: For binary (on/off) control.
Analog Input Modules: For continuous signals (e.g., 0-10V, 4-20mA).
Analog Output Modules: For continuous control signals.
Specialized Modules: Including high-speed counter modules, resolver input modules (for motor feedback), and communication interface modules to connect with drives or other systems.

Product Parameters

Specific parameters vary greatly by module type and series (e.g., AutoMate, AutoMax, or drive-specific modules). However, common parameters include:

Voltage Levels: Typically 24V DC for logic, and various AC or DC voltages for field devices (e.g., 120V AC, 230V AC).
Current Ratings: Maximum current draw per channel and total module current.
Number of Channels: Ranging from a few (e.g., 4, 8) to many (e.g., 16, 32) inputs or outputs per module.
Signal Type: NPN/PNP for digital, Voltage/Current for analog.
Isolation: Often optically isolated to protect the control system from field noise and voltage spikes.
Resolution (Analog): For analog modules, common resolutions include 12-bit or 16-bit, determining the precision of measurement or control.
Communication Protocol: How the I/O module communicates with the main controller (e.g., proprietary backplane bus, serial communication).
Operating Temperature Range: Designed for industrial environments, typically ranging from -25°C to +70°C or similar.
Mounting: Often rack-mounted or panel-mounted with terminal blocks for field wiring.

Product Advantages

Robustness and Durability: Reliance modules were built for demanding industrial environments, known for their sturdy construction and ability to withstand harsh conditions.
Reliable Performance: Engineered for consistent and dependable operation, crucial for maintaining uptime in industrial processes.
System Integration: Designed to integrate seamlessly with Reliance Electric's PLC and drive systems, providing a cohesive control solution.
Flexibility: A wide variety of module types allowed for tailored solutions to specific application needs, from simple machine control to complex process automation.
Diagnostics: Many modules included LED indicators for quick visual status checks, aiding in troubleshooting.

Important Considerations

Legacy Status: Many Reliance Electric I/O modules are now considered legacy or discontinued by the original manufacturer. This can impact availability of new parts and direct factory support. Replacements often come from surplus markets or specialized repair services.
Compatibility: Ensure the module is compatible with your existing Reliance PLC, drive, or control system model and series.
Wiring and Installation: Adhere strictly to the original product manuals for correct wiring, grounding, and installation to ensure safety and proper operation. Improper wiring can damage the module or connected equipment.
Environmental Conditions: Always operate the modules within their specified temperature, humidity, and vibration limits to ensure longevity.
Troubleshooting Resources: Given their legacy status, readily available diagnostic tools and detailed manuals might be scarcer than for modern equipment. Relying on experienced technicians familiar with these systems is often crucial.
Spare Parts: Due to discontinuation, consider stocking critical spare modules if you rely heavily on these systems.

Product Applications

Reliance I/O modules found extensive use in various industrial sectors where their robust design and reliable performance were essential.

Manufacturing and Production: Machine control, assembly lines, material handling systems (conveyors, robotics), and packaging machinery.
Process Industries: Control and monitoring in chemical plants, oil and gas facilities, food and beverage processing, and water treatment.
Metals Industry: Control of rolling mills, furnaces, and other heavy machinery.
Power Generation: Control and monitoring within power plants and distribution systems.
Drive Control: Resolver input modules were specifically used in conjunction with Reliance drives for precise motor position and speed control in applications like web handling, cutting, and synchronized motion.
