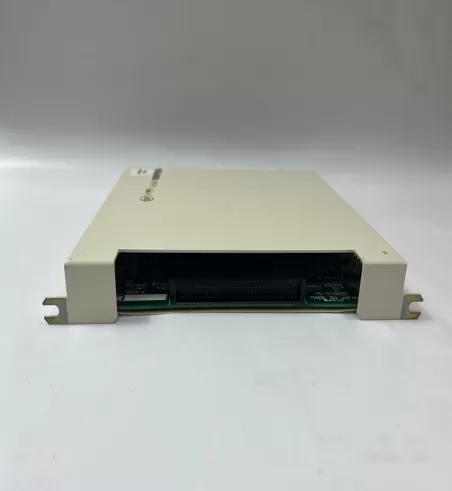

57430-1G RELIANCE

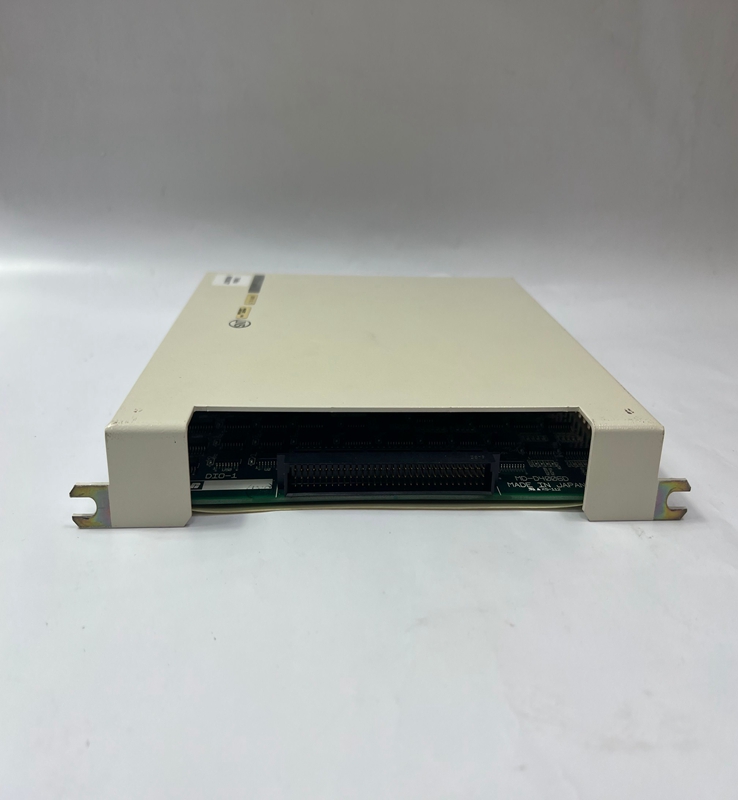

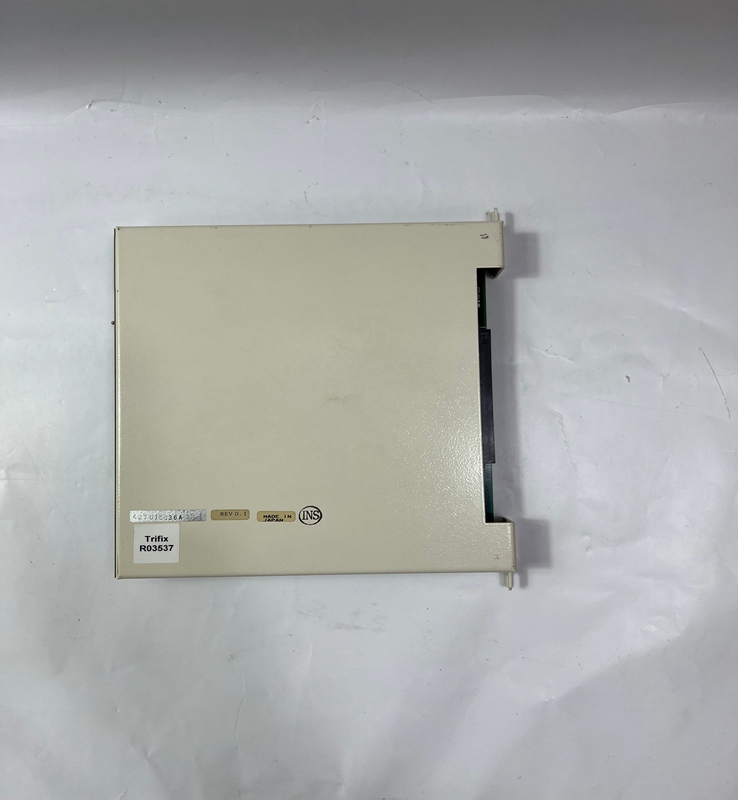

Reliance 57430-1G Central unit

Brand：RELIANCE Model number：57430-1G

Country of origin: United States Product weight：0.55kg

HS code：9032899099

Product Details：

Product Dimensions：

A Reliance Central Unit is the core component of an industrial control system. It contains the microprocessor, memory, and essential communication interfaces necessary to run the control program, manage I/O operations, and interact with other system components or human-machine interfaces (HMIs).

Functionality: The primary function of a central unit is to continuously execute the user-programmed logic. This involves reading input data from connected I/O modules, performing calculations and logical operations based on the program, and writing output data to control field devices. It also manages system diagnostics, error handling, and communication with programming devices, other controllers, or supervisory systems.
Architecture: Typically, a central unit plugs into a backplane or chassis, which provides power and a high-speed communication bus to other modules like I/O modules, communication modules, and power supply units. Some central units might integrate a power supply or basic I/O directly.
Key Components:

Microprocessor: The "brain" that executes the control program.
Memory: RAM (for program execution and data), ROM/Flash (for firmware and non-volatile user program storage). Reliance units often boasted non-volatile memory that didn't require a battery for program retention, a significant advantage for reliability.
Communication Ports: Serial ports (e.g., RS-232, RS-485) for programming, diagnostics, and connecting to other devices. Some units included network interfaces for industrial communication protocols (e.g., Reliance's proprietary R-NET industrial network).
Diagnostic Indicators: LEDs (e.g., "BAT. OK," "RUN," "FAULT") and sometimes 7-segment displays for status and error codes, aiding in quick troubleshooting.

Product Parameters

Specific parameters vary depending on the model (e.g., AutoMate 15, AutoMate 20, AutoMax 6011 Processor Module), but common specifications include:

Processing Speed: Often measured in milliseconds per K-ladder element (e.g., 4 ms/K, 10 ms/K), indicating how quickly the CPU can execute the control program.
Program Memory Size: The amount of non-volatile memory available for storing the user program (e.g., 1K x 16 bits, 2K x 16 bits, or larger for more complex applications).
Data Memory/Registers: The capacity for storing process data, timers, counters, and internal coils.
I/O Addressing Capability: The maximum number of digital and analog I/O points the central unit can manage (e.g., 64 digital I/O, 16 analog I/O, or hundreds for larger systems).
Communication Interfaces: Number and type of serial ports (e.g., two RS-232C ports on the AutoMax 6011 Processor Module), and network connectivity (e.g., R-NET capability).
Power Supply Requirements: The voltage required to power the central unit (e.g., 120/240 VAC, 24VDC), which may be supplied directly or through a dedicated power supply module in the chassis.
Operating Temperature: Standard industrial grade range, typically from -25°C to 70°C.
Programming Software Compatibility: The specific software and programming tools required (e.g., IBM compatible personal computer-based software or handheld programmers).

Product Advantages

Robust Reliability: Reliance central units were engineered for high reliability and continuous operation in demanding industrial environments, minimizing system downtime.
Non-Volatile Memory: A key advantage of many Reliance PLCs was their non-volatile memory, eliminating the need for a battery to retain the user program, thus reducing maintenance and improving uptime.
Extensive Diagnostics: Built-in diagnostic capabilities and status indicators simplified troubleshooting, allowing operators and technicians to quickly identify and address issues.
Ladder Logic Programming: Utilized familiar ladder diagram language, which was intuitive for many control engineers and technicians, facilitating programming and maintenance.
Modular Expansion: Designed to be part of a modular system, allowing for flexible expansion of I/O and communication capabilities by adding compatible modules.
Distributed Control: Some systems, like AutoMax, offered distributed control capabilities, enabling complex, networked automation solutions across large facilities.

Important Considerations

Legacy Status: Many Reliance Electric central units are legacy products. While robust, new unit acquisition can be challenging, and support might be limited to third-party vendors. Planning for modernization or securing spare parts is crucial for long-term operations.
Programming Environment: The programming software and hardware interfaces may be specific and potentially run on older operating systems or require specific adapters.
Network Compatibility: Ensure the central unit's communication capabilities (e.g., R-NET) are compatible with other devices and supervisory systems in your current or planned network architecture.
Power Supply Stability: A stable and clean power supply is essential for the reliable operation of the central unit and the entire control system.
Environmental Factors: While rugged, ensure the operating environment (temperature, humidity, vibration, electrical noise) remains within the central unit's specified limits to prevent premature failure.
Documentation: Access to original manuals and documentation is vital for proper configuration, troubleshooting, and maintenance.

Product Applications

Reliance central units have been deployed in a wide array of industrial applications, forming the backbone of automated control systems:

Automotive Manufacturing: Controlling assembly lines, robotic cells, and body shops.
Process Industries: Managing batch and continuous processes in chemical plants, food and beverage facilities, and pharmaceuticals.
Material Handling: Controlling conveyor systems, automated storage and retrieval systems (AS/RS), and packaging machinery.
Utilities: Used in power generation (e.g., for auxiliary controls), water treatment plants, and wastewater facilities.
Metals Industry: Controlling rolling mills, furnaces, and other heavy machinery.
Machine Building: Integrated into original equipment manufacturer (OEM) machinery for various industrial functions.
