45C201 RELIANCE

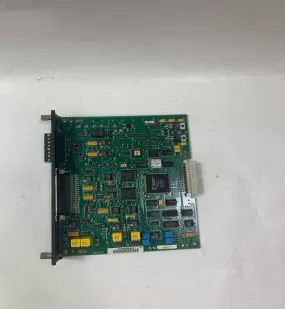

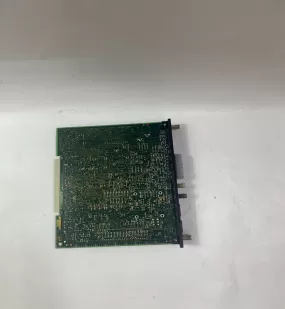

Reliance 45C201 Basis unit

Brand：RELIANCE Model number：45C201

Country of origin: United States Product weight：0.55kg

HS code：9032899099

Product Details：

Product Dimensions：

A Reliance Basis unit is the fundamental component of an automation system, housing the microprocessor, memory, and communication interfaces necessary to run an industrial control application. It is designed for robust and reliable operation in demanding factory and plant environments.

Functionality: The basis unit's primary function is to execute the user-programmed logic, which determines how a machine or process behaves. It continuously scans inputs from connected sensors, evaluates the program based on these inputs, and updates the outputs to control actuators. It also manages internal timing, counting, data manipulation, and communication with other system components.
Architecture: These units were often modular, meaning the basis unit would reside in a backplane or rack, with separate I/O modules, communication modules, and power supply modules plugging in alongside it. This modularity allowed for flexible system sizing and configuration.
Core Components:

Microprocessor: The "brain" that performs all logical and arithmetic operations.
Memory: Includes program memory (to store the user's control program), data memory (for variables, timers, counters), and often system memory (for operating system firmware). Most used non-volatile memory to retain programs during power loss.
Communication Ports: Typically serial ports (RS-232, RS-485) for programming and connecting to Human-Machine Interfaces (HMIs) or other controllers. More advanced "Basis units" (like AutoMax) offered industrial network interfaces (e.g., R-NET, or later, Ethernet modules) for distributed control.
Internal Bus: An internal high-speed bus allows the CPU to communicate rapidly with local I/O and other modules in the same rack.

Product Parameters

Specific parameters depend on the model and generation of the Reliance Basis unit (e.g., an AutoMate 15 vs. an AutoMax processor).

Processor Type: Varied over time, often Intel x86-based microprocessors in later models.
Program Scan Time: A critical performance metric, indicating how quickly the unit can execute its program (e.g., typically in milliseconds per K-ladder statement). Faster scan times are crucial for high-speed applications.
Memory Capacity: Program memory size (e.g., kilobytes of ladder logic or words) and data memory.
I/O Capacity: The maximum number of input/output points the basis unit can directly manage or address across local and remote I/O networks.
Power Supply Requirements: The voltage required to power the basis unit (e.g., 5V DC from a dedicated power supply module in the rack).
Communication Interfaces: Number and type of serial ports (e.g., RS-232, RS-485), and potentially support for proprietary networks (like R-Net) or standard industrial Ethernet protocols via optional modules.
Operating Temperature: Designed for industrial environments, typically a wide range (e.g., 0°C to 60°C or broader).
Mounting: Primarily rack-mounted within a specific Reliance backplane.
Programming Language: Predominantly ladder diagram, though some advanced systems like AutoMax supported multi-language programming.

Product Advantages

Robustness and Reliability: Reliance Basis units were engineered for continuous operation in harsh industrial environments, ensuring high system uptime and durability. Their design prioritized resilience against electrical noise, temperature fluctuations, and vibration.
Distributed Control Capabilities: Systems like AutoMax were pioneers in distributed control, allowing processing power and I/O to be spread across a plant while maintaining coordinated operation, which significantly improved scalability and responsiveness for large applications.
Real-time Performance: Designed for deterministic operation, ensuring timely execution of control logic critical for machine safety and process consistency.
Flexible I/O Expansion: The modular architecture allowed users to customize the exact number and type of I/O points needed by simply adding appropriate I/O modules to the same or remote racks.
Advanced Features (for later models): High-end models offered features like multi-tasking, multi-processing, and advanced mathematical capabilities, making them suitable for complex control applications that were challenging for simpler PLCs.

Important Considerations

Legacy Status and Obsolescence: Reliance Electric as an independent PLC manufacturer has largely been absorbed by ABB/Baldor. Many of these "Basis units" are now considered legacy or obsolete products. Sourcing new components can be difficult, and technical support might be limited to specialized repair services.
Programming Environment: The programming software and hardware interfaces for these older systems may require older operating systems (e.g., DOS, early Windows versions) and specialized cabling, posing compatibility challenges with modern computing infrastructure.
Spare Parts: Due to obsolescence, maintaining a stock of spare parts or identifying reliable repair/replacement services is crucial for existing installations.
Migration Planning: For critical applications, consider a long-term migration strategy to modern PLC platforms, which offer enhanced features, connectivity, and support.
Security: Older systems often lack the cybersecurity features inherent in modern industrial control systems, which can be a significant concern for networked systems.
Documentation: Comprehensive original documentation (manuals, wiring diagrams) is essential for effective maintenance and troubleshooting.

Product Applications

Reliance Basis units were deployed across a vast array of industrial sectors due to their robust design and control capabilities.

Manufacturing and Assembly: Core control for production lines, robotic cells, automated assembly machines, and material handling systems (e.g., conveyors, pick-and-place).
Process Industries: Control of continuous and batch processes in industries such as chemical, pharmaceutical, food and beverage, and pulp and paper, managing pumps, valves, temperature, and flow.
Metals Industry: High-speed, precise control for rolling mills, coil processing lines, and furnace operations, where fast response and complex calculations are critical.
Tire and Rubber Manufacturing: Automation of tire building machines, rubber mixing, and curing processes.
Power Generation: Control of auxiliary systems in power plants, boiler control, and turbine sequencing.
Water and Wastewater Treatment: Automation of pumping stations, filtration processes, and chemical dosing.
Mining and Minerals: Control of crushing, grinding, and conveying equipment.
