30P6171 RELIANCE

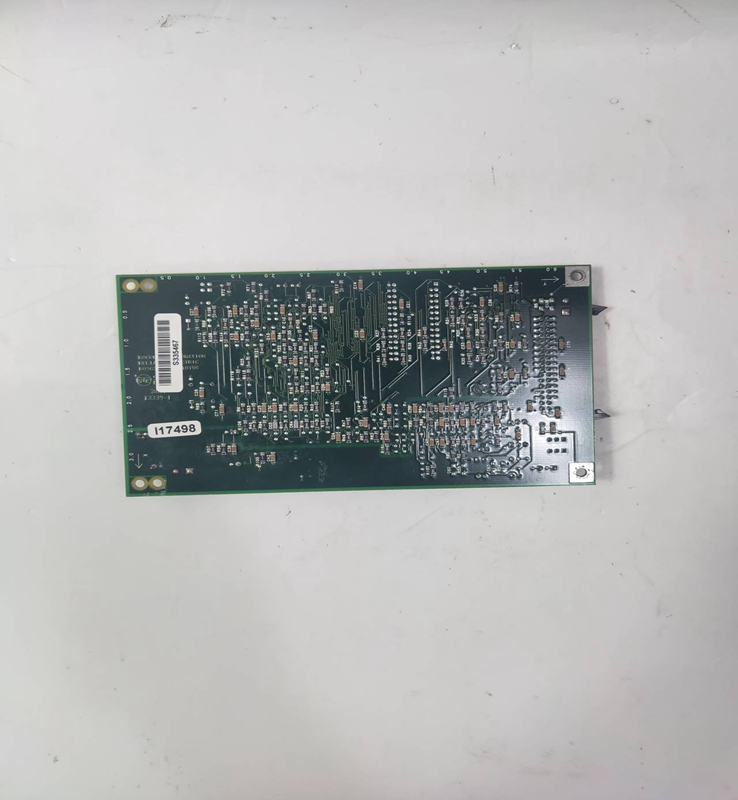

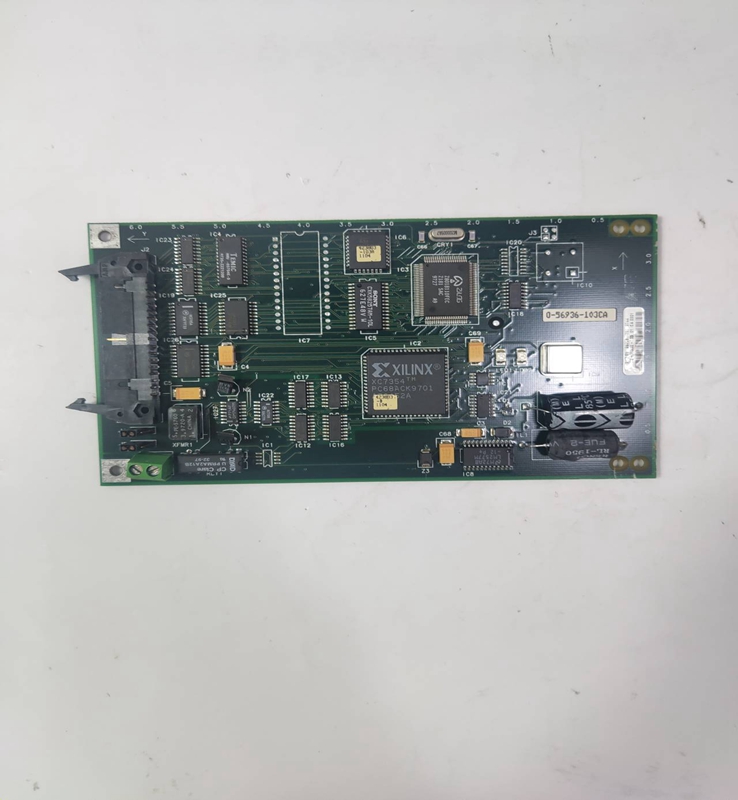

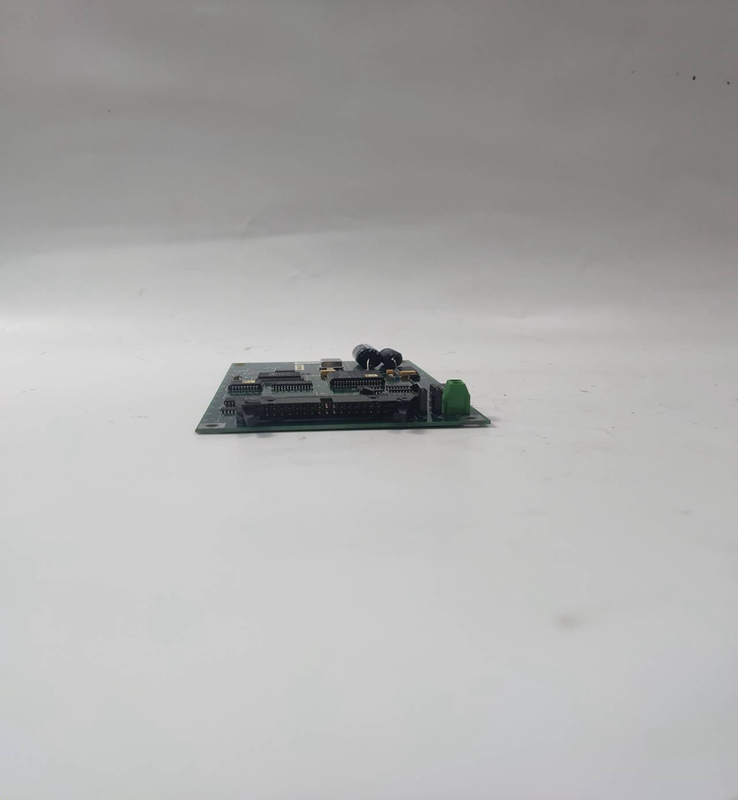

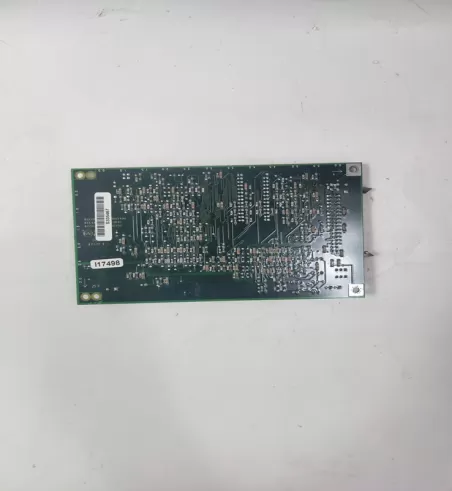

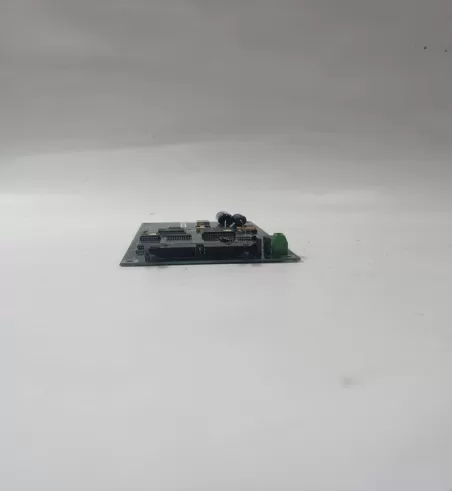

Reliance 30P6171 Output Module

Brand：RELIANCE Model number：30P6171

Country of origin: United States Product weight：0.55kg

HS code：9032899099

Product Details：

Product Dimensions：

Reliance Electric, a prominent name in industrial automation before its acquisition by Eaton, produced a range of output modules primarily for its AutoMate and AutoMax Programmable Logic Controller (PLC) systems. These modules were designed to convert logic signals from the PLC into control signals for various industrial devices.

Product Details

Functionality: Reliance Electric output modules served as the interface between the PLC's processing unit and the physical actuators in a system. They received digital or analog commands from the PLC and then switched power to or provided a control signal for devices like motors, solenoids, valves, lights, and other industrial loads.
Types:

Relay Output Modules: Utilized electromechanical relays to provide isolated dry contacts, allowing them to switch various AC or DC voltages and currents.
Solid-State Output Modules (Transistor or Triac): Used solid-state components for faster switching speeds, longer life (no moving parts), and often higher switching frequencies. Transistor outputs were typically for DC loads, while Triac outputs were for AC loads.
Digital Output Modules (Discrete): These modules provided on/off control for devices. They could be:
Analog Output Modules: These modules converted a digital value from the PLC into a continuous analog signal (e.g., 0-10V DC, 4-20mA DC) to proportionally control devices like variable frequency drives (VFDs), proportional valves, or servo amplifiers.

Key Features (Typical):

Modular design for insertion into I/O racks (e.g., AutoMate I/O rails).
LED indicators for output status.
Electrical isolation between the logic circuit and the field wiring for protection.
Overcurrent protection (fuses or electronic).
Robust construction suitable for industrial environments.

Product Parameters (Examples based on common legacy modules)

Voltage Ratings:

Digital Outputs: Common voltage ratings included 24V DC, 115V AC, 240V AC.
Analog Outputs: Typically 0-10V DC, +/-10V DC, 0-20mA, or 4-20mA.

Current Ratings:

Digital Outputs: Ranged from milliamps for low-power loads to several amps per channel for direct control of small motors or solenoids.
Analog Outputs: Typically 10mA or 20mA maximum.

Number of Channels:

Commonly 2, 4, 8, 16, or 32 output channels per module.

Isolation:

Often featured optical isolation or relay isolation, providing electrical separation between the control logic and the field devices.
Isolation voltages varied, e.g., 1500V RMS or higher.

Response Time:

Digital Outputs: Milliseconds for relay outputs, microseconds for solid-state outputs.
Analog Outputs: Conversion times in microseconds.

Power Dissipation:

Watts per channel, indicating the heat generated by the module.

Operating Temperature:

Typical industrial range: 0°C to 60°C (32°F to 140°F).

Compatibility:

Designed for specific Reliance Electric PLC platforms, such as AutoMate 15, 20, 30, 35, 40, and AutoMax DCS-5000 series.

Product Advantages (Historically)

Reliability: Reliance Electric products were known for their robust design and long-term reliability in harsh industrial environments.
Integration: Designed for seamless integration within the AutoMate/AutoMax PLC systems, ensuring compatibility and streamlined operation.
Versatility: Offered a variety of output types (digital, analog, relay, solid-state) to cater to diverse application requirements.
Isolation: The inclusion of isolation features provided protection for the control system from electrical noise and faults in the field wiring.
Ease of Maintenance: Modular design allowed for relatively easy replacement of faulty modules, reducing downtime.

Important Considerations (Especially for Legacy Systems)

Obsolete Status: New Reliance Electric-branded output modules are generally not produced. Sourcing new spares can be challenging; reliance is often on surplus markets or third-party repair services.
Compatibility: Ensure precise model number and series compatibility with your existing Reliance Electric PLC system. Slight variations in part numbers could indicate different functionality or compatibility.
Documentation: Access to original manuals (e.g., J-series manuals) is crucial for proper wiring, configuration, and troubleshooting. These may be harder to find.
Power Supply: Verify the power supply requirements for the module and ensure your system provides stable and sufficient power.
Load Characteristics: Understand the exact load (voltage, current, inductive/resistive) the module will be switching to ensure it's within the module's ratings. Using a solid-state output for highly inductive loads without proper snubber circuits can lead to premature failure.
Safety: Always follow lockout/tagout procedures and electrical safety guidelines when working with these modules and their connected loads.

Product Applications (Typical Historical Uses)

Discrete Machine Control:

Starting/stopping motors.
Activating solenoids for pneumatic/hydraulic valves.
Controlling indicator lights and alarms.
Operating contactors and motor starters.

Process Control:

Regulating motor speeds using analog outputs to VFDs.
Controlling proportional valves for flow or pressure regulation.
Positioning servo axes in motion control applications.

Material Handling:

Controlling conveyor belts, sorters, and pick-and-place mechanisms.

Factory Automation:

Automating assembly lines, packaging machines, and testing equipment.

Power Generation and Distribution:

Controlling breakers, switches, and other electrical apparatus (especially in older installations).
