0-55325-77A RELIANCE

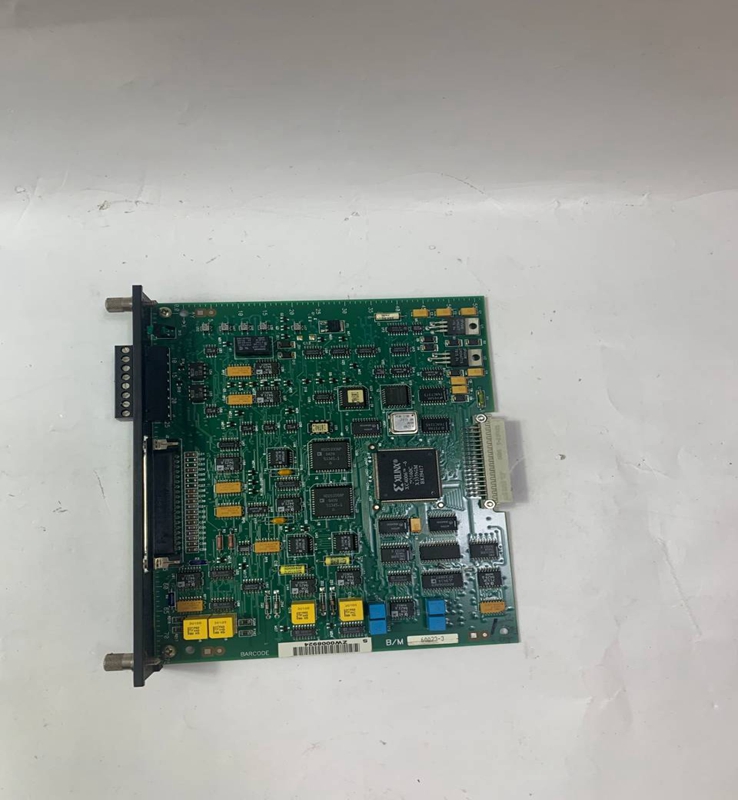

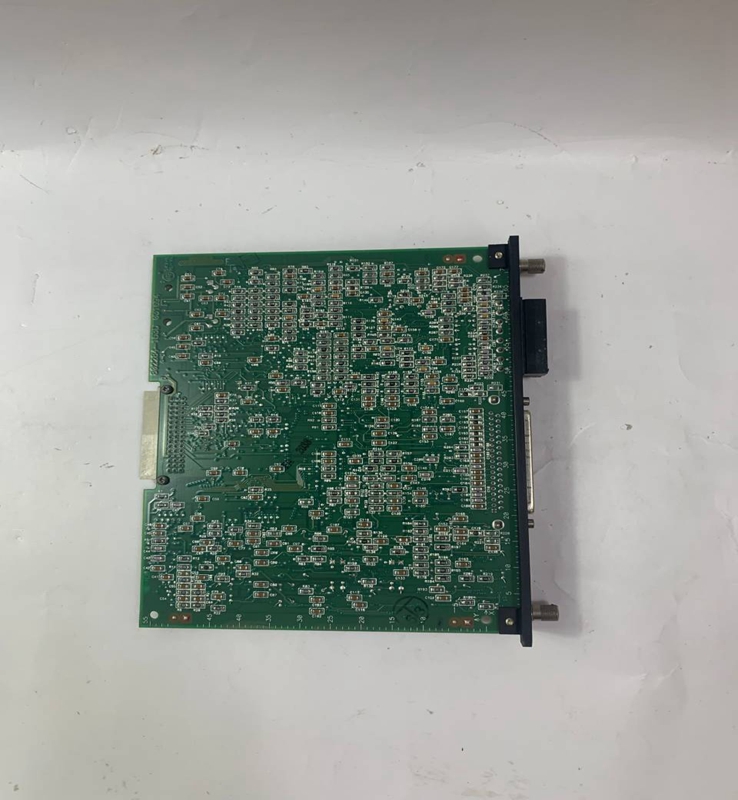

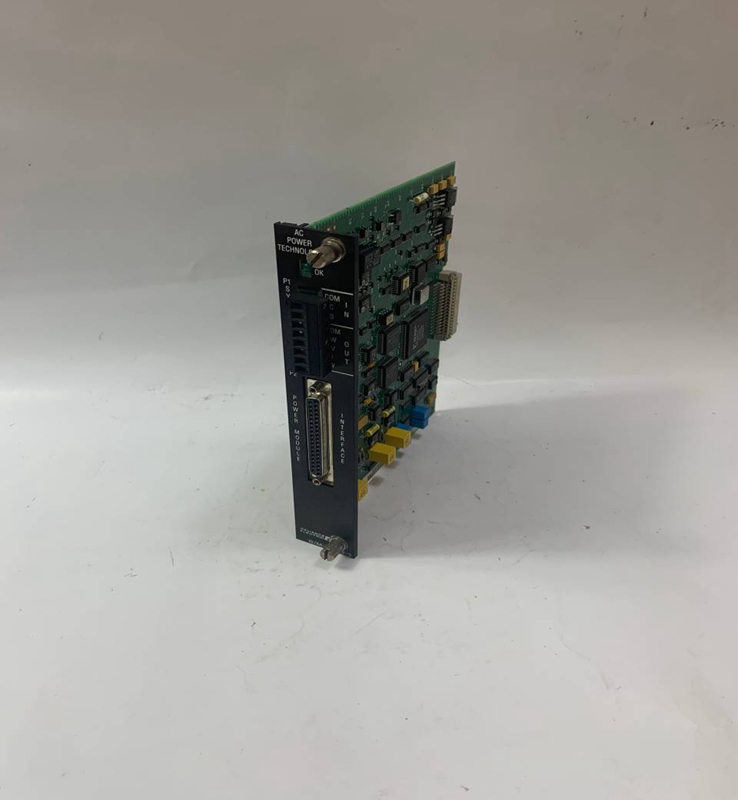

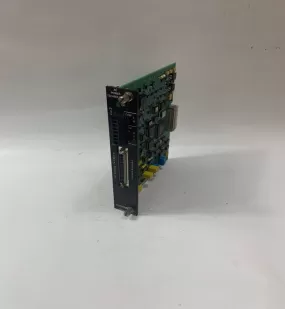

Reliance 0-55325-77A Multi-Function Processor Module

Brand：RELIANCE Model number：0-55325-77A

Country of origin: United States Product weight：0.55kg

HS code：9032899099

Product Details：

Product Dimensions：

A Reliance Multi-Function Processor Module, often found in their legacy AutoMax or Automate series PLCs (now part of ABB/Baldor Electric's heritage), is the central processing unit or a specialized co-processor within an industrial control system. Unlike a standard CPU that handles general logic, a multi-function processor module is designed to manage specific, complex tasks or high-performance operations, often integrating multiple functionalities like motion control, specialized communication, or advanced diagnostics within a single module. These modules enhance the overall capabilities of the control system by offloading tasks from the main CPU, improving system performance, and enabling more sophisticated automation solutions.

Product Details

Core Functionality: These modules execute dedicated application programs or handle specific real-time processes that require high computational power or specialized algorithms. They can operate independently or in conjunction with a main PLC processor, sharing data and control signals.
Integrated Capabilities: A "multi-function" aspect means it combines several specialized tasks into one module. This could include:

Motion Control: Executing complex motion profiles for servo or stepper motors, managing interpolation, and coordinating multiple axes.
High-Speed Processing: Handling rapid data acquisition, complex calculations, or fast control loops that a standard PLC CPU might struggle with.
Advanced Communications: Managing specialized network protocols or interfacing with diverse intelligent devices beyond standard industrial networks.
Dedicated Control Loops: Running specific PID loops or other control algorithms with higher precision and speed.
Data Logging and Analysis: Processing and storing large volumes of data for trend analysis or historical archiving.

Architecture: Typically, these modules are designed to be inserted into a backplane or rack of a PLC system (like the AutoMax rack), allowing them to communicate with other modules (I/O, communication modules, main CPU) via a high-speed backplane bus. They often have their own onboard memory for programs and data.

Product Parameters

Processing Power: Measured in terms of CPU speed (e.g., MHz), instruction execution speed, or capability to handle complex algorithms.
Memory: Onboard RAM and flash memory for program storage, data buffering, and operating system.
Communication Ports: Dedicated ports for specific networks (e.g., DCS-Net, A-B Remote I/O, Ethernet, serial ports like RS-232/485) to interface with other processors, I/O, or HMI/SCADA systems.
Real-time Capabilities: Specific parameters related to deterministic execution, task scheduling priorities, and interrupt handling.
I/O Interfacing: How it connects to and utilizes I/O modules, whether directly or through a remote I/O network.
Operating System: Often runs a proprietary real-time operating system optimized for industrial control.
Power Consumption: The electrical power required for the module's operation.
Operating Temperature: Standard industrial ranges, typically -25°C to 70°C.

Product Advantages

Enhanced Performance: Offloads demanding tasks from the main PLC processor, allowing the overall control system to handle more complex applications and achieve faster cycle times.
Specialized Control: Provides dedicated processing power and features for specific high-performance or complex control tasks like multi-axis motion control, which general-purpose PLCs might not handle as effectively.
Modularity and Scalability: Allows users to add specialized functionality only when needed, making systems scalable and cost-effective for diverse applications.
Distributed Control: Facilitates the distribution of control functions across multiple units, improving system responsiveness and fault tolerance.
Simplified Programming for Specific Tasks: Often provides specialized function blocks or libraries that simplify the programming of complex tasks like motion sequences.
Improved Diagnostics: Built-in diagnostics and status LEDs aid in troubleshooting and maintaining system reliability.
Future-Proofing: Loadable runtime bases simplify future enhancements and upgrades to the system's operating capabilities without requiring a complete hardware overhaul.

Important Considerations

System Compatibility: Ensure full compatibility with the existing PLC/DCS platform, backplane, and communication protocols.
Programming Environment: Requires specific software tools and programming knowledge to configure, program, and integrate the multi-function processor.
Network Integration: Understand how the module communicates with other system components and external devices, including potential bandwidth requirements.
Heat Dissipation: Due to increased processing, ensure adequate ventilation within the control cabinet to prevent overheating.
Obsolescence: As Reliance Electric products have transitioned under new ownership (ABB/Baldor), consider the long-term availability of specific legacy modules and support. Plan for potential upgrades to newer platforms if critical.
Firmware Management: Understand the procedures for updating firmware and managing module configurations.

Product Applications

Reliance Multi-Function Processor Modules are typically used in applications requiring advanced control beyond the capabilities of a standard PLC CPU:

Complex Machine Control: Robotics, CNC machinery, packaging machines with coordinated motion.
High-Speed Packaging and Bottling Lines: Requiring precise synchronization and high throughput.
Automated Material Handling: Conveyor systems with sorting, tracking, and complex routing.
Printing and Converting: Applications requiring precise web tension control and registration.
Textile Machinery: Managing intricate patterns and synchronized movements.
Test and Measurement Equipment: Requiring fast data acquisition and real-time analysis.
Specialized Process Control: Where high-speed calculations or specific algorithms are critical for process optimization.
Manufacturing Cells: Coordinating multiple machines and processes within a defined work area.
