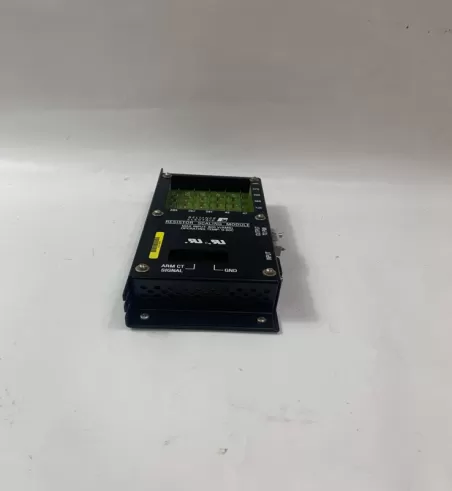

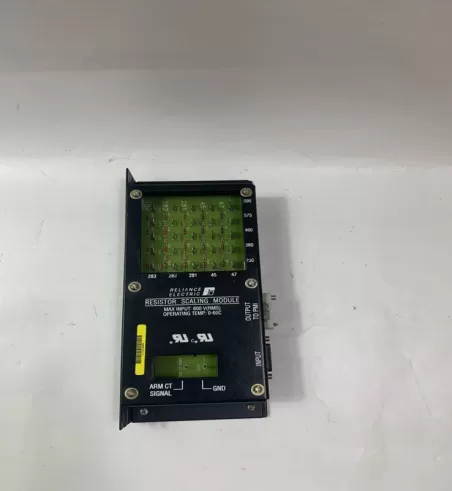

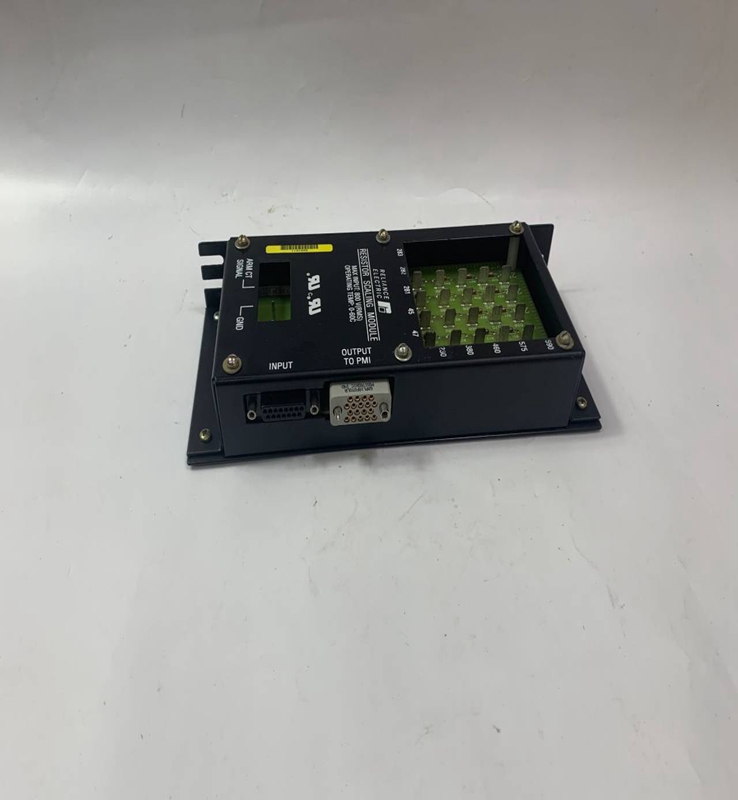

0-52840-594 RELIANCE

Reliance 0-52840-594 Filter Modules

Brand：RELIANCE Model number：0-52840-594

Country of origin: United States Product weight：0.55kg

HS code：9032899099

Product Details：

Product Dimensions：

An electrical filter module in the context of industrial automation, such as those that would have been associated with Reliance Electric PLCs or drive systems, is designed to enhance signal integrity and power quality. These modules mitigate electrical noise, interference (EMI/RFI), and harmonics that can disrupt sensitive electronic equipment, ensuring reliable operation of control systems. They often come as dedicated modules for specific applications like analog signal conditioning or power line filtering.

Functionality: These modules work by selectively attenuating unwanted frequencies while allowing desired signals or power to pass through. They can employ various filtering techniques:

Low-Pass Filters: Allow low-frequency signals (e.g., DC or slowly changing analog signals) to pass while blocking high-frequency noise.
High-Pass Filters: Allow high-frequency signals to pass while blocking low-frequency noise.
Band-Pass Filters: Allow a specific range of frequencies to pass.
Noise Filters/Suppressors: Designed to reduce electromagnetic interference (EMI) and radio-frequency interference (RFI) that can corrupt data or cause malfunctions.
Harmonic Filters: Used in power systems to reduce distortions caused by non-linear loads (like variable frequency drives) that draw non-sinusoidal currents.

Key Components: Typically include passive components such as inductors (chokes), capacitors, and resistors, often arranged in configurations like RC, RL, LC, or more complex active filter designs for specific purposes.
Integration: Often integrated as a component on an input/output module (e.g., a programmable filter on an analog input module) or as a standalone module inserted into a control system rack or mounted in an electrical cabinet.

Product Parameters

Specific parameters depend heavily on the intended application (e.g., analog signal filtering vs. power line filtering), but common ones include:

Filter Type: Low-pass, high-pass, band-pass, common-mode, differential-mode, harmonic filter.
Cut-off Frequency/Bandwidth: The frequency at which the filter begins to attenuate signals (for low-pass/high-pass) or the range of frequencies it passes (for band-pass).
Attenuation: The degree to which unwanted frequencies are reduced, typically measured in decibels (dB).
Voltage Rating: Maximum voltage the filter can handle.
Current Rating: Maximum current (for power line filters).
Insertion Loss: The signal or power loss introduced by the filter at desired frequencies.
Input/Output Impedance: Important for matching with the source and load.
Channels (for signal filters): Number of signal paths the module can filter simultaneously.
Dimensions and Mounting: Physical size and how it integrates into a panel or system.
Operating Temperature: Standard industrial ranges.

Product Advantages

Signal Integrity Improvement: Reduces electrical noise and interference, leading to more accurate data acquisition and reliable control signals.
Enhanced System Stability: Prevents erratic behavior, false triggering, and malfunctions caused by electrical disturbances.
Equipment Protection: Shields sensitive electronic components from voltage spikes, transients, and harmonics, extending their lifespan.
Compliance: Helps systems meet electromagnetic compatibility (EMC) standards and regulatory requirements.
Reduced Downtime: By mitigating noise-related issues, filter modules contribute to more stable operations and less troubleshooting.
Improved Process Control: For analog signals, a clean signal ensures precise control and measurement.

Important Considerations

Application-Specific Selection: The type and characteristics of the filter module must precisely match the nature of the noise/interference and the signal/power being filtered. A generic filter may not be effective.
Impedance Matching: Proper impedance matching between the filter, the source, and the load is critical for optimal performance and to avoid reflections.
Placement: The physical location of the filter module within the system (e.g., close to the noise source or sensitive equipment) is crucial for effectiveness.
Grounding: Correct grounding practices are essential for filter modules to function as intended and to safely dissipate noise.
Power Dissipation: Some filter components can dissipate heat; ensure adequate ventilation.
Legacy Support: As "Reliance Electric" products are legacy, availability of specific filter modules might be limited. Consider current equivalents from manufacturers like ABB or Baldor.
Inductive Loads: For filters associated with motor drives, consider the harmonic content generated by VFDs and select appropriate harmonic filters to prevent grid distortion.

Product Applications

Reliance (or similar industrial) electrical filter modules are used across various applications where electrical noise or signal integrity is a concern:

Industrial Automation Systems:

PLC/DCS Inputs/Outputs: Filtering noisy analog signals from sensors (e.g., thermocouples, pressure transducers) or output signals to actuators.
Communication Networks: Improving data integrity on industrial networks (e.g., RS-485, Ethernet) by reducing noise.

Motor Control Systems:

Variable Frequency Drives (VFDs): Mitigating harmonics generated by VFDs back onto the power line (line reactors, harmonic filters) and reducing motor noise (output filters).
DC Drives: Filtering DC bus ripple or motor armature current.

Power Distribution:

Reducing electrical noise on control power supplies.
Suppressing transients caused by switching inductive loads.

Measurement and Instrumentation:

Ensuring accuracy of sensitive measuring equipment by filtering power and signal lines.

Sensitive Electronic Equipment:

Protecting computers, HMIs, and other control room equipment from electrical interference.
