0-52838 RELIANCE

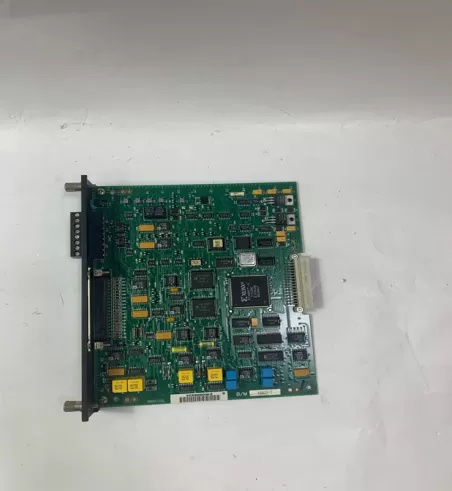

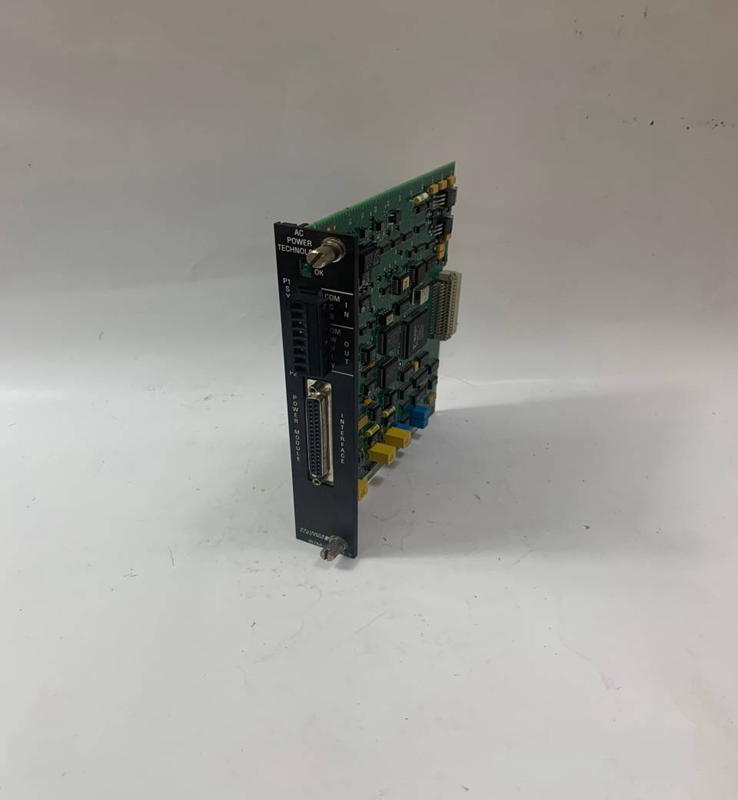

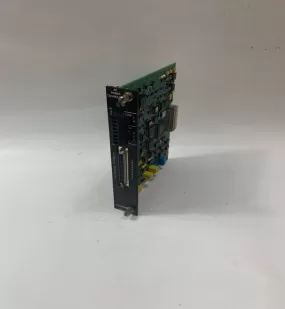

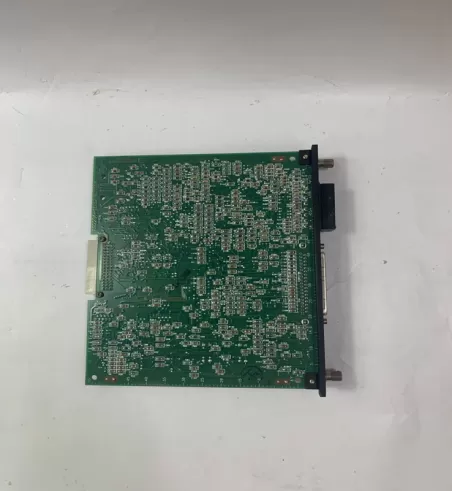

Reliance 0-52838 Servo Controller

Brand：RELIANCE Model number：0-52838

Country of origin: United States Product weight：0.55kg

HS code：9032899099

Product Details：

Product Dimensions：

Reliance servo controllers are sophisticated electronic drives designed to precisely control the position, velocity, and torque of servo motors. They operate as part of a closed-loop system, using feedback from encoders or resolvers on the servo motor to ensure accurate movement.

Functionality:

They provide the necessary power and control signals to the servo motor.
They interpret feedback from the motor to adjust output, ensuring the motor follows the commanded motion profile with high accuracy and repeatability.
Common control modes include position control, velocity control, and torque control, which can be selected or combined based on the application's needs.

Architecture:

Many Reliance servo controllers feature advanced control algorithms and powerful processors (like DSPs) to handle complex motion profiles.
They often incorporate digital control for enhanced precision and performance.

Compatibility:

Designed to work seamlessly with Reliance (now Baldor-Reliance) servo motors, which typically feature brushless sinusoidal commutation and integrated optical encoders.

Product Parameters

While specific parameters vary significantly by model (e.g., HR2000, UAZ3222, PSC7000 series), here are common parameters you'd find:

Input Voltage: Typically three-phase, such as 208/230 VAC or 380-460 VAC, compatible with 50/60 Hz frequencies.
Power Output (HP/kW): Ranging from fractional horsepower to much larger power ratings, suitable for various motor sizes.
Continuous Current Output: The maximum continuous current the drive can supply to the motor.
Peak Current Output: The maximum current available for short durations, essential for acceleration and high-torque demands.
Communication Interfaces: Common protocols include Ethernet, SERCOS, CANopen, RS-485, and others, allowing integration with PLCs, PACs, and other control systems.
Feedback Device Support: Compatibility with various feedback devices like incremental optical encoders, resolvers, and possibly high-resolution encoders for advanced systems.
Control Modes: Speed, position, and torque regulation, often selectable via software or dip switches.
Enclosure Type: Often chassis mount for cabinet integration, or NEMA rated for specific environmental protection.
Operating Environment: Specified temperature ranges (e.g., industrial temperature ranges) and environmental protection ratings (e.g., IP55, IP65).
Certifications: UL, CE, and other relevant industrial standards.

Product Advantages

Precision Motion Control: Reliance servo controllers excel at delivering highly accurate and repeatable motion, crucial for demanding industrial tasks.
High Performance: Advanced control algorithms and fast processors enable dynamic response and efficient operation, even with complex motion profiles.
Robustness: Built to withstand harsh industrial environments, ensuring durability and long-term reliability.
Versatility: Compatible with various servo motors and adaptable to a wide range of applications through flexible control modes and programming options.
Advanced Diagnostics: Many models include comprehensive diagnostic tools to facilitate quick troubleshooting, reducing downtime.
Energy Efficiency: Optimized power consumption helps reduce operating costs and environmental impact.
Integrated Solutions: Designed to integrate seamlessly within larger automation systems.

Important Considerations

Application Matching: It's crucial to select the correct servo controller and motor combination that precisely matches the application's torque, speed, and positional accuracy requirements. Oversizing or undersizing can lead to inefficiencies or performance issues.
Environmental Factors: Ensure the installation environment meets the controller's temperature, humidity, and vibration specifications. Avoid explosive or corrosive atmospheres unless the unit is specifically rated for them.
Proper Wiring and Grounding: Incorrect wiring, insufficient grounding, or exceeding maximum voltage ratings can lead to malfunctions, damage, or safety hazards. Always follow manufacturer's guidelines strictly.
Feedback Device Integrity: Servo systems rely heavily on accurate feedback. Damage to encoders or resolvers, or improper wiring of these devices, can cause positioning errors or loss of control.
Tuning: Servo controllers require proper tuning (adjusting PID or other control loop parameters) to achieve optimal performance for a specific mechanical system. Improper tuning can lead to instability, oscillations, or sluggish response.
Safety Features: Modern servo controllers often include safety features like Safe Torque Off (STO). For critical safety functions like E-stops, always implement hardwired safety circuits with safety relays, as relying solely on the drive's electronics for power cutoff might not meet safety standards.
Thermal Management: Ensure adequate ventilation or cooling for the servo controller, especially in enclosed cabinets, to prevent overheating and premature failure.

Product Applications

Reliance servo controllers are widely used in industries requiring precise and dynamic motion control.

Industrial Automation:

CNC Machining: For precise control of machine tool axes.
Robotics: Providing accurate movement for robotic arms and other automated systems.
Packaging Machinery: For high-speed, synchronized movements in bottling, labeling, and filling lines.
Material Handling: Controlling conveyor belts, pick-and-place systems, and automated storage and retrieval systems.
Printing and Converting: Ensuring precise registration and tension control in web handling applications.

Medical Devices:

Surgical robots and diagnostic equipment requiring precise movements.

Aerospace and Defense:

For critical systems demanding high reliability and precision in control.

Scientific Research:

Precision stages, telescope positioning, and laboratory automation equipment.
