0-51865-2 RELIANCE

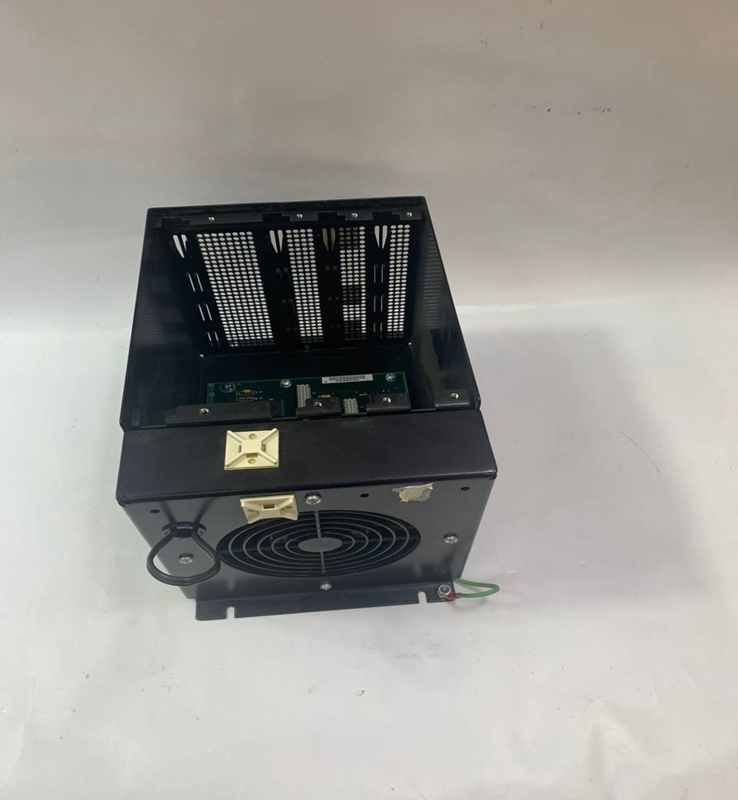

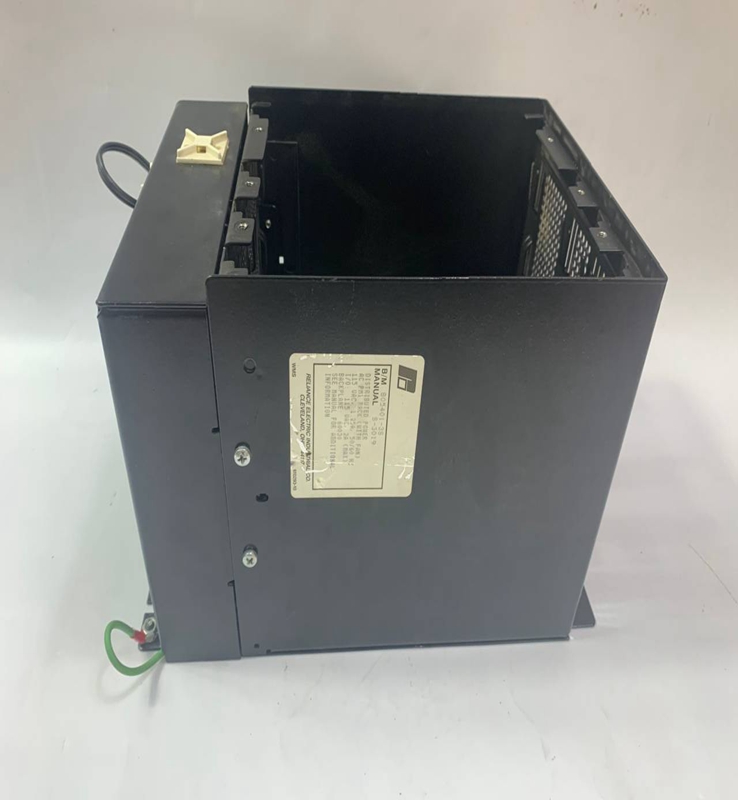

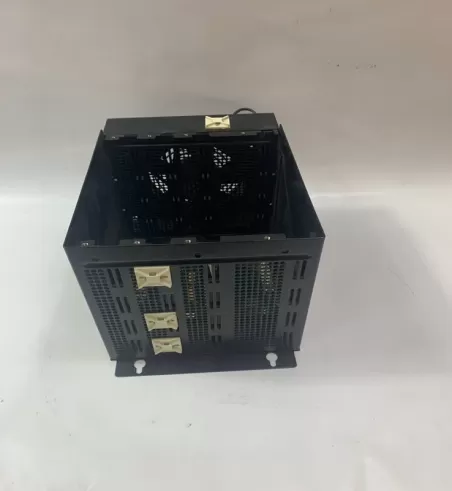

Reliance 0-51865-2 Servo Controller

Brand：RELIANCE Model number：0-51865-2

Country of origin: United States Product weight：0.55kg

HS code：9032899099

Product Details：

Product Dimensions：

Reliance Electric communication modules were designed to facilitate data exchange between their control systems (such as AutoMax PLCs and DCS systems) and other devices, both within the same control architecture and with external systems. These modules were crucial for building integrated and distributed automation solutions.

Product Details

Purpose: Reliance Electric communication modules served as the gateway for control data, status information, and diagnostic messages to flow between various components of an industrial automation system. They enabled PLCs, HMI (Human Machine Interface) systems, drives, and other intelligent devices to share information.
Common Protocols Supported:

Proprietary Networks: Reliance Electric often had its own proprietary communication networks, such as AutoMax DCSNet or R-Net, for high-speed, reliable communication between their controllers. Modules would be dedicated to these networks.
Standard Industrial Protocols: Over time, modules supporting industry-standard protocols like Modbus (RTU, ASCII), RS-232C, RS-485, and later, more advanced protocols like DeviceNet or Ethernet/IP (especially as they transitioned to Rockwell Automation) became available to enable broader interoperability.

Functionality:

Data Exchange: Sending and receiving discrete and analog data, control commands, and status bits.
Peer-to-Peer Communication: Allowing multiple controllers on the same network to share information directly.
Master/Slave Operation: Some modules would act as masters, polling data from slave devices, while others would function as slaves, responding to requests.
Diagnostics: Often included on-board diagnostics (e.g., LED indicators for fault codes, RS-232C ports for internal diagnostics) to help troubleshoot network and module issues.
Configuration: Configurable via software or sometimes through physical switches (e.g., thumbwheel switches for drop numbers).

Product Parameters (Typical Examples - These varied significantly by specific module type)

Communication Speed (Baud Rate): Could range from lower serial speeds (e.g., 9600 baud) up to higher proprietary network speeds (e.g., 845K baud for AutoMax DCSNet).
Network Length: Maximum cable length supported by the network (e.g., up to 3000 ft for some AutoMax networks).
Number of Nodes/Drops: The maximum number of devices or controllers that could be connected to a single network segment via the module.
Power Consumption: Typically low DC voltage (e.g., 24V DC, 0.5A).
Operating Temperature: Industrial range (e.g., -20°C to 70°C).
Physical Connectors: Varied depending on the protocol (e.g., 9-pin D-sub for RS-232C/RS-485, screw terminals, proprietary connectors).
Mounting: Designed to fit into specific Reliance Electric racks or backplanes (e.g., AutoMax storage racks).
Indicators: LED indicators for power, network status (OK/Fault), and communication activity.
Memory: Internal memory for buffering data or storing configuration.

Product Advantages

Integration with Reliance Systems: Designed for seamless and high-performance communication within Reliance Electric's proprietary control architectures, ensuring optimal data flow between their PLCs, drives, and other components.
Robustness: Built to withstand harsh industrial environments, offering reliability and long-term operation.
Dedicated Functionality: Specific modules were tailored for specific network types, optimizing performance for that particular protocol.
Diagnostic Capabilities: On-board diagnostics simplified troubleshooting of network connectivity and module health.
Modularity: As part of a modular control system, these modules allowed for flexible expansion and adaptation of communication capabilities.

Important Considerations

Legacy Status: Many Reliance Electric communication modules are considered legacy or obsolete by today's standards. While they remain functional in existing installations, finding new parts can be challenging, and support might be limited.
Proprietary Protocols: Reliance Electric's proprietary networks, while efficient, required specific knowledge and compatible modules. Migrating these systems to modern open protocols often requires gateway solutions.
Interoperability: While some modules supported standard protocols, their primary strength was often within the Reliance Electric ecosystem. Interfacing with newer, different vendor equipment might require careful planning.
Software Compatibility: Proper configuration requires specific Reliance Electric programming software tools, which might also be older versions.
Documentation: Accessing original documentation can be crucial for troubleshooting and maintenance of legacy modules.
Upgrade Paths: For modernizing systems, consider Rockwell Automation's current communication modules (e.g., from the Allen-Bradley brand), which offer robust features, wider protocol support, and active development.
