0-51383-3 RELIANCE

Reliance 0-51383-3 controller module

Brand：RELIANCE Model number：0-51383-3

Country of origin: United States Product weight：0.55kg

HS code：9032899099

Product Details：

Product Dimensions：

A Reliance Controller Module (or processor module) is the "brain" of an automation system. It's responsible for executing the user program (often written in ladder logic, but sometimes in other languages like BASIC or function block diagrams), processing input signals from field devices, and generating output commands to actuators. It manages data, handles communications, and ensures the coordinated operation of an industrial process.

Functionality:
Program Execution: Runs the control program repeatedly in a scan cycle, reading inputs, executing logic, and updating outputs.
Data Processing: Performs mathematical calculations, data manipulation, and logical operations.

Communication Management: Handles communication with I/O modules, other controllers, HMI (Human-Machine Interface) systems, SCADA (Supervisory Control and Data Acquisition) systems, and enterprise networks.
Memory Management: Stores the control program, data tables, and diagnostic information.
Diagnostics: Provides internal diagnostics to monitor its own health and the status of the I/O system.

Types (Historically):

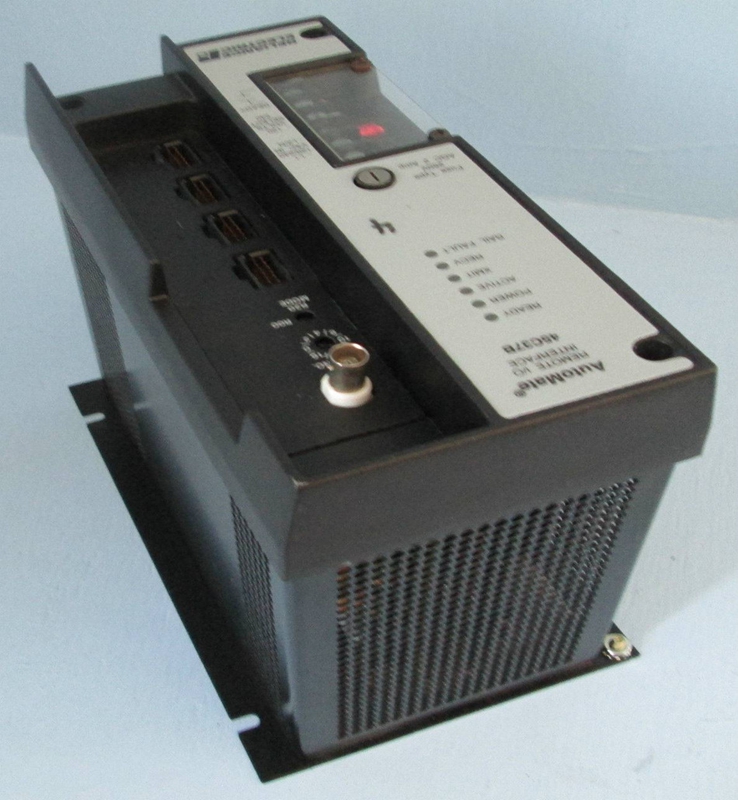

Reliance Electric produced various PLC lines, such as the AutoMate series (e.g., AutoMate 15, AutoMate 20) and the more advanced AutoMax Distributed Control System (DCS). These systems featured different controller modules with varying levels of processing power, memory, and communication capabilities.
Later, their product lines integrated with drives and servo controllers, indicating controllers designed for specific motion control tasks.

Key Features:

Program Memory: Non-volatile memory to store the user program.
Data Registers/Coils: Internal memory for storing variables and control bits.
Processor Speed: Measured by scan time or execution speed per K of ladder elements.
Communication Ports: Serial (RS-232, RS-485), Ethernet, or proprietary network ports for system integration.
Modular Design: Typically slots into a rack or chassis with a power supply and I/O modules.
Real-time Clock: For time-stamping events.

Product Parameters

Parameters vary significantly by the specific controller model. Historically, for modules like the AutoMate 15 or AutoMate 20, parameters included:

Memory Size:

AutoMate 15: Often 1K x 16 non-volatile memory.
AutoMate 20: Often 2K x 16 non-volatile memory.

I/O Capacity:

AutoMate 15: Up to 64 Digital I/O.
AutoMate 20: Up to 256 Digital I/O or 64 Analog I/O (or combinations).
AutoMax: Designed for much larger distributed I/O counts.

Execution Speed:

AutoMate 15: Around 4 milliseconds per K Ladder Element.
AutoMate 20: Around 10 milliseconds per K Ladder Element.

Communication:

Host Computer Interface Capability (e.g., 1200/9600 Baud for older serial interfaces).
R-NET capability for some AutoMate 20 versions.
AutoMax utilized its own distributed control network.

Power Supply: Controllers would require a specific power supply module, typically 24V DC or 120/240V AC.
Programming Language: Primarily enhanced ladder diagram language with instruction blocks. Some AutoMax processors could also run BASIC and control block programs.
Operating Temperature: Standard industrial ranges.

Product Advantages

Reliability: Reliance controllers were designed for robust and dependable operation in industrial environments, ensuring consistent process control.
Distributed Control (AutoMax): The AutoMax system offered true distributed control capabilities, allowing for more flexible and scalable architectures, reducing wiring and improving system response in large applications.
Programming Flexibility: While primarily ladder logic, some controllers offered other languages (like BASIC for AutoMax), providing more powerful programming options for complex tasks.
Modularity: The modular design allowed users to select the right amount of processing power and I/O for their specific application, and easily expand or replace components.
Integration: Designed to integrate with Reliance Electric's drives (like GV3000, FlexPak) and other automation components.
Legacy Support (through distributors): Although the product lines have changed hands, many distributors and service providers maintain expertise and inventory for older Reliance controllers, offering a degree of continued support for installed bases.

Important Considerations

Obsolescence: Many original Reliance Electric PLC lines (like AutoMate and AutoMax) have been discontinued by their current manufacturers (Rockwell Automation in some cases, with Baldor/ABB managing others). This means spare parts can be challenging to find, and expert support may be limited to specialized third-party providers.
Programming Software: Older controllers require specific legacy programming software, which may not be compatible with modern operating systems without emulation or virtual machines.
Migration Planning: For critical applications, consider a migration strategy to a modern PLC/PAC platform from current manufacturers to ensure long-term support and availability.
Interfacing: Be aware of the specific communication protocols and physical interfaces required for the controller to communicate with other devices and systems.
Environmental Conditions: Ensure the controller is operated within its specified temperature, humidity, and vibration limits to maintain reliability.
Power Quality: Provide a stable and clean power supply to the controller to prevent malfunctions.

Product Applications

Historically, Reliance controller modules found widespread use across various industrial sectors:

Discrete Manufacturing:

Machine control for assembly lines, packaging machinery, and material handling systems.
Automated testing and inspection stations.

Process Industries:

Control of batch processes in food and beverage, pharmaceuticals, and chemicals.
Control of continuous processes like water treatment or pulp and paper.

Energy and Utilities:

Power generation plant control (e.g., auxiliary systems).
Control in substations and distribution networks.

Motion Control:

Integrated control with Reliance's servo drives and variable speed drives for precise motor control in applications like printing, converting, and robotics.

Building Automation:

HVAC system control.
Building energy management.
