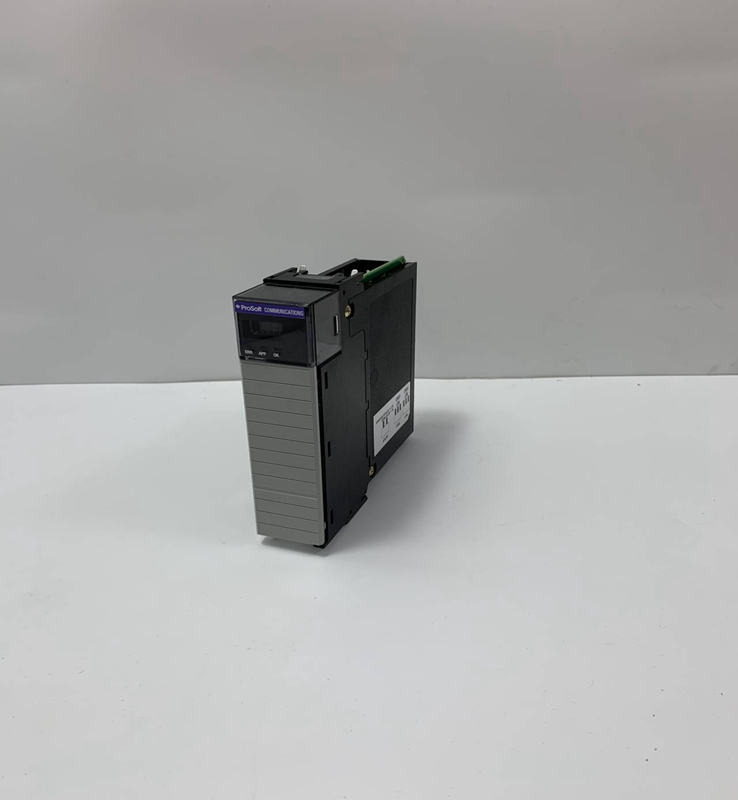

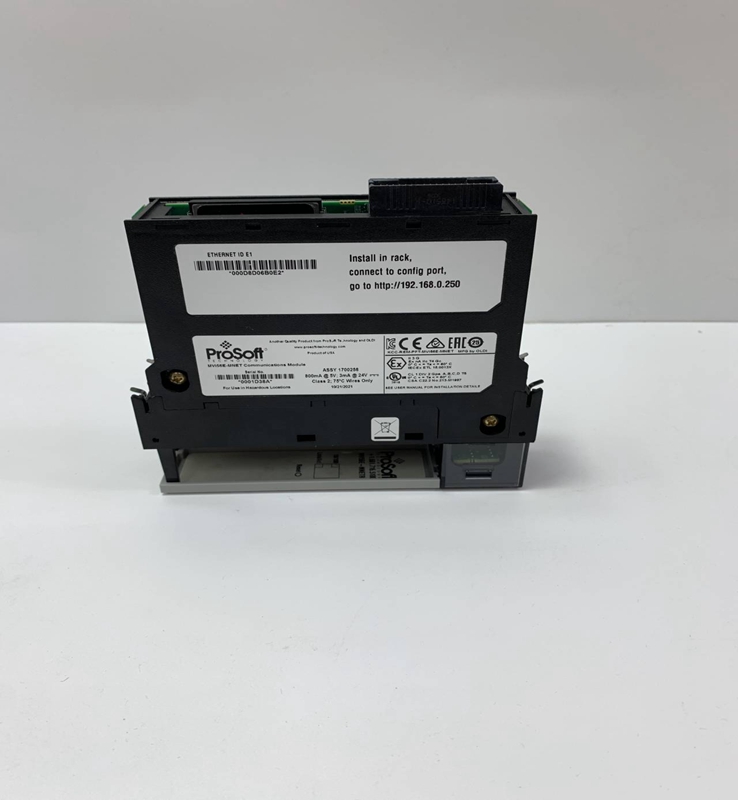

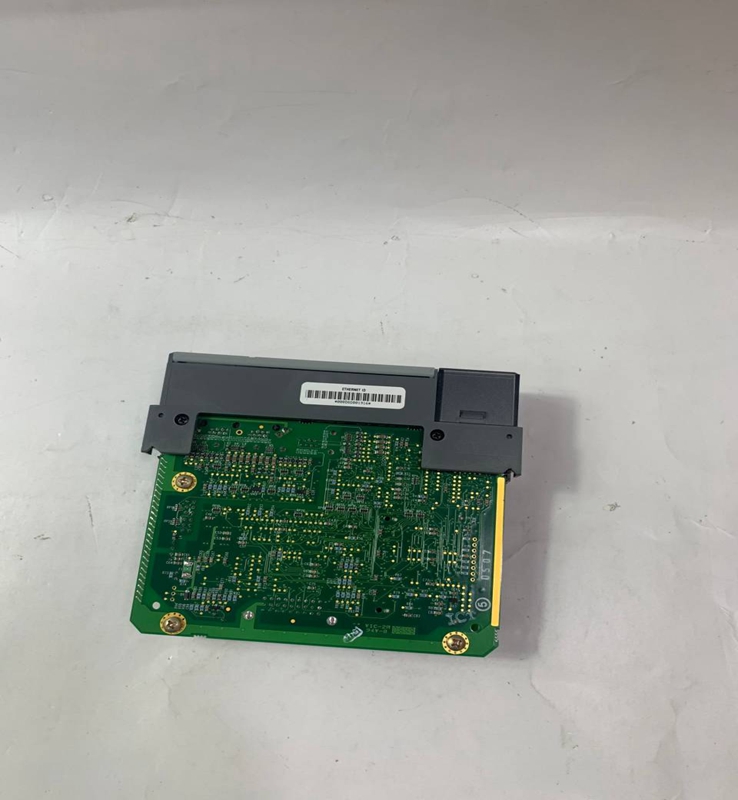

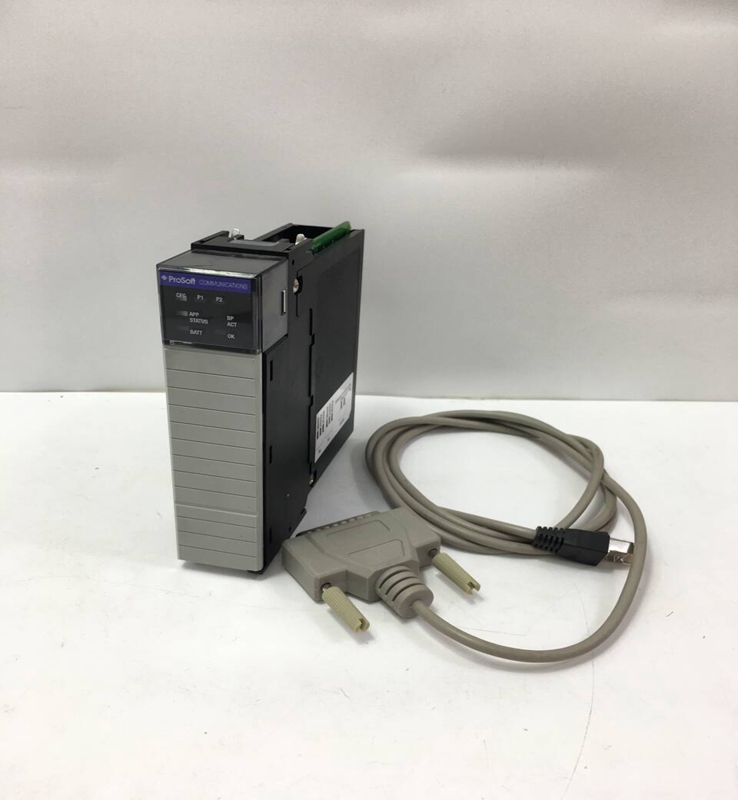

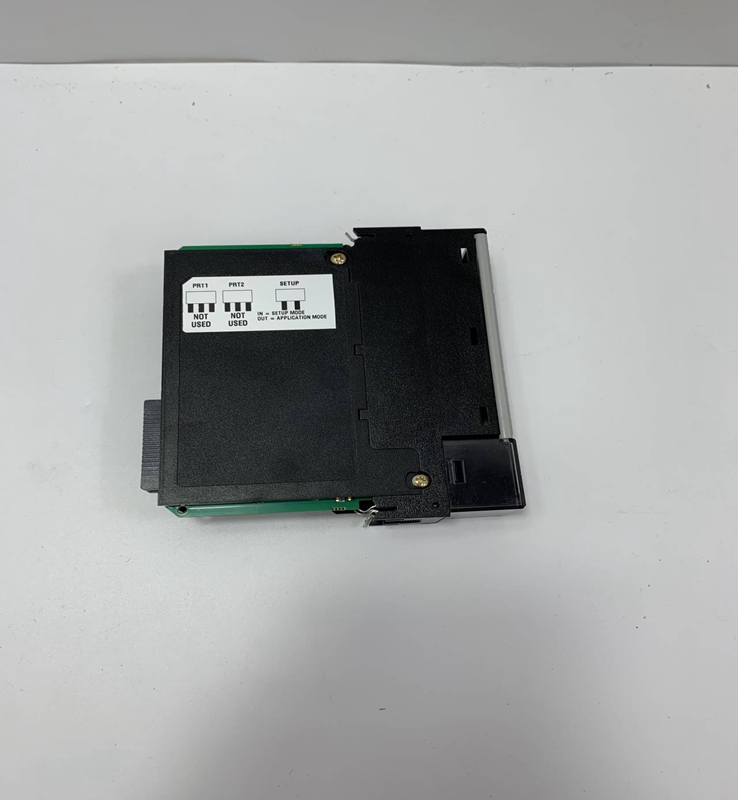

716-5100 PROSOFT

Product Dimensions：

The core purpose of a ProSoft Basis Unit is to provide the physical and electrical framework for a communication or specialty module. This includes a backplane interface to connect with a host controller (like a ControlLogix or CompactLogix processor), a power supply connection, and an enclosure to protect the internal electronics. The functional capabilities are determined by the specific module that is installed into or connected to the basis unit. A basis unit itself doesn't perform a control function; it's a foundation for a specific communication or application module.

• Functionality: A basis unit's primary role is to act as a carrier for a communication or processor module. It provides power, a physical connection to the backplane, and a housing. It enables the communication module to exchange data with the host PLC processor, allowing for seamless integration of devices using different protocols.

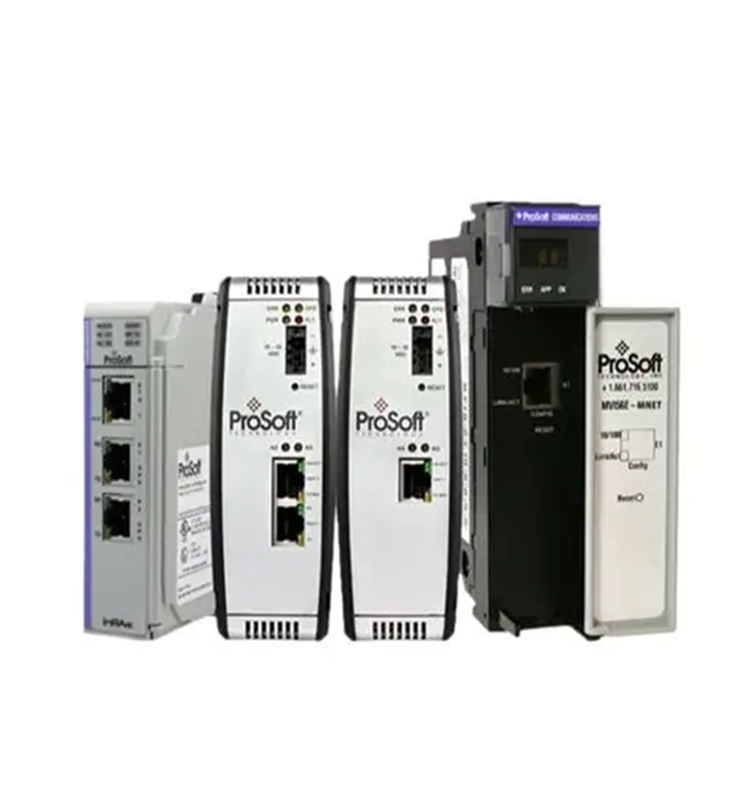

• Types: ProSoft offers a variety of basis units depending on the host platform. For example, there are in-chassis basis units that fit directly into a Rockwell Automation rack (e.g., ControlLogix or CompactLogix), as well as stand-alone, DIN-rail mounted gateway units. The specific part number and functionality are determined by the communication module it supports (e.g., Modbus, PROFIBUS, EtherNet/IP).

• Key Features:

• Backplane Connectivity: Provides a high-speed data path to the host controller's memory.

• Power Supply: Accepts a range of input voltages, typically 24V DC.

• Robust Enclosure: Designed for industrial environments, with ratings for temperature, shock, and vibration.

• LED Indicators: Visual cues for power, status, and communication activity.

• Configuration Port: A port (often serial) for connecting a PC to configure the module.

Product Parameters

The parameters of a basis unit are defined by its physical and electrical characteristics.

• Form Factor: Single-slot, in-chassis module compatible with a specific Rockwell Automation rack (e.g., 1756, 1769) or a DIN-rail mountable enclosure.

• Power Supply: Typically 24 VDC nominal, with an allowed range (e.g., 10-36 VDC).

• Current Load: Current drawn from the backplane and/or external power supply. For example, 800mA @ 5VDC from the backplane.

• Operating Temperature: A wide industrial temperature range, often from -25°C to 70°C.

• Relative Humidity: 5% to 95% RH, non-condensing.

• Shock/Vibration: Rated to withstand industrial levels of shock and vibration, compliant with standards like IEC 60068.

• Dimensions: Specific dimensions determined by the form factor and number of communication ports.

Product Advantages

The main advantage of using a ProSoft basis unit is its ability to provide a seamless, reliable bridge between different industrial networks.

• Simplified Integration: Allows dissimilar devices to communicate as if they were on the same network, simplifying system architecture and commissioning.

• Scalability: The modular design allows for adding communication capabilities as needed without replacing the entire control system.

• Centralized Control: By integrating into the host PLC's backplane, data from remote devices becomes available directly in the controller's memory, simplifying logic and data management.

• Reliability: Engineered for industrial use, these units are highly reliable and robust, ensuring continuous operation.

• Legacy System Support: ProSoft is well-known for providing solutions that allow modern controllers to interface with older, legacy protocols and devices, facilitating phased migration and upgrades.

Important Considerations

• Module Compatibility: The basis unit is only a shell; its functionality is entirely dependent on the specific communication or application module installed. Always ensure the basis unit and module are compatible with each other and with the host controller.

• Power Requirements: Verify that the power supply can handle the current draw of the module and all connected devices.

• Configuration: These modules require proper configuration using ProSoft's dedicated software tools. Incorrect setup can lead to communication errors or data loss.

• Network Design: The overall network architecture, including wiring, grounding, and protocol settings, must be carefully planned to ensure reliable communication.

• Firmware: Keep the module's firmware up to date to ensure the latest features, security patches, and bug fixes.

We have the same series of models in stock.  If you don't find the model you need, please contact us and we will provide you with an official quotation！

PROSOFT MVI56E-GSC

PROSOFT MVI46-MCM

PROSOFT MVI46-DFNT

PROSOFT MVI46-GEC

PROSOFT 5204-MNET-PDPMV1

PROSOFT MVI56E-MCMR

PROSOFT PLX31-MBTCP-MBS4

PROSOFT 716-5100

PROSOFT 5201-MNET-DFNT

PROSOFT MVI56-ADMNET

Colour：new                                   Warranty: 12 months

Lead Time：3-day working day      Price: Please contact us

Shipping Port: Xiamen, China         Payment:T/T

Express cooperation: fedex, DHL, UPS and your express account

Service: Professional Sales provides 24 hours /7 days online service
