XS4P18KP340 Telemecanique

XS4P18KP340 Telemecanique Programmable controller

Brand：Telemecanique Model number：XS4P18KP340

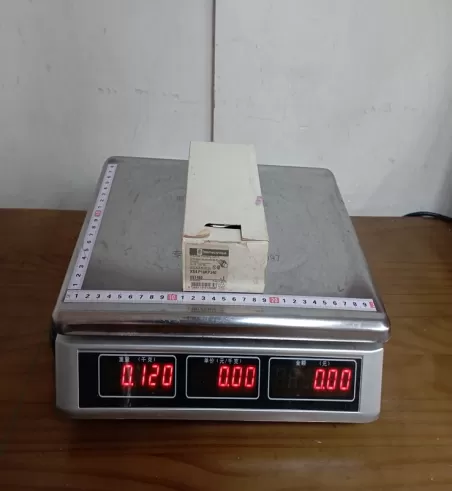

Country of origin: France Product weight：0.55kg

HS code：8517623990

Inquire Now

Product Details：

Product Dimensions：

The Telemecanique XS4P18KP340 is a specific model of Inductive Proximity Sensor manufactured by Schneider Electric (under the Telemecanique brand). These sensors are designed to detect the presence of metal objects without physical contact, making them essential components in industrial automation systems.

Product Specifications

Sensor Type: Inductive proximity sensor
Reference Name: XS4
Design: Cylindrical, M18 thread
Sensing Face: Flush mounting accepted (embedded)
Material: Plastic (P for Plastic)
Nominal Sensing Distance ( $S_n$ ): $5 \text{ mm}$
Output Type: Discrete (Switching)
Wiring Technique: 3-wire DC
Output Function: PNP (Positive-Negative-Positive), NO (Normally Open)
Electrical Connection: M12 connector, 4 pins
Rated Supply Voltage ( $U_b$ ): $12 \text{ to } 24 \text{ V DC}$ (with reverse polarity protection)
Switching Capacity: $\leq 200 \text{ mA}$ (with overload and short-circuit protection)
Switching Frequency: $\leq 1500 \text{ Hz}$
IP Degree of Protection: IP67 (Protection against dust and temporary immersion in water)
Vibration Resistance: $25 \text{ gn}$ (amplitude $2 \text{ mm}$ ) from $10 \text{ to } 55 \text{ Hz}$ conforming to IEC 60068-2-6.
Ambient Operating Temperature: $-25 \text{ to } 70 \text{ °C}$

Product Advantages

Non-Contact Detection: It detects metallic objects without touching them, minimizing wear and tear on the sensor and the target object, which leads to a longer service life and higher reliability.
Robust Construction: The plastic, M18 cylindrical housing provides good mechanical protection and resistance to harsh industrial environments, supported by an excellent IP67 rating.
Simplified Wiring: The M12 connector provides a quick, secure, and easily removable connection, which speeds up installation and maintenance.
High Switching Frequency: A switching frequency of up to $1500 \text{ Hz}$ allows for the reliable detection of fast-moving targets on high-speed machinery.
Direct PLC Interface: The PNP/NO output is standard for many modern Programmable Logic Controllers (PLCs), simplifying the electrical interface.
Integrated Protection: Built-in protection against reverse polarity, overload, and short-circuit helps prevent sensor damage from wiring errors or electrical faults.

Important Considerations (Precautions)

Sensing Distance Reduction: Although the nominal sensing distance ( $S_n$ ) is $5 \text{ mm}$ , this distance is determined using a standard target. The actual sensing distance will be reduced when detecting non-ferrous metals (e.g., aluminum, brass) due to the nature of the inductive principle.
Mounting: The sensor must be mounted flush (embedded) into a metal support. Care must be taken to maintain the required non-sensing zone around the active face to prevent interference from surrounding metal.
Magnetic Fields: Avoid installing the sensor near strong electromagnetic fields, as they can interfere with the sensor's operation.
Target Size: The target object must be larger than the standard square target specified for the sensor to achieve the nominal sensing distance.
Cleaning: While the sensor is robust, avoid using harsh chemical solvents for cleaning, as these may damage the plastic housing.
Wiring: Ensure the supply voltage is within the specified $12 \text{ to } 24 \text{ V DC}$ range and that the load current does not exceed the $\leq 200 \text{ mA}$ switching capacity.

Product Applications

The XS4P18KP340 is widely used in factory automation for presence and position detection tasks across various industries.

Conveyor Systems: Detecting the presence or position of packages, trays, or metallic components on conveyor belts.
Machine Tooling: End-of-travel detection for moving slides and axes, or verifying the correct clamping of tools.
Automated Assembly: Verifying the presence of small metal parts or ensuring components are correctly positioned before a process step.
Packaging Machinery: Counting metallic caps, cans, or activating processes based on object positioning.
Robotics: Sensing the position of grippers or robotic arm end effectors.
Counting and Speed Measurement: Providing pulses for high-speed counting applications or rotational speed measurement (though lower-frequency applications are more typical).
